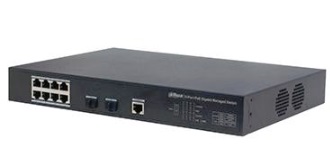

Accessories/Transmission/PFS4210 8GT 150

From Dahua Wiki

Jump to: navigation, search





  • Layer 2 Network Management PoE Switch
  • MAC Auto Sudy and Aging, 8K MAC Address List Capacity
  • Supports IEEE802.3af, IEEE802.3at Standards
  • Conforms to IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X Standards
  • Supports Command-line Interface


Ethernet Ports Eight (8) 10/100/1000 Base-T Ports (PoE Power Supply)
  Two (2) 1000 Base-X Ports
PoE Power Consumption Each Port: ≤ 30 W
  Total Power Consumption: ≤ 150 W
PoE Protocol PoE (IEEE802.3af), PoE+ (IEEE802.3at)
Switching Capacity 36 Gbps
Packet Forwarding Rate 14.88 Mpps
Packet Buffer Memory 4.1 MB
Power Requirements 100 VAC to 240 VAC
Working Temperature -10° C to 55° C (14° F to 131° F)
Application Humidity 10% to 90%
Lightning Protection Common Mode: 2 KV
  Differential Mode:500 V
Operating Temperature -10° C to 55° C (14° F to 131° F)
Dimensions (W x D x H) 330.0 mm x 230.0 mm x 44.0 mm
  (13.0 in. x 9.06 in. x 1.73 in.)
Weight 2.35 kg (5.18 lb)
System Username/Password: admin/admin
  IP Address:
PoE Budget 150 W
MAC Table Size 8K
VLAN 802.1Q
Port Aggregation Manual
Port Mirroring Many-to-One Port Mirroring
Flow Control Half-duplex based on back pressure type control
  Full Duplex based on PAUSE Frame
Multicast IGMP Snooping
Quality of Service Diff-Serv QoS
  Four (4) Output Queue, each port
  802.1p/DSCP Priority Mapping
Security Features Hardware Supports IP+MAC Binding based on port
  IP Source Address Protection
  ARP Detection
System Maintenance Configuration file upload/download
  Updated packet upload
  System logs
Network Management Web (HTTP protocol)
