ConfigTool Template Setup

Description

You can create and apply the templates.

  • Creating the template: Back up or save the video and encoding parameters for the device.
  • Applying the template: Restore or batch configuring the video and encoding parameters for the device.

Please Note:

These instructions do not copy the network settings or email notifications.

Template Import/Export will work only between identical model devices

Prerequisites

For this example we will be using the following:

  • 2x N41BK22s on DH_IPC-HX2X3X-Rhea_MultiLang_NP_Stream2_V2.800.0000008.0.R.190619
  • ConfigTool Version V4.011.00GP001.0 from the Dahua ToolBox



Notes:

  • N41BK22s on Firmware Version: 2.622.0000000.31.R Build Date: 2018-08-13 -DID NOT WORK, UPDATING BOTH IPCs to latest current fw and trying again

Template Examples

Video Instructions

Export Device Config

Import Device Config

Step by Step Instructions

Export Device Config

1. Launch Toolbox, and login.

2. Download and install ConfigTool.

3. Launch ConfigTool.

4. Click Search Setting at the top of the window

ConfigTool - Template Setup - Import 000.jpg

5. Enter the credentials (username and password) for the device, then click OK

ConfigTool - Template Setup - Import 001.jpg

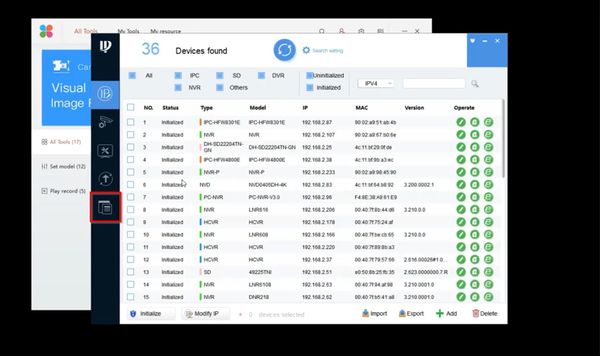

6. Click on the icon at the bottom of the bar on the left hand side of ConfigTool.

ConfigTool - Template Setup 2.jpg

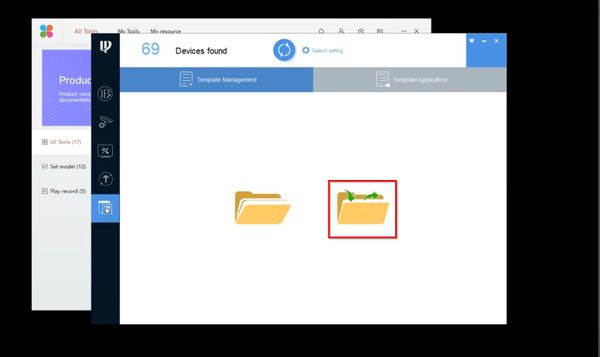

7. Click on the Folder icon with the two green arrows.

ConfigTool - Template Setup 3.jpg

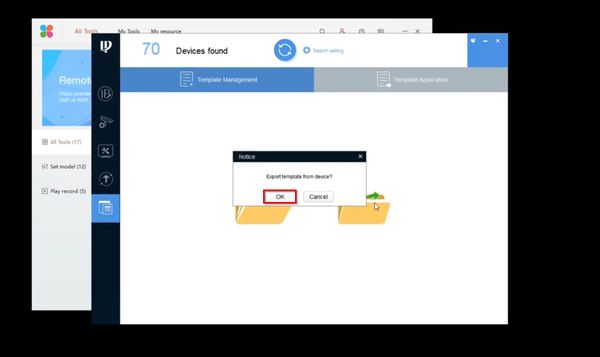

8. A prompt will pop up asking, "Export template from device?" click, "OK"

ConfigTool - Template Setup 4.jpg

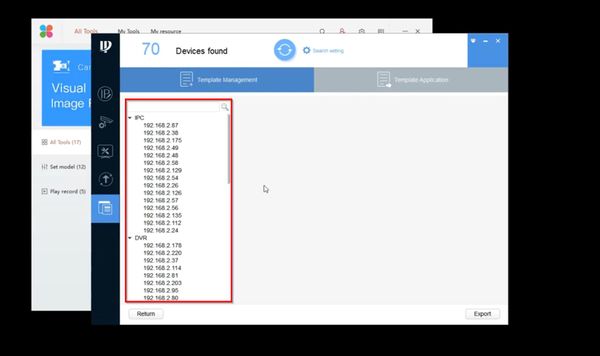

9. Locate the device you want to export the configuration of in the device list, and left click on it.

ConfigTool - Template Setup 5.jpg

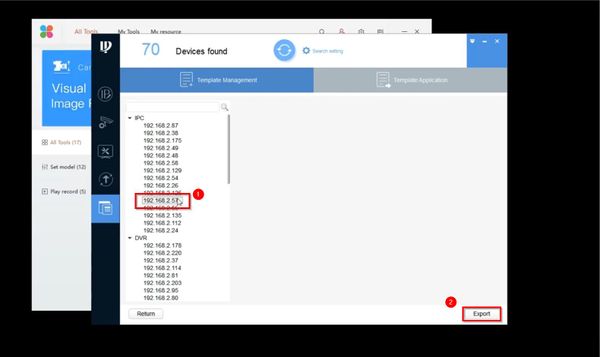

10. Click, "Export"

ConfigTool - Template Setup 6.jpg

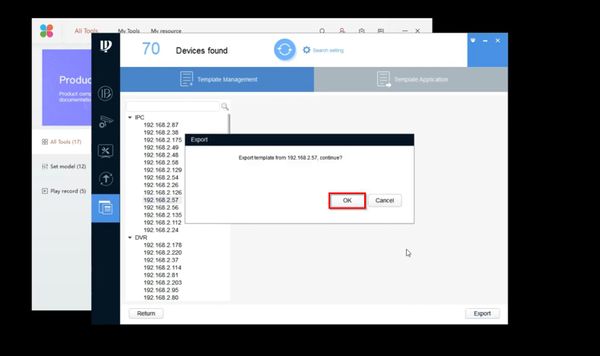

11. A prompt will pop up asking, "Export template from (IP Address of Device Selected), continue? Click, "OK"

ConfigTool - Template Setup 7.jpg

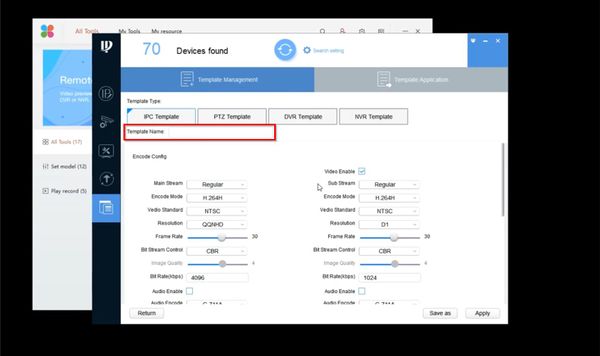

12. Input a name into "Template Name"

ConfigTool - Template Setup 8.jpg

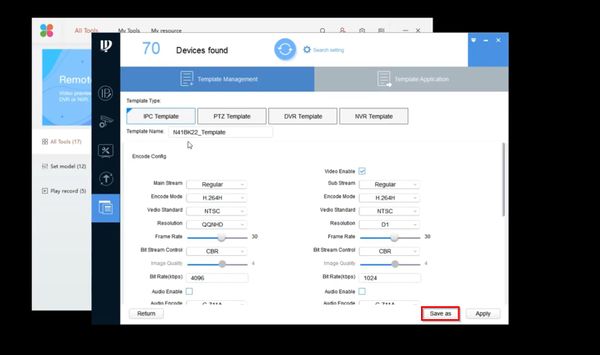

13. Click, "Save as"

ConfigTool - Template Setup 9.jpg

At this point ConfigTool crashed. I relaunched ConfigTool, and get, "Export Template Failed"

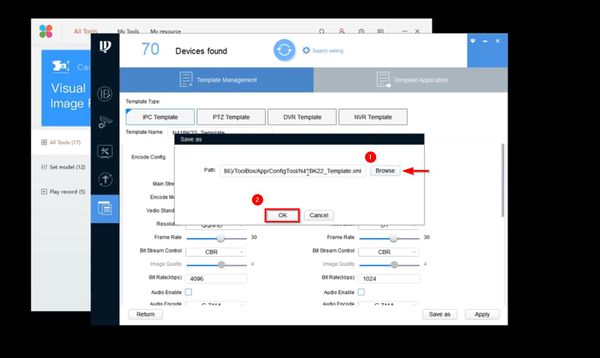

14. A prompt will pop up asking where you would like to save the file. Select where you would like to save the file, and click, "OK"

ConfigTool - Template Setup 10.jpg

Import Device Config

1. Launch Toolbox, and login.

2. Download and install ConfigTool.

3. Launch ConfigTool.

4. Click Search Setting at the top of the window

ConfigTool - Template Setup - Import 000.jpg

5. Enter the credentials (username and password) for the device, then click OK

ConfigTool - Template Setup - Import 001.jpg

6. Click on the icon at the bottom of the bar on the left hand side of ConfigTool.

ConfigTool - Template Setup - Import 1.jpg

7. Click on the Folder icon without the two green arrows.

ConfigTool - Template Setup - Import 2.jpg

8. A window will pop up, click, "Browse" and locate the Device Template file you backed up in the previous instructions.

ConfigTool - Template Setup - Import 3.jpg

9. Click on the Device Template file, then click, "Open"

ConfigTool - Template Setup - Import 4.jpg

10. Click, "OK"

ConfigTool - Template Setup - Import 5.jpg

11. The template settings should load and display in ConfigTool. Verify that all the settings are correct.

ConfigTool - Template Setup - Import 6.jpg

12. Click, "Template Application"

ConfigTool - Template Setup - Import 7.jpg

13. A window will pop up stating, "The file exists, do you want to overwrite it?" select, "OK"

ConfigTool - Template Setup - Import 8.jpg

14. Expand the dropdown box on the right hand side to list all the devices.

ConfigTool - Template Setup - Import 9.jpg

15. Check the box next to the device you wish to apply the template.

ConfigTool - Template Setup - Import 10.jpg

16. Click, "OK"

ConfigTool - Template Setup - Import 11.jpg

17. A window will pop up stating, "Configure 1 device(s) using template "C:/ProgramFiles/Toolsbox/Template_Name.xml" click, "OK"

ConfigTool - Template Setup - Import 12.jpg


A green check mark will confirm a successful import

ConfigTool - Template Setup - Import 13.jpg


NOTE: A yellow exclamation icon will display next to a device when there is an issue with the import.

Click the icon to obtain more details about which setting(s) were not successfully imported


ConfigTool - Template Setup - Import 13-error.jpg

ConfigTool - Template Setup - Import 14.jpg
