DH PLZ1140 D

DH-PLZ1140-D

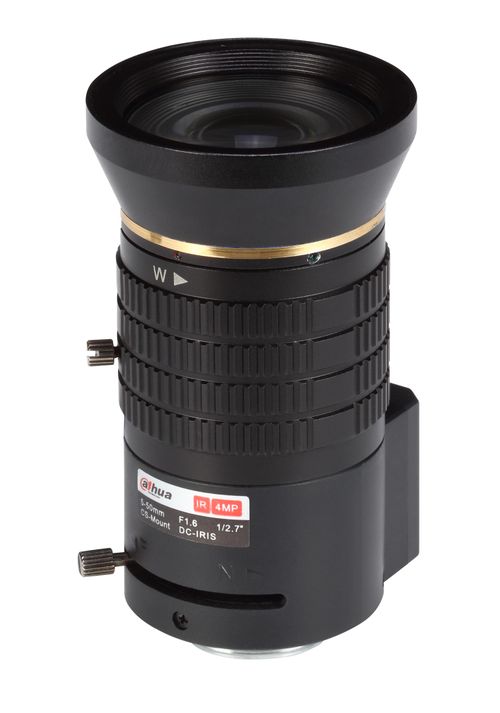

DH PLZ1140 D.jpg



Features

  • Image Format: 1/2.7-in.
  • Focal Length: 5 mm to 50 mm
  • Lens Pixel: 4 MP
  • Aperture: F1.6
  • Field Angle: W: 70° x 50° x 37.5°, T: 7° x 5.6° x 4.2°
  • M.O.D.: 1 m
  • TV Distortion: < -15.1%
  • IR Correction: Yes
  • Lens Control
  • Focus: Manual
  • Zoom: Manual
  • Iris: DC-Iris
  • Mount: CS
  • Dimension: ø47.0 mm x 85.90 mm (ø1.85 in. x 3.38 in.)
  • Weight:195 g (0.43 lb)
  • Operating Temperature: -30°C to +70°C (-22° F to 158° F), < 90% RH

Specifications

Model DH-PLZ1140-D
Parameter
Image format 1/2.7”
Focal length 5-50mm
Lens pixel 4MP
Aperture F1.6
Field Angle(D*H*V) 1/2.7 W: 70°(D)x50°(H)x37.5°(V)~T: 7°(D)x5.6°(H)x4.2°(V)
1/3" W: 52°(D)x41.6°(H)x31.2°(V)~T: 6.4°(D)x5.1°(H)x3.8°(V)
M.O.D. 1m
TV Distortion <-15.1%
IR Correction Yes
Lens Control Focus Manual
Zoom Manual
Iris DC-Iris
Mount CS
Dimension ∅47x85.9mm
Weight 195g
Operating temperature -30ºC~+70ºC
Humidity <90% RH
