DSS/DSS Express Std Ver

Video Management System - DSS Express - Standard Version

Specifications Manual DSS Server download Link Version Number
V1.000.10GP002.0.R.20210114

Description

The DSS Express Video Management System is a powerful, all-in-one video surveillance management software for system scalability and reliability. The DSS Express supports up to 256 network cameras and 256 Video Intercom devices, with the ability to integrate multiple access or video intercom devices.

DSS Express provides user rights management, device management, alarm management, video wall output, and two-way audio. In addition to these VMS features, DSS Express offers advanced features, and robust event management controls.

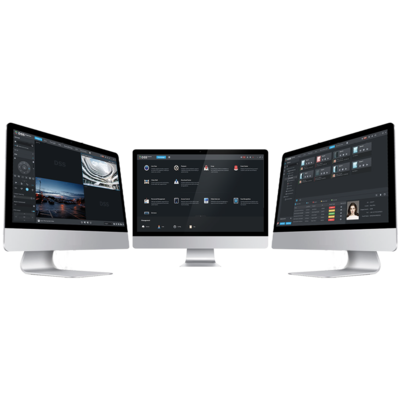

DSS Express Computers image WEB.png

Features

  • Digital Surveillance System Express Video Management System
  • Supports up to 256 IP Cameras
  • Supports up to 256 Video Intercom Devices
  • Maximum Video Input Bandwidth Per Server: 350Mbps
  • Maximum Video Output Bandwidth Per Server: 350Mbps
  • Integrates All Management Functions into One Client
  • Allows Device Initialization and Management
  • Live Video Playback from Edge Device
  • Supports Access Control and Video Intercom Integration
  • Configure Video Wall Layout and Scheme
  • Offers Fisheye Camera Dewarping on Live View
  • Allow simultaneous online user up to 10 users/ clients.

Requirements

Hardware for Server

CPU Intel® Xeon® CPU E3-1220 v5 @3.00GHz
Memory 16GB
System Disk at least 500 GB
Ethernet port Four (4) 1000 Mbps Ethernet Ports

CPU Intel® Core™ i3-2120
Memory 8GB
System Disk at least 200 GB
Ethernet port Two (2) 1000 Mbps Ethernet Ports

Supported OS Windows Server 2008 Standard

Windows Server 2012 R2 Standard
Windows Server 2016 Standard
VMware ESXI 6.0 (Windows Server 2008 Standard)
VMware ESXI 6.0 (Windows Server 2012 R2
Standard)
VMware ESXI 6.0 (Windows Server 2019 Standard)
Windows 7 (64-bit)
Windows 10 (64-bit)

Hardware for Control Client

CPU Intel® Core™ i5-6500 @ 3.20GHz
Memory 8GB
Graphics Card Intel® HD Graphics 530
Hard Drive Capacity 100 GB free space for DSS Control Client
Ethernet port One (1) 1000 Mbps Ethernet Port

CPU Intel® Core™ i3-2120 @ 3.30GHz
Memory 4GB
Graphics Card Intel® HD Sandbridge Desktop Graphics
Hard Drive Capacity 50 GB free space for DSS Control Client
Ethernet port One (1) 1000 Mbps Ethernet Port

Supported OS Windows Server 2008 Standard

Windows Server 2012 R2 Standard
Windows Server 2016 Standard
VMware ESXI 6.0 (Windows Server 2008 Standard)
VMware ESXI 6.0 (Windows Server 2012 R2
Standard)
VMware ESXI 6.0 (Windows Server 2019 Standard)
Windows 7 (64-bit)
Windows 10 (64-bit)
