Motion detect recording on DSS

Step by Step Instruction

DSS Express Computers image WEB.png DSS Express

==Description==

This article will show you haw to allocate storage from you PC drive to record Motion Events from a camera.

Steps:
1. Setup camera and enable Motion Detection
2. Setup DSS Express by allocating Storage. Adding the camera and enabling the MD event

Prerequisites

  • DSS Express
  • Camera with Motion Detection capabilities

Video Instructions

Step by Step Instructions

Camera Setup

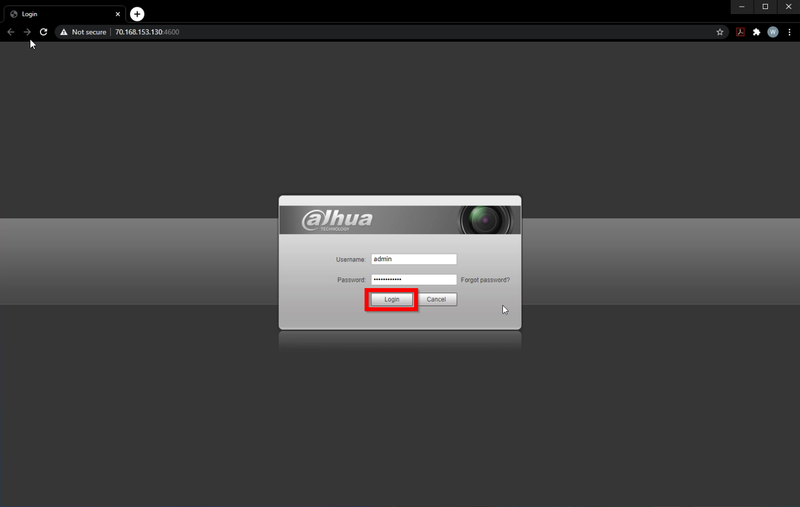

1. Login to the Camera's WEBUI

How to setup Motion Recording on DSS Express-1.png

2. Go to "Settings"

How to setup Motion Recording on DSS Express-2.png

3. Navigate to Event>Video Detection and stay on the Motion Detection
Make sure Enable is checked along with Record and Snapshot

How to setup Motion Recording on DSS Express-3.png

4. To configure the areas you want to detect motion click on "Setting" next to Area

How to setup Motion Recording on DSS Express-4.png

5. Everything highlighted red will detect motion.
To disable areas click and hold the grid squares to make them transparent
Click on Save to confirm the changes

How to setup Motion Recording on DSS Express-5.png

6. Click on Save to finalize the configuration

How to setup Motion Recording on DSS Express-6.png

DSS Express Setup

1. Now we need to Allocate Storage space on your drive. Go to Config

How to setup Motion Recording on DSS Express-7.png

2. Be sure to select Server on the top left to load the config settings and then go to Storage

How to setup Motion Recording on DSS Express-8.png

3. Click on the paintprush icon to start the allocation process
Type in the storage you'd like to allocate (10GB Minimum)
Click on the check mark to finalize, wait for the allocation to be completed

How to setup Motion Recording on DSS Express-9.png

4. If you like to store pictures as well, select the drop down menu and allocate memory for General Picture

How to setup Motion Recording on DSS Express-10.png

5. Now that the Allocation is done open a new page and go to Device to add the camera to DSS Express

How to setup Motion Recording on DSS Express-11.png

6. Click on Add and enter the camera's credentials. Finalize the entry by clicking on the blue Add

How to setup Motion Recording on DSS Express-12.png

7. You should now see the camera entry

How to setup Motion Recording on DSS Express-13.png

8. Go back to the Config tab and click the camera's drop-down menu and select the camera.

Go to Event Configuration

How to setup Motion Recording on DSS Express-14.png

9. Select Motion Detection and enable the event.
Select the Link Video tab. Click and drag the camera video stream over to the live view entry.
Click on Apply and OK when completed

How to setup Motion Recording on DSS Express-15.png

10. The event entry should look like this once completed

How to setup Motion Recording on DSS Express-16.png

DSS Pro Image Web.png DSS Pro

Setup record schedule to only record on motion

Description

This article is to show how to setup DSS to only record on motion.

Prerequisites

  • DSS Pro Hardware or Software
  • Device added to DSS Pro

Notes: If you are using third-party cameras, please note that

Video Instruction

coming soon

Step by Step Instruction

1. Locate DSS Pro web manager and login with the admin credential.

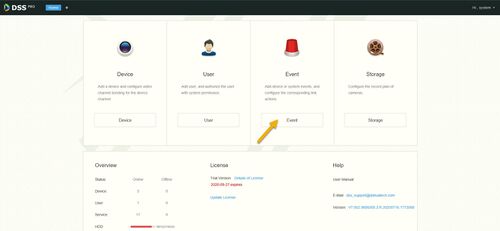

2. Click on Event.

500px

3. Click on Add.

500px

4. Under Alarm Type, Click on Video Channel.

5. Click checkmark on Motion Detect.

6. Under Alarm Source, select the device that you would like to assign for motion only recording.

500px

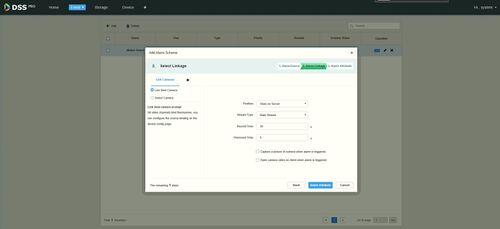

7. Click on Alarm Linkage.

500px

8. Click on Link Actions, and then click on Link Cameras.

9. Set the record time and also prerecord time.

 Notes: there is two additional option here that you can enable. First, you can capture a picture when alarm is triggered. And second, you can get pop-up video when alarm is triggered (require to Link User to specify which user getting video pop-up).

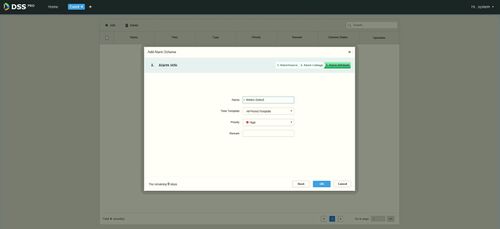

10. Click on Alarm Attribute.

11. Enter Alarm info name. in this tutorial, we name it Motion Detect.

500px

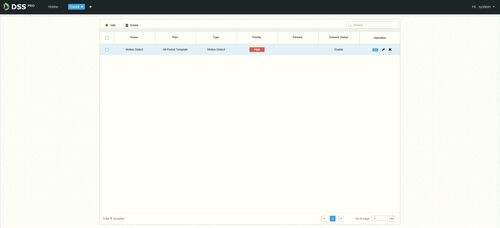

12. Click Ok to save the settings.

500px
