Heatmap In DSS Client

Description

This article will show you how to use Heatmap in DSS Client

Heatmap displays the distribution of moving objects in colors of different shades. It reflects the range of activity regions by different colors, for example, red means the activity is relatively high and blue means the activity is relatively low

Note: The device sends heat map data to the platform on a real-time basis. You can search uploaded heat map data starting from the time the device was added to the server

Prerequisites

  • DSS
  • DSS Client
  • Dahua device that supports Heatmap added to DSS Server
  • Heatmap data (see Note above in Description)

Video Instructions

Coming Soon

Step by Step Instructions

1. Launch and Log in to DSS Client

DSS Client Log In.jpg

2. Click Flow Analysis

People Counting Report - DSS Client - 1.jpg

3. Hover the mouse towards the left side of the screen over heatmap icon.jpg icon until the menu expands

Heatmap - DSS Client - 1.jpg

4. Devices that support the Heatmap feature that have been added to DSS will automatically appear in the Resources tree menu

Check the box next to the device you wish to query Dwell Time data from

Heatmap - DSS Client - 2.jpg

5. Use the drop down boxes in the lower left of the screen to select a date range to search

Heatmap - DSS Client - 3.jpg

Click Search

6. A message will display while the heatmap is generated

Heatmap - DSS Client - 4.jpg

7. The heatmap data will be displayed in the center of the screen

Heatmap - DSS Client - 5.jpg

8. To export the heatmap data as a BMP image click Export in the top right of the screen

Heatmap - DSS Client - 6.jpg

9. A window will appear asking where to save the report. Click Save

Heatmap - DSS Client - 7.jpg

10. A prompt will appear when export is successful

Heatmap - DSS Client - 8.jpg

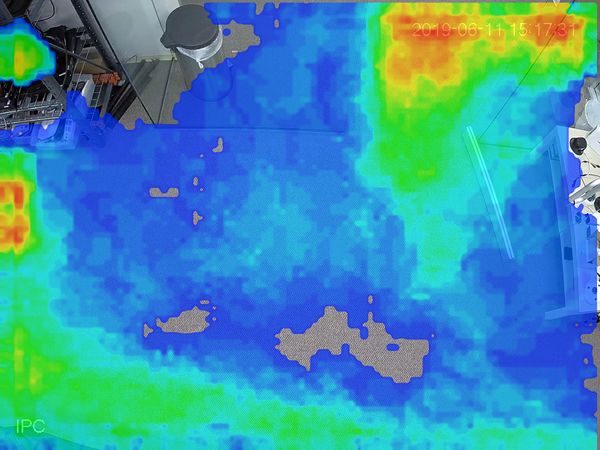

Heatmap sample export:

Heatmap IPC 20190611000000 20190611235959.jpg
