How To Generate A People Counting Report In DSS Client

Description

This article will show you how to generate a People Counting Report in DSS Client

The data report is formed by searching entry and exit values from supported devices added to DSS that support the People Counting feature.

Prerequisites

  • DSS
  • Computer connected to the same local network / network segment as the server. The default IP address of the server is 192.168.1.108
  • Dahua device that supports People Counting added to DSS Server

Video Instructions

Coming Soon

Step by Step Instructions

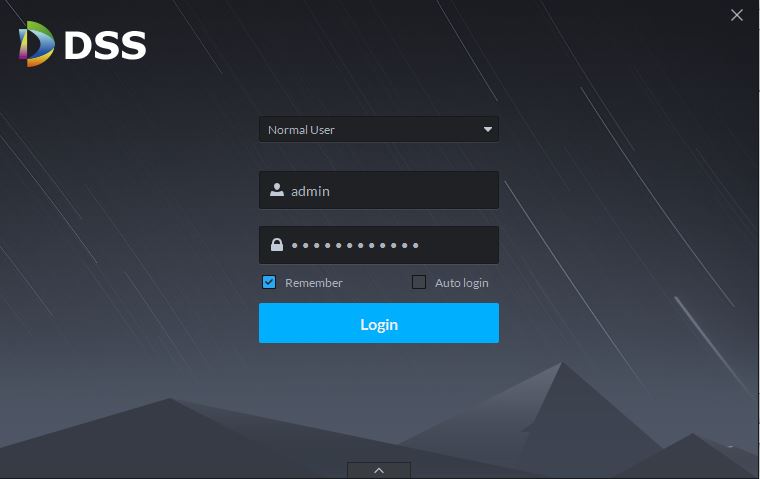

1. Launch and Log in to DSS Client

DSS Client Log In.jpg

2. Click Flow Analysis

People Counting Report - DSS Client - 1.jpg

2. Hover the mouse towards the left side of the screen over the People Counting Report icon.jpg icon until the menu expands

People Counting Report - DSS Client - 2.jpg


3. Click People Counting

People Counting Report - DSS Client - 3.jpg


4. Devices that support the People Counting feature that have been added to DSS will automatically appear in the Resources tree menu

Check the box next to the device you wish to query People Counting data from

People Counting Report - DSS Client - 4.jpg

5. Use the drop down boxes in the lower left of the screen to adjust search parameters

People Counting Report - DSS Client - 5.jpg

Click Search

6. The data will be displayed in the center of the screen

People Counting Report - DSS Client - 6.jpg

7. Hovering over the graph will give more information on the data

People Counting Report - DSS Client - 7.5.jpg

8. To change the report display type use the people counting report display options.jpg icons to choose from Bar, Line Chart, or List

People Counting Report - DSS Client - 7 .jpg

Line Chart Example:

People Counting Report - DSS Client - 8.jpg

9. To export the data in PDF form click Export on the right side of the screen

People Counting Report - DSS Client - 9.jpg

10. A window will appear asking where to save the report. Click Save

People Counting Report - DSS Client - 10.jpg

11. A prompt will appear when export is successful

People Counting Report - DSS Client - 11.jpg

Either icon in the prompt can be clicked to open the directory the file was saved to or the file itself


People Counting Report sample export:

People Counting Report - DSS Client - Example.jpg
