Encoder Decoder/NVD1505DH 4I 4K

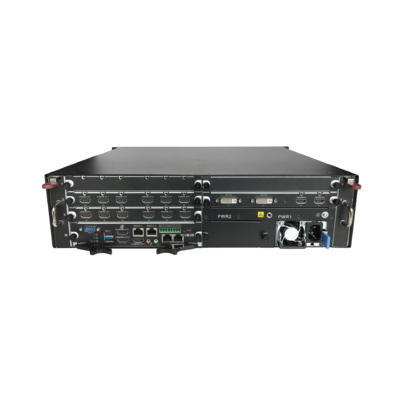

NVD1505DH-4I-4K


Features

  • Standard 2.5U case, elegant appearence
  • Plug-in board design, easy to use and maintain
  • H.265/H.264/MJPEG/MPEG4/MPEG2 video decoding
  • Ultra-high decoding ability, up to 12 Megapixels
  • 2ch HDMI and 2ch DVI-I input, support 4K collection(HDMI)
  • Support 1/4/9/16 display split
  • Support audio, alarm, bi-directional talk, RS485
  • Splicing screens control for zoom/merge/roam/overlay
  • Support redundant power, stable and reliable

Specifications

System

Processor

Intel Embedded processor

Operating System

LINUX

Slot

1 Main board, 2 Decoding board(6CH), 1 Collection board,

2 Blank panel

Performance

Video Format

H.265/H.264/MPEG2/MJPEG

Audio Format

PCM/G711/AAC

Decoding Capacity Separately

Port1,2,3

Port4,5,6

Port7,8,9

Port10,11,12

Port 13,14,15

3CH@12MP/3CH@4K/5CH@5MP/8CH@3MP/12CH@1080P/

27CH@720P/48CH@D1

Total Video Decoding

15CH@12MP/15CH@4K/25CH@5MP/40CH@3MP/60CH@1080P/135CH@720P/240CH@D1

Decoding Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080P/720P/960H/D1/HD1/2CIF/CIF/QCIF

Video Output

15ch HDMI

Display Resolution

3840×2160/2560×1600/1920×1080/1280×1024/1280×720/1024×768

Video Input

2 HDMI, 2 DVI-I

Collection Resolution

3840×2160/1920×1080/1600×1200/1680×1050/1440×900/1400×1050/1366×768/1280×1024/1280×960/1280×800/1280×720/1152×864/1024×768/800×600, etc

Audio Output

15ch HDMI

Bi-directional Talk

1 Pair 3.5mm jack (2.0V Line in/50mV Mic in/10KΩ, 2.0V/16Ω out)

Alarm Input/Output

2CH/1CH(30V DC 1A, 125V AC 0.5A)

Communication Interface

2 RJ45 network port (10M/100M/1000M)

RS232

3 (1 DB9, 2 RJ45)

USB

3 (2 USB3.0, 1 USB2.0)

RS485

1

Others

Power Supply

AC100-127V, 200-240V, 47Hz-63Hz

Power Consumption

≤180W

Working Temperature

-10~+55℃

Working Humidity

10% ~ 95%, 86Kpa ~ 106Kpa

Unit Dimension

2.5U, 440mm×436.6mm×110mm(W*D*H)

Weight

15kg
