FAQ/Use USB Wifi Adapter

How to Use Wifi USB Adapter with Dahua Recorder

Warning!

A USB Wifi adapter that works on a Dahua NVR might not necessarily work on a Dahua DVR or XVR, and vice-versa.

Example: Take a working USB Wifi Adapter from a NVR4xxx-4k and plug it into a X72. USB Wifi adapter works 100% on the NVR4xxx-4K, but doesnt work on the X72.

Description

This should only be used with a limited number of cameras due to wireless bandwidth limitations. Be sure to keep the bit rate below what the USB Wifi adapter can handle.


NOTE Not all USB Wifi Adapters are compatible with Dahua recorders. Not all Dahua recorders have the WiFi option. Please ensure your device meets the Prerequisites before attempting to complete these instructions. Usually a USB adapter that is compatible with Raspberry Pi devices will work with Dahua recorders.

Prerequisites

  • Dahua NVR or DVR with Wifi section visible under, "Network"

How to Use USB Wifi Adapter1.png

  • USB Wifi Adapter-Raspberry Pi 150M USB WiFi Wireless Adapter LAN w/Antenna Ralink RTL8188CU Chip

How to Use USB Wifi Adapter2.JPG

Video Instructions

Step by Step Instructions

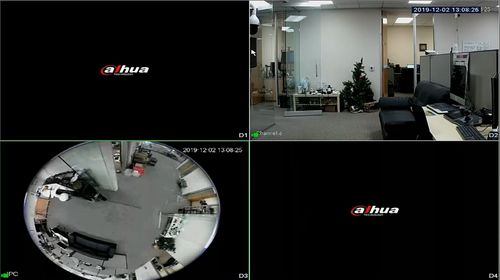

1. Plug in the USB Wifi Adapter

Go to Live View

USB Wifi Adapter - 1.jpg

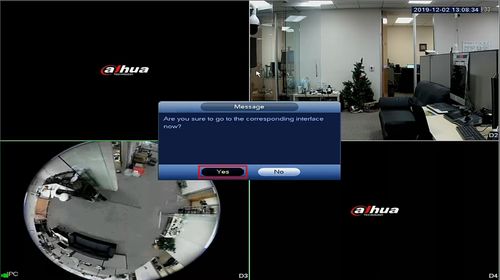

At the Live View a prompt will appear when the USB Wifi Adapter is recognized by the system

Click Yes

USB Wifi Adapter - 2.jpg

2. The WiFi interface will appear

Check the box to enable

USB Wifi Adapter - 3.jpg

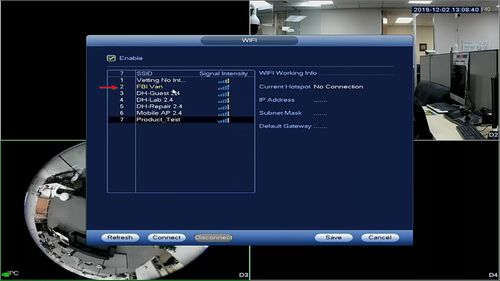

3. A list of discovered wireless networks will appear

Double click a network in the list to select and configure

USB Wifi Adapter - 4.jpg

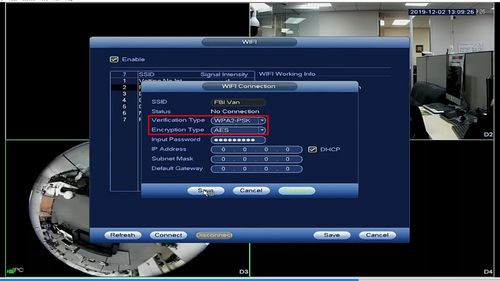

4. Select the Verification and Encryption type of the WiFi network using the dropdown boxes

USB Wifi Adapter - 4-1.jpg

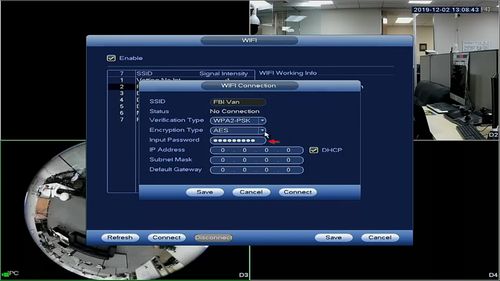

5. Click the field next to 'Input Password' and enter the password for the network

USB Wifi Adapter - 5.jpg

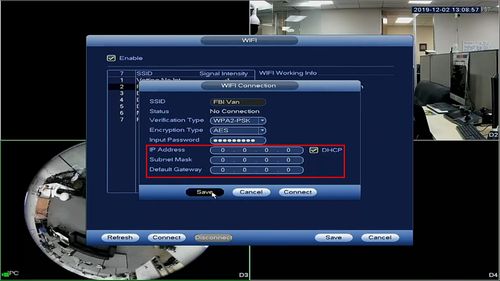

6. Use the parameters to set the connection type to the network, either DHCP or enter a static IP for the device

USB Wifi Adapter - 6.jpg

7. Click Save

Click Connect

USB Wifi Adapter - 7.jpg

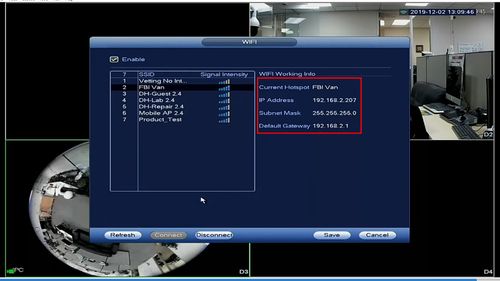

8. Once the device is connected to the network the device's network information will be listed in the menu:

USB Wifi Adapter - 8.jpg
