IPCamera/Setup HTTPS

How to Setup HTTPS (SSL)

NOTE: Before you create certificate or download certificate, from main window->Setup->Network->Connection, set HTTPS port value and then check the box to enable HTTPS function. In this interface, you can set to make sure the PC can successfully login via the HTTPS. It is to guarantee communication data security. The reliable and stable technology can secure the user information security and device safety.

Description

This guide will show you how to setup HTTPS access on a Dahua IP Camera

Prerequisites

  • Dahua IP Camera
  • PC

Step by Step Instructions

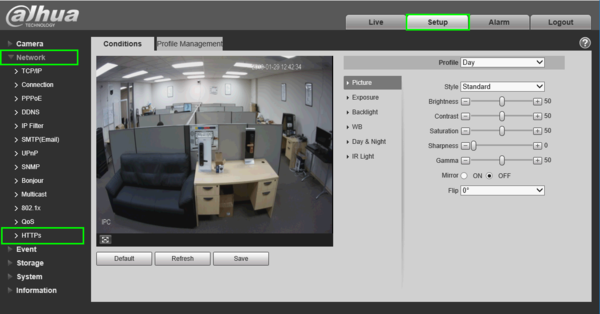

1. Login to the web interface of your IP Camera, then navigate to, Setup -> Network -> HTTPS

HTTPS Setup1.png

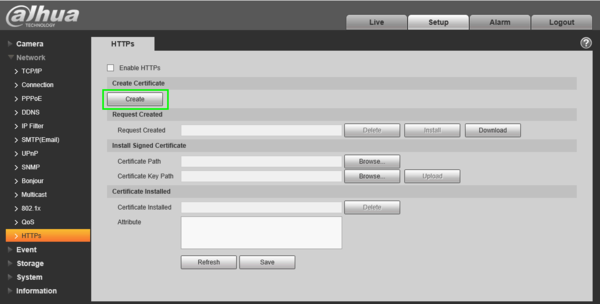

2. Click, "Create"

HTTPS Setup2.png

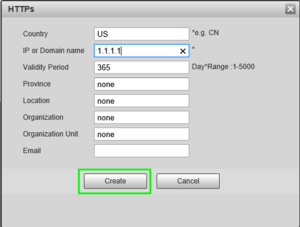

3. Input your networks WAN IP address, Country, and click, "Create"

HTTPS Setup3.png -> HTTPS Setup4.png

4. Click, "Download"

HTTPS Setup4.1.png

5. Choose where you wish to save the certificate, and click save.

HTTPS Setup5.png

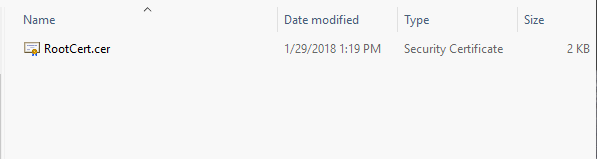

6. Open file browser, and locate certificate. Double click on the certificate icon.

HTTPS Setup6.png

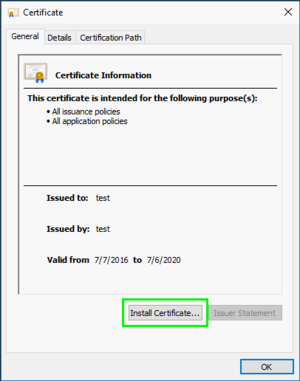

7. Click, "Install Certificate"

HTTPS Setup7.png

8. Click, "Next"

HTTPS Setup8.png

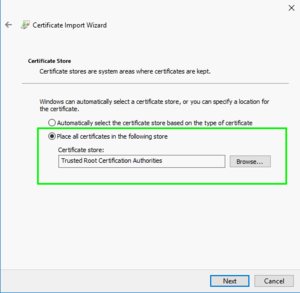

9. Select, "Place all certificates in the following store" and click, "Browse" then select, "Trusted Root Certification Authorities" and click, "Next"

HTTPS Setup9.png

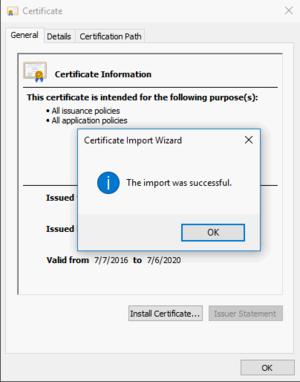

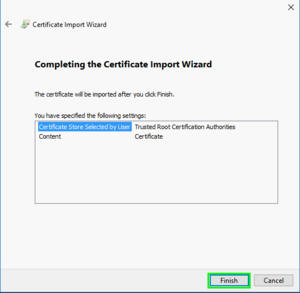

10. Click, "Finish"

HTTPS Setup10.png -> HTTPS Setup11.png

11. Back on the IP camera, click, "Install" and then, "Save"

HTTPS Setup12.png

12. Check the box, to enable HTTPS, and click, "Save"

HTTPS Setup13.png

13. HTTPS will be enabled once the camera has finished rebooting.

HTTPS Setup14.png

Note: Don't forget to forward port 443 to use this feature remotely.
