IVS2.0:SmartPSS1.16/PTZ IVS Auto Tracking

How to Setup Auto-Tracking in SmartPSS

Description

This article will show you how to setup PTZ Auto-Tracking in SmartPSS 2.0

Prerequisites

  • Dahua PTZ with Auto-Tracking
  • SmartPSS
  • Dahua PTZ with Auto-Tracking added to SmartPSS

Video Instructions

Step by Step Instructions

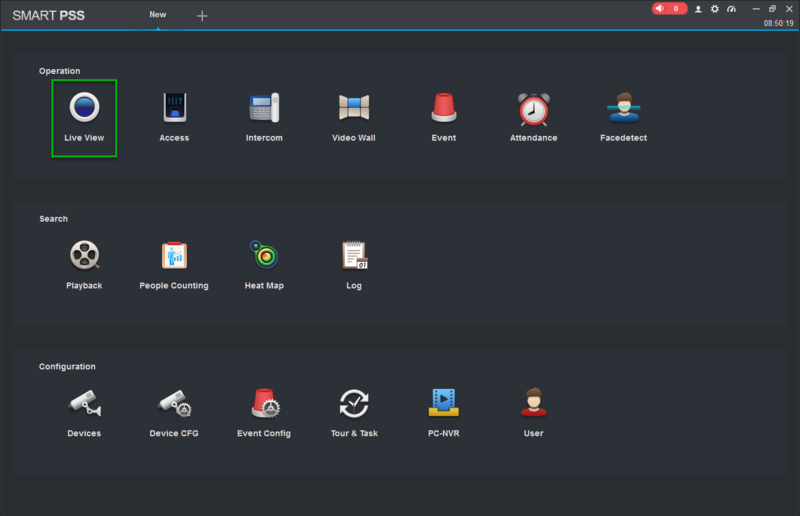

1. Launch SmartPSS, and click, "Live View"

Auto Track SmartPSS-2 1.png

2. Locate the Dahua PTZ in the device tree, right click on the device, and click, "IVS Channel Cfg"

Auto Track SmartPSS-2 2.png

3. A window will pop up, from here you can move the PTZ around, and establish Pre-Sets. IVS rules are all based on established Pre-Sets first. Once you have the PTZ in the desired position click, "Add Scene"

Auto Track SmartPSS-2 3.png

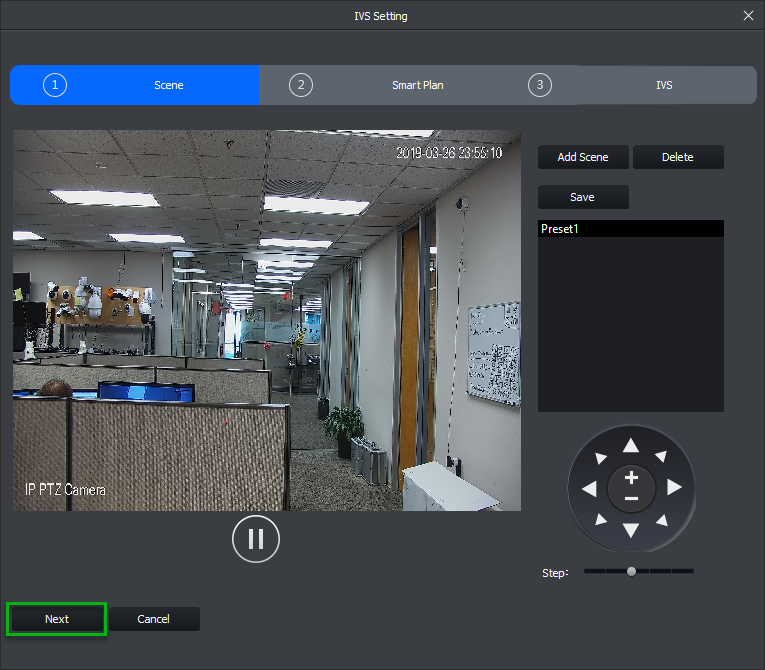

4. Click, "Next" to proceed to the next step.

Auto Track SmartPSS-2 4.png

5. Select one of the IVS options. For these instructions we will select the first icon for, "IVS"

Auto Track SmartPSS-2 5.png

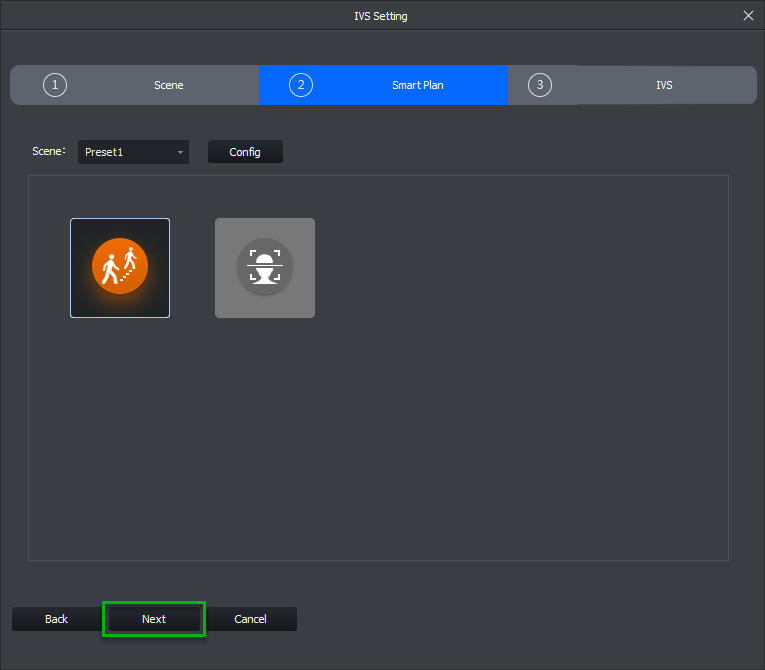

6. Click, "Next" to proceed to the next step.

Auto Track SmartPSS-2 6.png

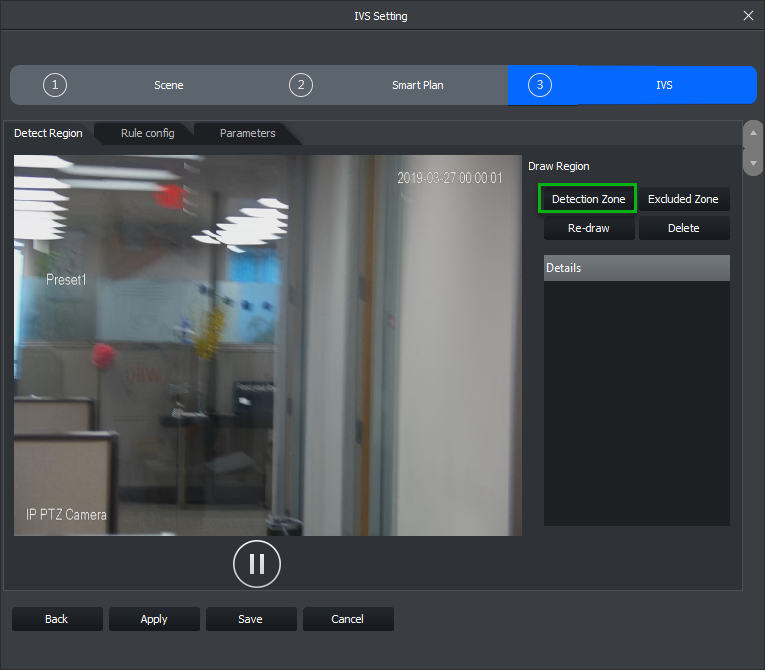

7. On this page you can configure the Detection zone for this IVS rule. Click, "Detection Zone"

Auto Track SmartPSS-2 7.png

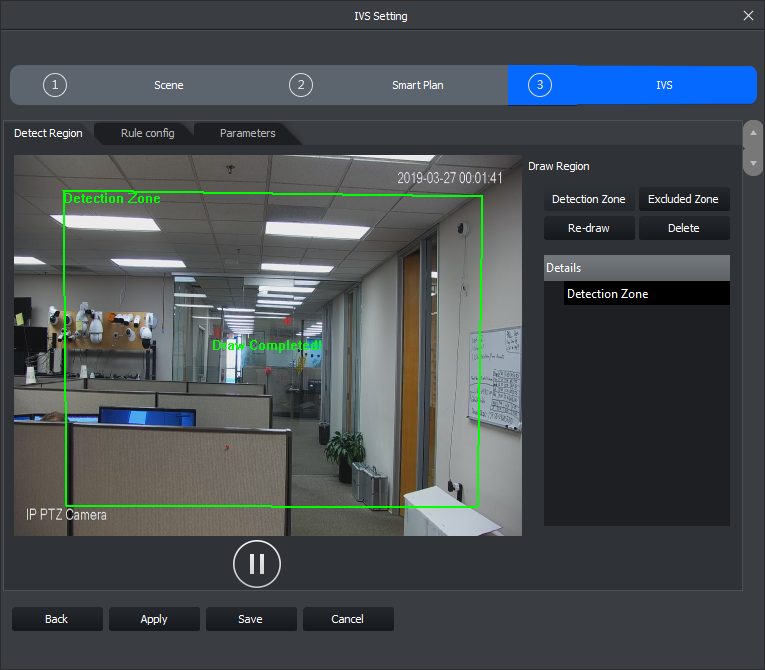

8. Draw a rectangle around the region you wish to establish as the Detection Zone. Add a new line with Left-Click, and complete drawing the region with Right-Click.

Auto Track SmartPSS-2 8.png

9. Click, "Apply" to save the Detection Region.

Auto Track SmartPSS-2 9.png

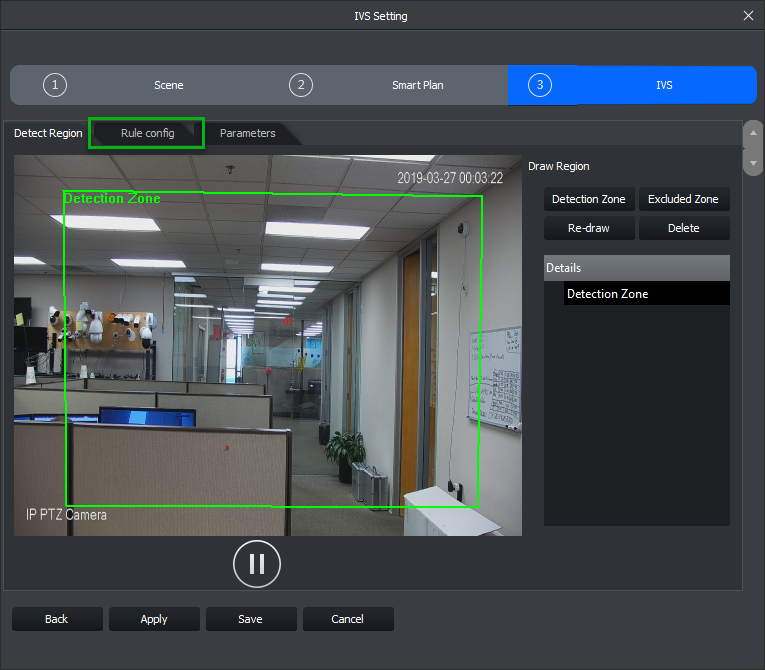

10. Next click, "Rule Config"

Auto Track SmartPSS-2 10.png

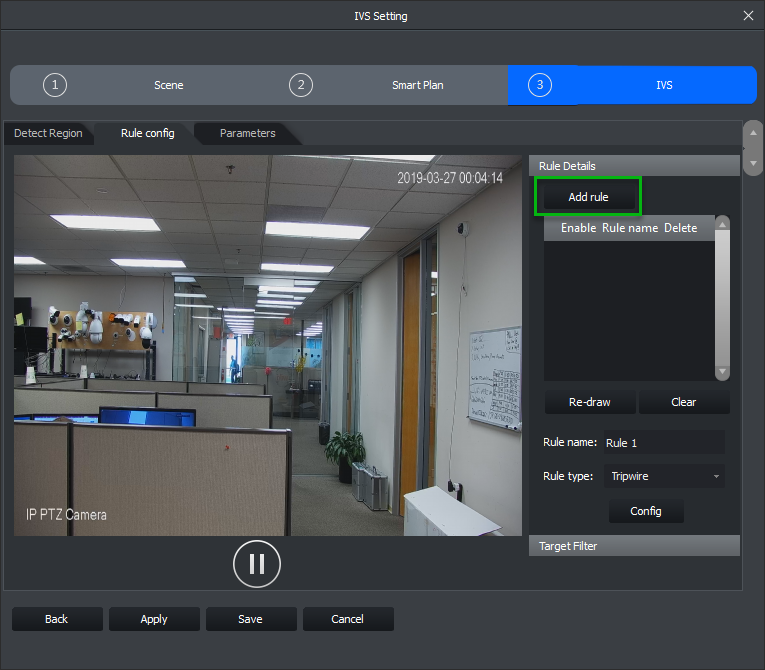

11. Click, "Add Rule"

Auto Track SmartPSS-2 11.png

12. Select the IVS rule you wish to establish.

Auto Track SmartPSS-2 12.png

13. Draw a rectangle around the region you wish to establish as the zone for the IVS rule. Add a new line with Left-Click, and complete drawing the region with Right-Click.

Auto Track SmartPSS-2 13.png

14 Click, "Apply" then, "Save"

Auto Track SmartPSS-2 14.png
