Add Device and Setup Push Notifications

Description

This guide will show how to add a LincX2Pro device as a cloud device to the DMSS app and also setup push notifications for the device

Prerequisites

Step by Step Instructions

DMSS New Icon.png DMSS

Step by Step Instructions

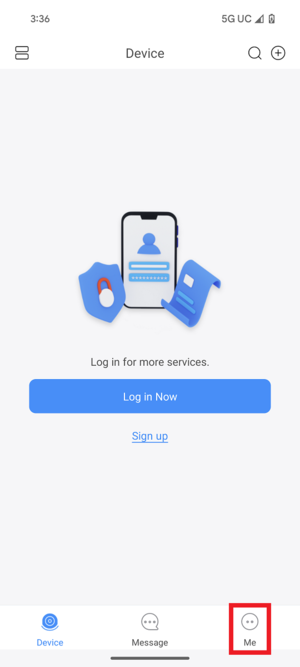

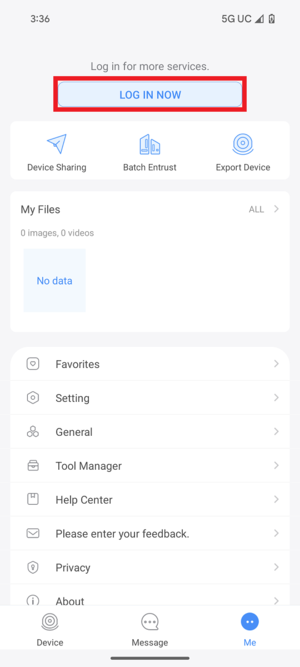

1. Open DMSS App then go to Me menu. If the DMSS are not logged, it is required to do so before proceeding to adding the device.

 For How-to instruction on creating Dahua Online Account, Click Here.

DMSS LincX2Pro Login.png

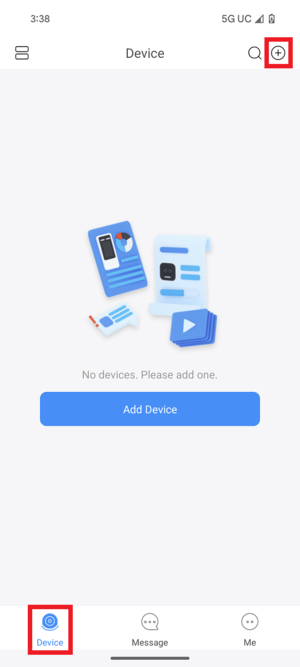

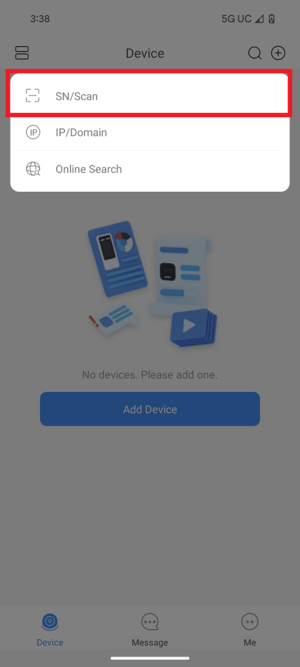

2.Tap on DMSS Icon Live Home.png Home, and tap on + button on the top right hand corner, then choose SN/Scan.

DMSS LincX2Pro Home Add.png

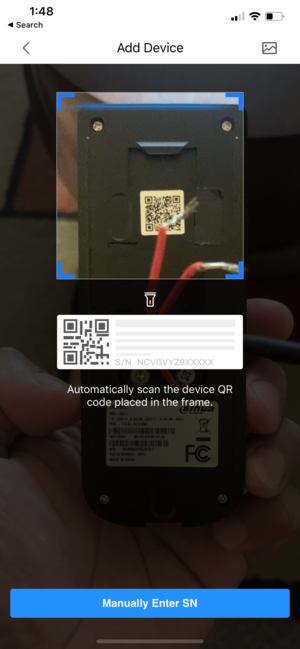

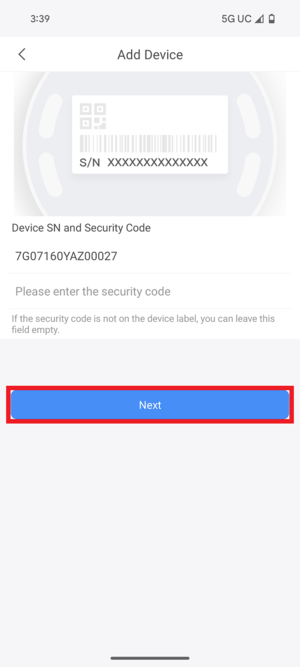

3. Scan the QR code of the device that located on the back of the doorbell.

DMSS LincX2Pro Scan QR.png

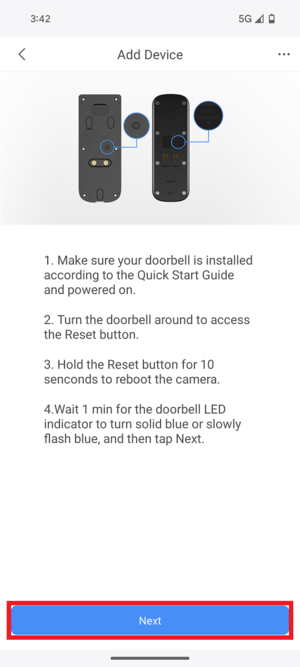

4. Make sure your device is connected to the power and the indicator light flashes blue. Tap on Next.

DMSS LincX2Pro Added.png

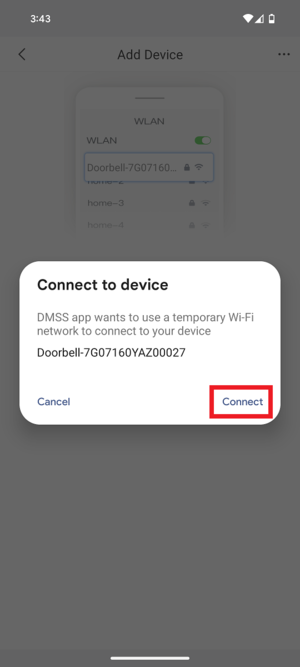

5. When a prompt comes up, Tap onJoin to continue.

DMSS LincX2Pro Connect Device Wifi.png

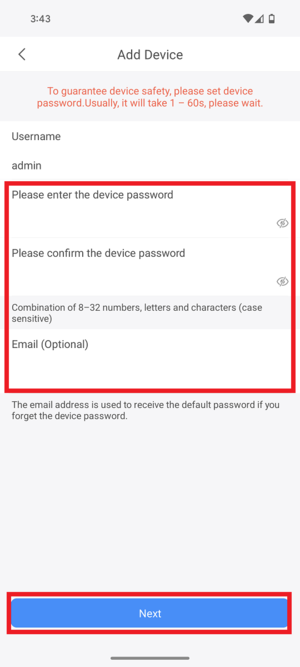

6. Setup the device password.

DMSS LincX2Pro Initialize.png

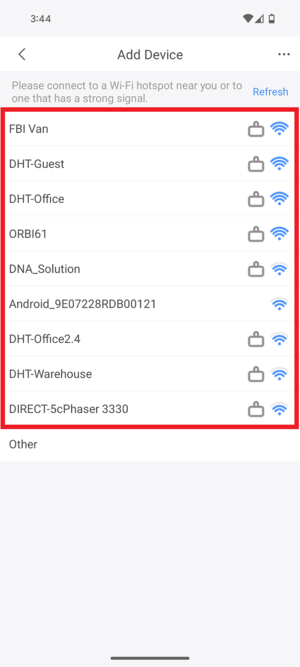

7. Choose the WIFI network the DB11 will be connecting to.

DMSS LincX2Pro Connect.png

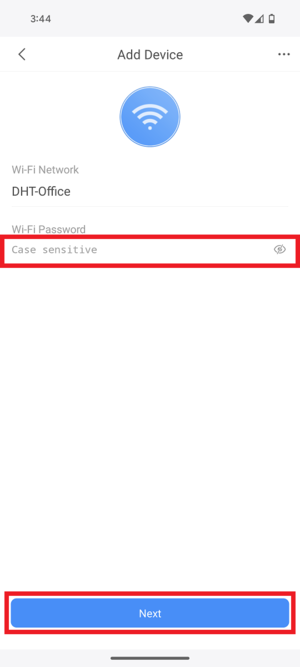

7. Enter Wifi password and tap on Next to continue the setup.

DMSS LincX2Pro Enter Wifi Pwd.png

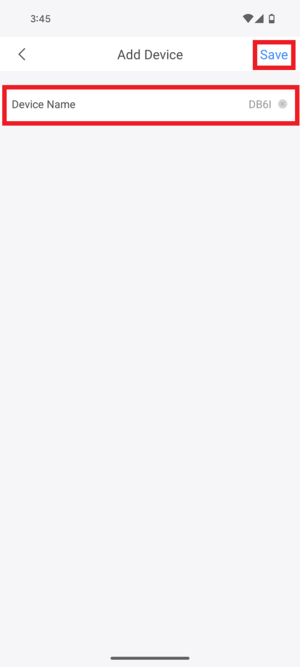

8. Enter the user-defined Device Name. In the example, we use Dahua Doorbell.

DMSS LincX2Pro Device Name.png

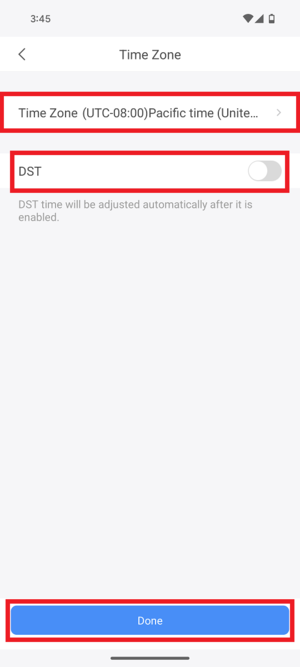

9. Finalize the settings to complete the setup.

DMSS LincX2Pro Date.png

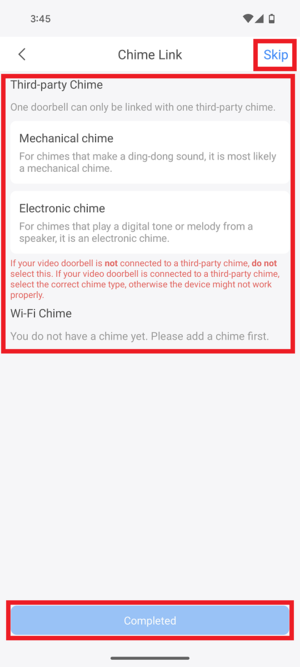

10. Select the existing door chime you have at the location. Electronic Chime or Mechanical Chime, or if you are using DS11-USA Wireless door chime, you should see this pop-up under Wireless Chime. Then tap on Save on the bottom.

DMSS LincX2Pro Door Chime.png

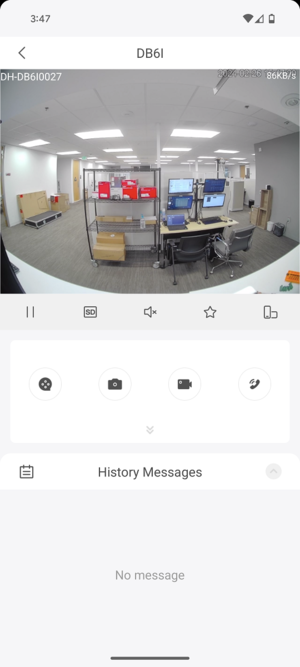

11. Once setup is complete, you will be able to view the live view of your Doorbell Camera.

DMSS LincX2Pro Live View.png

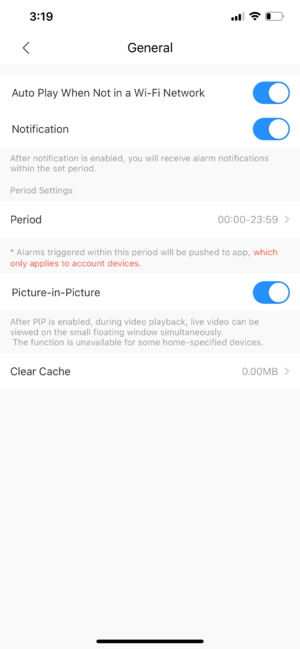

12. Go to Me > General. Make sure that the Notification Switch is enabled and now you should receive a call notification when doorbell button is pushed.

[[File:DMSS_Account_Notification.png|300px]

GDMSS icon.pngMobile:iDMSS Plus & gDMSS Plus

Video Instructions

Step by Step Instructions

1. From the Home screen of the app

Press Me

LincX2Pro - Add Device and Setup Push Notifications - 1.jpg

2. Press Log in Now (if not already logged into an account)

LincX2Pro - Add Device and Setup Push Notifications - 2.jpg

3. Enter the username and password for the account

Press Log in

LincX2Pro - Add Device and Setup Push Notifications - 3.jpg

4. Press Device

LincX2Pro - Add Device and Setup Push Notifications - 4.jpg

5. Press the + sign at the top right of the screen to begin adding a device

LincX2Pro - Add Device and Setup Push Notifications - 5.jpg

6. Select SN/Scan

LincX2Pro - Add Device and Setup Push Notifications - 6.jpg

7. Use the camera interface to scan the QR code for the device or press Manually Enter SN to type in the Serial Number

LincX2Pro - Add Device and Setup Push Notifications - 7.jpg

8. With the Device SN entered, Press Next

LincX2Pro - Add Device and Setup Push Notifications - 8.jpg

9. In the Add Device screen

Enter a Device Name (name for the device in the app)

Enter the Username / Password for the device

LincX2Pro - Add Device and Setup Push Notifications - 9.jpg

10. Press the Save icon

LincX2Pro - Add Device and Setup Push Notifications - 10.jpg

11. Select the appropriate Time Zone settings for the device

Press Done

LincX2Pro - Add Device and Setup Push Notifications - 11.jpg

12. The app will attempt to connect to and load the device

Press the back arrow to return to the menu

LincX2Pro - Add Device and Setup Push Notifications - 12.jpg

13. The Device Manager screen will show a list of added device

Confirm it appears in the list under Device Manager

LincX2Pro - Add Device and Setup Push Notifications - 13.jpg

14. Press Message

LincX2Pro - Add Device and Setup Push Notifications - 14.jpg

15. Use the toggle at the top to press the Cloud icon, to select Cloud Devices

LincX2Pro - Add Device and Setup Push Notifications - 15.jpg

16. Press the notification icon (Bell) to subscribe to notifications for a device

LincX2Pro - Add Device and Setup Push Notifications - 16.jpg

17. The Alarm Subscription menu will show a list of devices added to the cloud account

The added device will appear in the list

Toggle the switch next to the device to enable notifications

LincX2Pro - Add Device and Setup Push Notifications - 17.jpg

18. A prompt will appear to confirm a successful subscription

LincX2Pro - Add Device and Setup Push Notifications - 18.jpg

19. Press the arrow to exit the menu

LincX2Pro - Add Device and Setup Push Notifications - 19.jpg

20. In the Home screen of the app, select Me

LincX2Pro - Add Device and Setup Push Notifications - 20.jpg

21. Press General

LincX2Pro - Add Device and Setup Push Notifications - 21.jpg

22. Toggle the switch next to Notifications to enable notifications for this cloud account

LincX2Pro - Add Device and Setup Push Notifications - 22.jpg

23. The period can be adjusted, by default it will enrolled for 24 hours a day

LincX2Pro - Add Device and Setup Push Notifications - 23.jpg

24. Press the arrow to exit the menu

LincX2Pro - Add Device and Setup Push Notifications - 24.jpg
