NVR/Recording Setup/RAID Setup

How to Setup RAID

Description

RAID is a data storage virtualization technology that combines multiple physical disk drive components into a single logical unit for the purposes of data redundancy, performance improvement, or both.

Prerequisites

  • An NVR that supports RAID
  • 3 or more hard drives installed on your NVR
  • Enterprise Rated HDD is highly recommended for RAID Setup.

Instruction Video

Step by Step Instructions to Setup RAID5

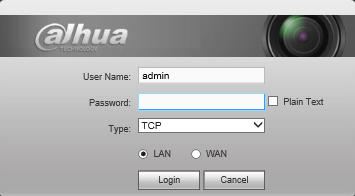

1. Login to your NVR from the web interface.


2. Go to Setup->Storage->RAID

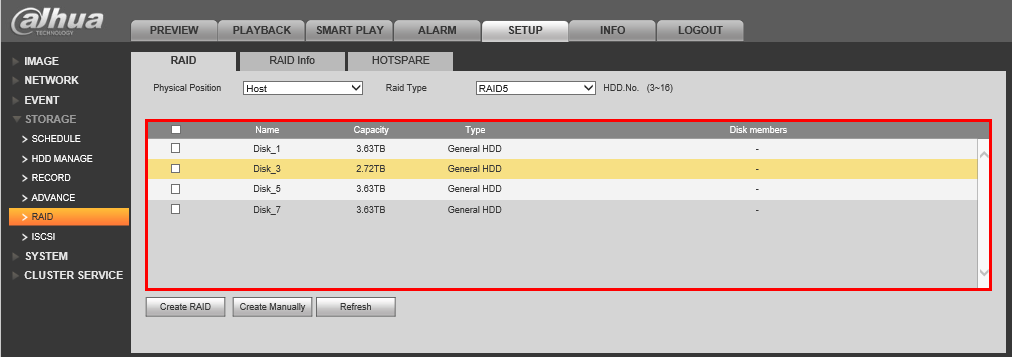

Confirm that all installed hard drives are present.

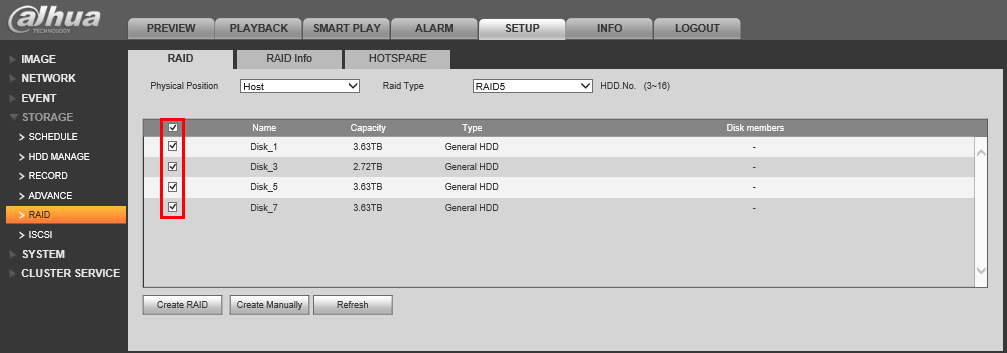

3. Check each of the hard drives you wish to include in the array.

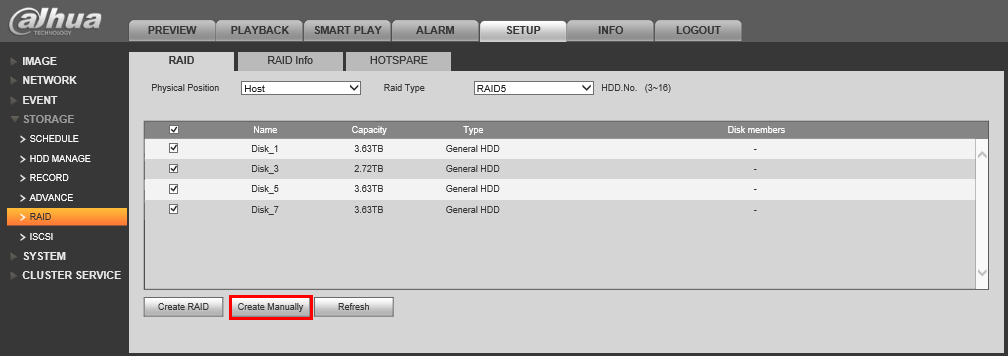

4. Click, "Create Manually"


5. Click, "OK" on the confirmation message, and wait several minutes.

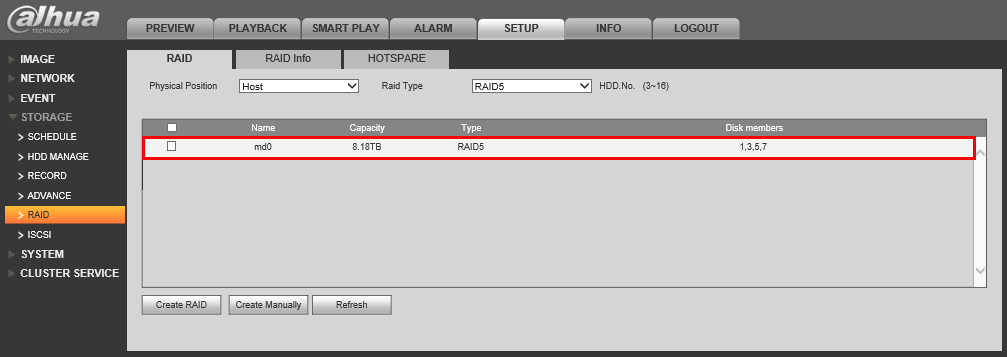

6. Click, "Refresh" and you should see a single listing for the drives you added to the RAID along with a confirmation message.
