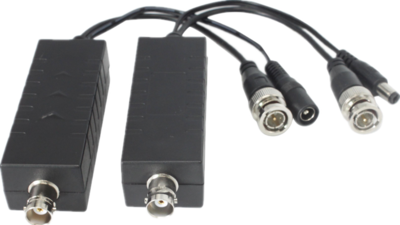

PFM810

PFM810


float

Features

  • Input voltage 24 VDC to 36 VDC
  • Provides 12 VDC, 9 W Power Supply to Remote Cameras
  • Real-time Video Transmission without Delay or Interference.
  • Transmission distance: 400 m (1312 ft)
  • Transmit one-channel HD Video and one channel DC Power over a UTP (CAT-5E or CAT-6) Cable
  • Surge Protection and Anti-interference Protection
  • RJ45 Standard Connection


Compatible Body Type

  • X

Compatible IP Cameras

  • X

Compatible HD-CVI Cameras

  • X


Specification

Model PFM810
Properties
Transmission Signal 1 channel HDCVI/HDTVI/AHD/CVBS
Transmission Distance 720P/1080P: 400M(max)
Power Supply Cable type Input Voltage Distance Output Power
75-3 DC24 0-100m DC12V 4W
100-150m DC12V 3W
DC36 0-100m DC12V 9W
100-200m DC12V 6W
RG59(75-4) DC24 0-100m DC12V 5W
100-250m DC12V 3W
DC36 0-150m DC12V 9W
150-300m DC12V 6W
RG6(75-5) DC24 0-100m DC12V 6W
100-300m DC12V 3.5W
300-400m DC12V 3W
DC36 0-400m DC12V 7W
Category Type Coax 75-5(RG6)/75-4(RG59)/75-3
Video Transmission Properties
Coaxial Video Connector BNC-M
Connection Way BNC
Compatible Format HDCVI/TVI/AHD
Resolution 720P/1080P
Anti-interference >60db
Protection
ESD 1a contact discharge electricity level 3
1b air discharge electricity level 3
Per: IEC61000-4-2
Coaxial Cable Connector 2KV(common-code)
Per: IEC61000-4-5
UTP Cable Connector 2KV(different-code), 4KV(common-code)
Per: IEC61000-4-5
Impedance
Coax 75 ohms
Physical Properties
Dimension(L*W*H) 78mm*29mm*22mm
Shell ABS
Color Black
N.W. 153g
Stability
MTBF >10000H
Environmental
Operating Temperature -10~55℃
Storage Temperature -20~70℃
Humidity 0~95%(non-condensing)
