PTZ/Instructions/Tour

Tour

Description

Tour allows the PTZ camera to move and cycle between established Preset locations

Instructions

Icon for type SystemUI Old.pngSystemUI Old

How to Setup Tour

Prerequisites

Video Instructions

Step by Step Instructions

1. From Live View right click to open the Menu

Click PTZ

PTZ Tour - SystemUI Old - 1.jpg

2. Click the arrow to expand the PTZ menu

PTZ Tour - SystemUI Old - 2.jpg

3. Click the gear icon to open the settings

PTZ Tour - SystemUI Old - 3.jpg

4. Click the Tour tab

PTZ Tour - SystemUI Old - 4.jpg

5. To begin adding steps to the Tour

Click inside the Preset field

Use the interface to select the Preset #

PTZ Tour - SystemUI Old - 5.jpg

Then click Add Preset

PTZ Tour - SystemUI Old - 6.jpg

6. Repeat this process for every step you wish to add to the Tour

PTZ Tour - SystemUI Old - 7.jpg

7. To run the created Tour

Click the Tour icon

PTZ Tour - SystemUI Old - 8.jpg

8. Click in the No. field to select the Tour number

PTZ Tour - SystemUI Old - 9.jpg

9. The Tour will begin and display the current status/preset position

PTZ Tour - SystemUI Old - 10.jpg

Icon for type SystemUI New.pngSystemUI New

How to Setup Tour

Prerequisites

Video Instructions

Step by Step Instructions

1. From Live View right click to open the Menu

Select PTZ

PTZ Tour - SystemUI New - 1.jpg

2. Click the arrow to expand the PTZ menu

PTZ Tour - SystemUI New - 2.jpg

3. Click the gear icon to open the settings

PTZ Tour - SystemUI New - 3.jpg

4. Click the Tour tab

PTZ Tour - SystemUI New - 4.jpg

5. To begin adding steps to the Tour

Click inside the Preset field

Use the interface to select the Preset #

PTZ Tour - SystemUI New - 5.jpg

Then click Add Preset

PTZ Tour - SystemUI New - 6.jpg

6. Repeat this process for every step you wish to add to the Tour

PTZ Tour - SystemUI New - 7.jpg

7. To run the created Tour

Click in the No. field to select the Tour number

Click the Tour icon

PTZ Tour - SystemUI New - 8.jpg

8. The Tour will begin and display the current status/preset position

PTZ Tour - SystemUI New - 9.jpg

Icon for type WebUI Old.pngWebUI Old

How to Setup Tour

Prerequisites

Video Instructions

Step by Step Instructions

1. Login to your IP PTZ camera via Internet Explorer.


2. Click Setting

Then under PTZ, click Function

PTZ Tour - OldUI - 1.jpg

3. Click Preset

Confirm presets have been created and appear in the list. Creating a tour requires starting by creating presets for the camera

PTZ Tour - OldUI - 2.jpg

4. Click Tour

PTZ Tour - OldUI - 3.jpg

5. Click Add to create a new Tour

PTZ Tour - OldUI - 4.jpg

6. Click Add to begin adding steps to the tour. Add as many steps as required

PTZ Tour - OldUI - 5.jpg

7. Click inside the field under the Preset column to edit


PTZ Tour - OldUI - 6.jpg

Use the drop-down box to select the Preset

The same adjustments can be made for Duration and Speed for each step to configure the tour as desired

PTZ Tour - OldUI - 7.jpg

8. Click Save

PTZ Tour - OldUI - 8.jpg

9. To test the created Tour

Click Live

PTZ Tour - OldUI - 9.jpg

10. Use the dropdown box under PTZFunction to select Tour

PTZ Tour - OldUI - 10.jpg

11. Enter the Tour #

Click Start to begin the Tour

PTZ Tour - OldUI - 11.jpg

12. The Tour will begin and display the current status/preset position

PTZ Tour - OldUI - 12.jpg

Icon for type WebUI New.pngWebUI New

How to Setup Tour in Camera OSD

These instructions will show how to set up a Tour for a HDCVI PTZ camera connected to a Dahua XVR through the WebUI of the XVR by bringing up the OSD (On Screen Display) of the PTZ camera directly for configuration.

Prerequisites

Step by Step Instructions

1. Enter the IP of the XVR into a browser

At the Web Login

Enter the Username and Password

Click Login

OSD - WebUI New - 1.jpg

2. Click Live

OSD - WebUI New - 2.jpg

3. Left click the camera from the channel list on the left side of the screen to load it into live view

HDCVI PTZ Tour OSD Setup 1.jpg

4. To open the Camera's OSD - On Screen Display

Click PTZ Menu

Click Open

OSD will appear on screen

HDCVI PTZ Tour OSD Setup 2.jpg

5. Use the navigation wheel / arrows to move between menu options. Clicking OK will select the menu option

To create a Tour:

Select Function Setting

HDCVI PTZ Tour OSD Setup 3.jpg

Select Tour

HDCVI PTZ Tour OSD Setup 4.jpg

Select a Tour number to edit, for example 1

Select Setting

HDCVI PTZ Tour OSD Setup 5.jpg

The Tour information will be displayed

HDCVI PTZ Tour OSD Setup 6.jpg

Click OK to select a step of the Tour, then change the Preset , Dwell , and Speed settings as desired for each step

HDCVI PTZ Tour OSD Setup 7.jpg

Select Exit to exit the menu

HDCVI PTZ Tour OSD Setup 8.jpg

How to Setup Tour through XVR

Prerequisites

Video Instructions

Step by Step Instructions

1. From Live View

Click PTZ Setup on the right side of the screen

PTZ Tour - WebUI New - 1.jpg

2. Use the dropdown box to select Tour

PTZ Tour - WebUI New - 2.jpg

PTZ Tour - WebUI New - 3.jpg

3. To add steps to the Tour

  • Enter the Preset #
  • Click Add Preset

PTZ Tour - WebUI New - 4.jpg

Repeat this procedure for every step you wish to add to the Tour

4. To test the created Tour

  • Enter the Tour #
  • Click Start

PTZ Tour - WebUI New - 5.jpg

5. The Tour will begin and display the current preset/position

PTZ Tour - WebUI New - 6.jpg

Icon for type SmartPSS.pngSmartPSS

How to Setup Tour

Prerequisites

Video Instructions

Step by Step Instructions

1. From the Main Page of SmartPSS

Click Live View

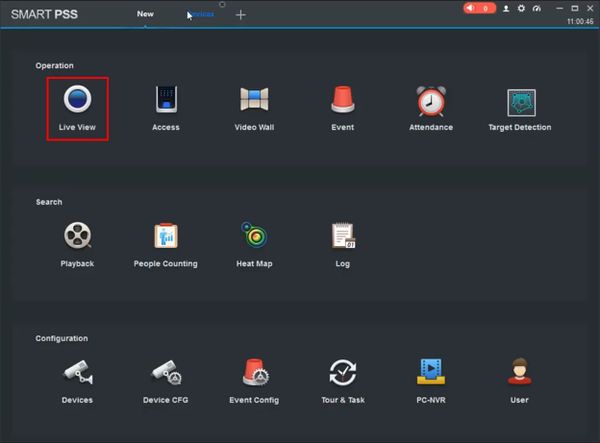

PTZTour - SmartPSS - 0.jpg

2. Click to expand the PTZ section on the left side of the screen

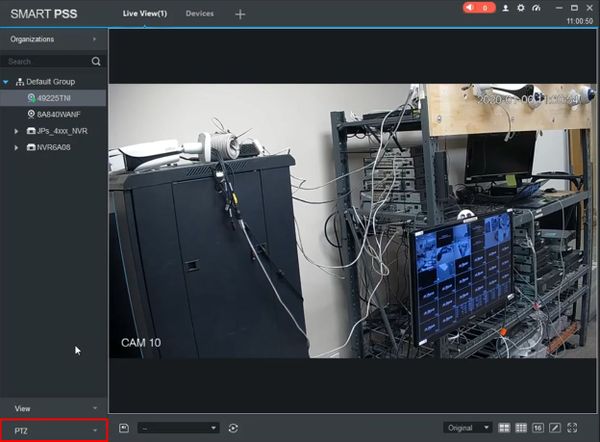

PTZTour - SmartPSS - 1.jpg

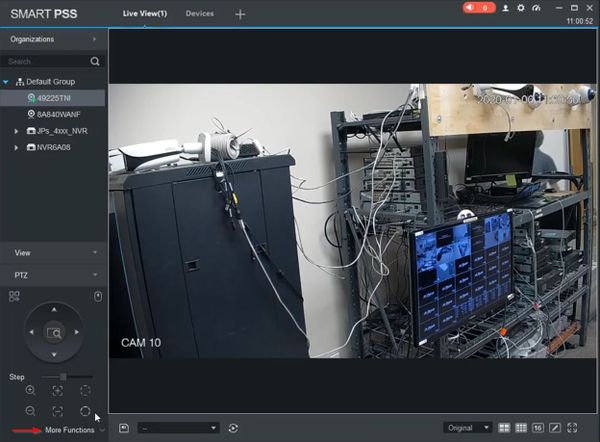

3. Click More Functions

PTZTour - SmartPSS - 2.jpg

4. Use the dropdown box to select Tour

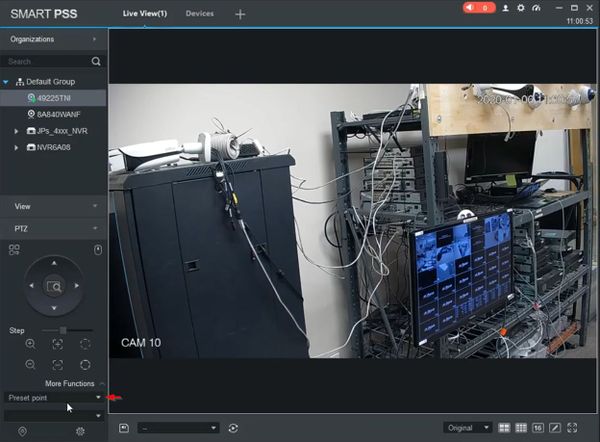

PTZTour - SmartPSS - 3.jpg

Click the gear icon to configure the parameters of the Tour

PTZTour - SmartPSS - 4.jpg

5. The Tour List window will appear

The steps of the tour will be listed

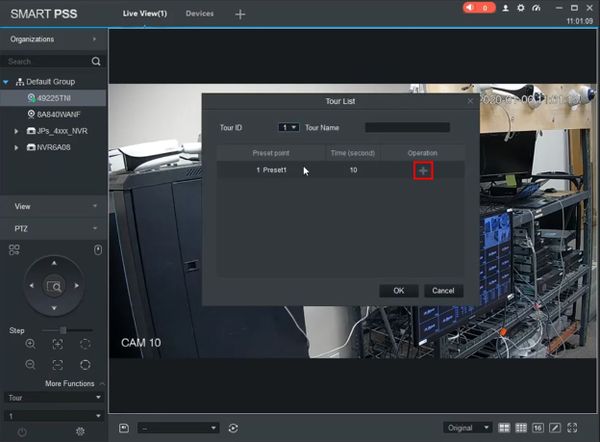

Click the + to add steps to the Tour

PTZTour - SmartPSS - 5.jpg

6. Click inside the fields to edit the parameters, such as Preset point

PTZTour - SmartPSS - 6.jpg

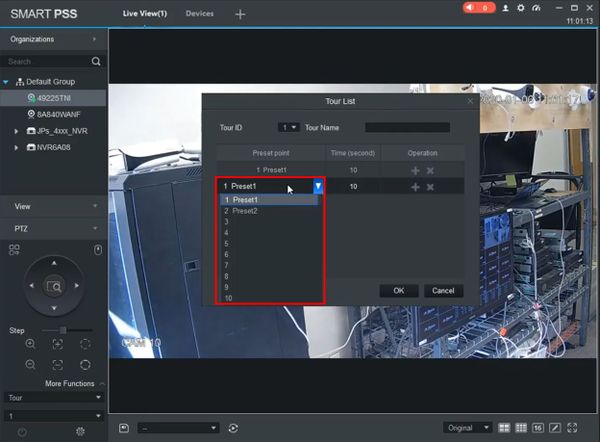

A dropdown box will appear

PTZTour - SmartPSS - 7.jpg

The Time parameter can be adjusted the same way

Continue to add steps to the Tour and configure the parameters as desired

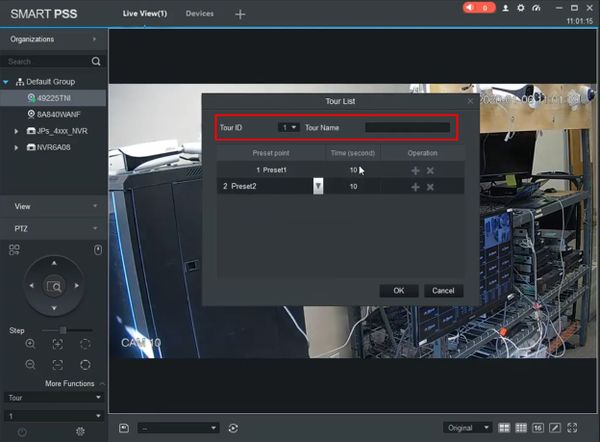

7. Use the top of the window to set the Tour ID and Tour Name

PTZTour - SmartPSS - 8.jpg

8. Click OK to save

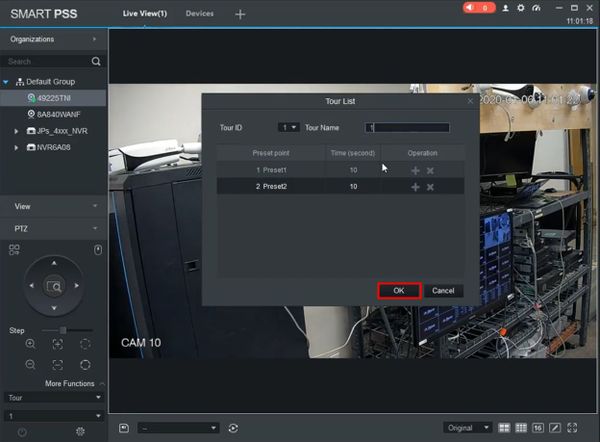

PTZTour - SmartPSS - 9.jpg

9. To run the created Tour

  • Use the dropdown box to select Tour
  • Select the Tour #
  • Click Start to begin the Tour

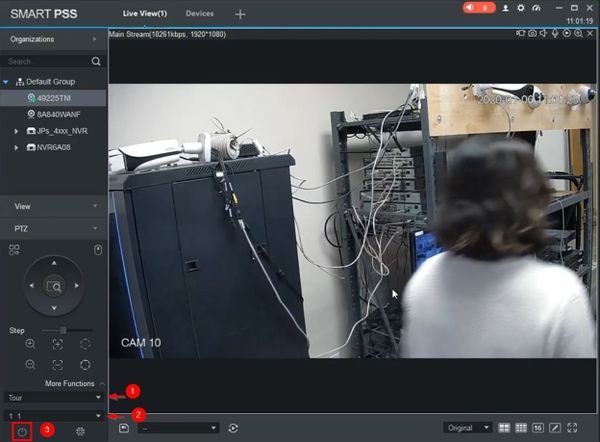

PTZTour - SmartPSS - 10.jpg

10. The Tour will begin and display the current status/preset position

PTZTour - SmartPSS - 11.jpg

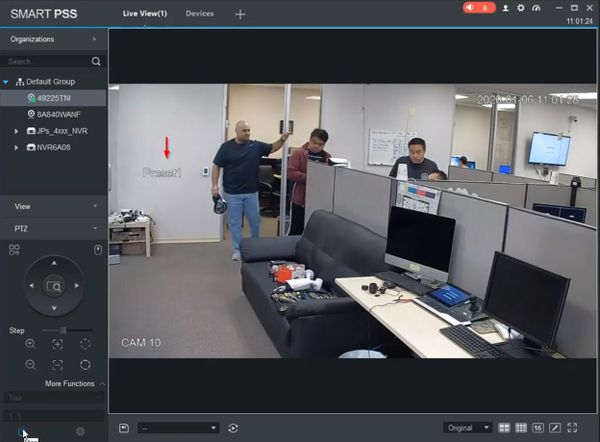

11. Click again to stop the Tour

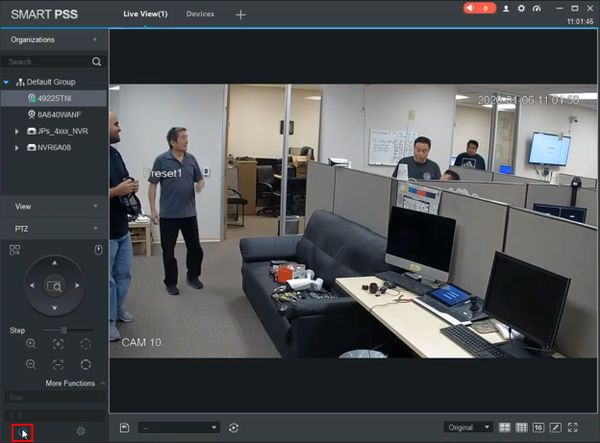

PTZTour - SmartPSS - 12.jpg

Icon for type DSS Express S.pngDSS Express

How to Setup Tour

Prerequisites

Video Instructions

Step by Step Instructions

1. From Live View

Click to expand the PTZ section on the left side of the screen

Click the Arrow to open advanced settings

PTZTour - DSS Express S - 1.jpg

2. The preset will be displayed under the Flag icon

Confirm the presets have been created and appear in this list

PTZTour - DSS Express S - 2.jpg

3. Click the Tour icon

PTZTour - DSS Express S - 3.jpg

4. To create a new Tour click the Pencil icon

PTZTour - DSS Express S - 4.jpg

5. To add a step to the tour click the +

PTZTour - DSS Express S - 5.jpg

6. Use the dropdown box that appears to select the Preset Point

PTZTour - DSS Express S - 6.jpg

7. Enter a Name for the Tour

PTZTour - DSS Express S - 7.jpg

8. Click OK

PTZTour - DSS Express S - 8.jpg

9. To run the created Tour click the Start Tour icon next to the Tour in the list

PTZTour - DSS Express S - 9.jpg

10. The Tour will begin and display the current status/preset position

PTZTour - DSS Express S - 10.jpg

11. Click the Stop Tour icon to stop the tour

PTZTour - DSS Express S - 11.jpg
