How to Set A Pattern in SmartPSS 1.16

Description

The Pattern feature allows you to set a predetermined path to multiple locations, and adjust Zoom, Focus, and Iris as the camera moves between positions

Prerequisites

  • Dahua Network PTZ
  • IP Address of Network PTZ
  • SmartPSS 1.16
  • PTZ added to SmartPSS Device List

Video Instructions

Step by Step Instructions

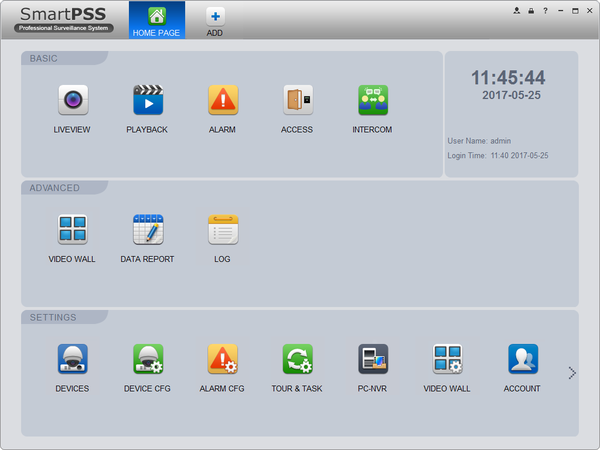

1. Launch SmartPSS.

PTZ Scan SmartPSS1.16 1.png

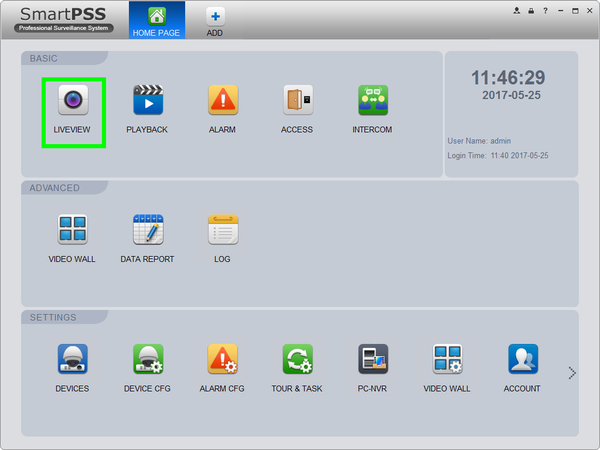

2. Click, "Liveview"

PTZ Scan SmartPSS1.16 2.png

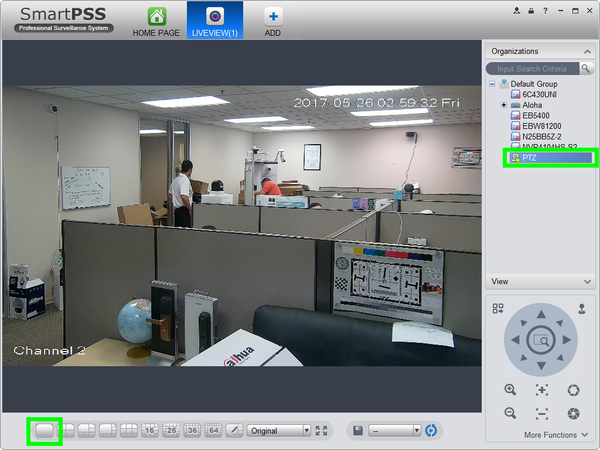

3. Double click the PTZ on the device list on the left, and click the box on the lower left to bring the PTZ up full screen.

PTZ Scan SmartPSS1.16 3.png

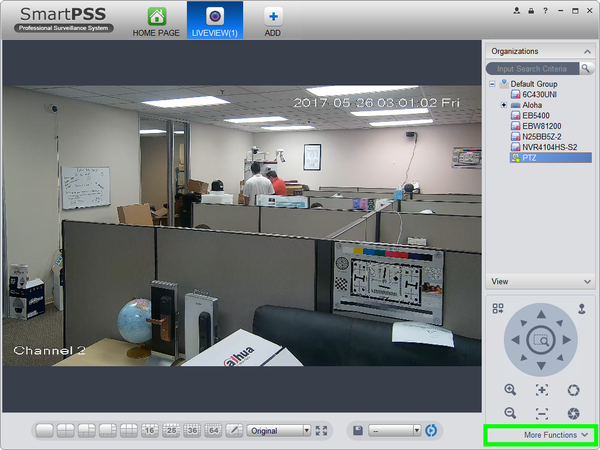

4. Click, "More Functions" in the lower left.

PTZ Scan SmartPSS1.16 4.png

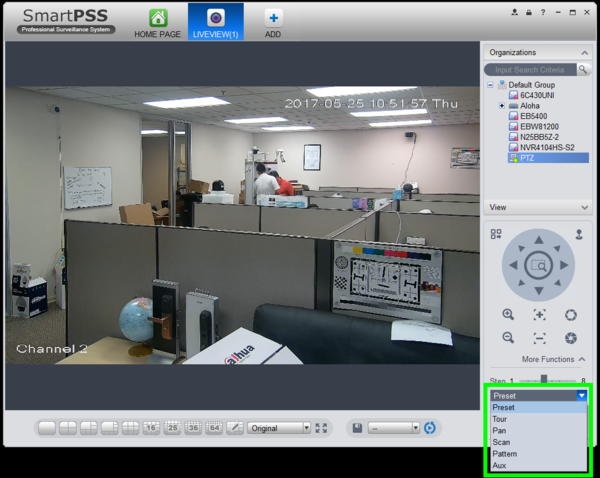

5. Click the drop down list, and select, "Pattern"

PTZ Scan SmartPSS1.16 5.png

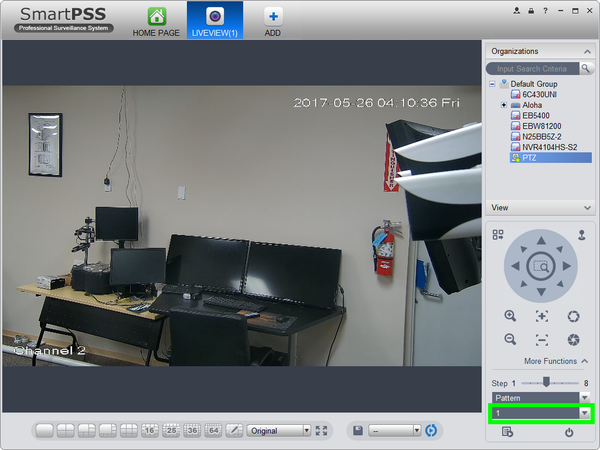

6. Input the pattern number you wish to establish.

PTZ Pattern SmartPSS1.16 1.png

7. Click the icon on the lower left to begin recording.

PTZ Pattern SmartPSS1.16 2.png

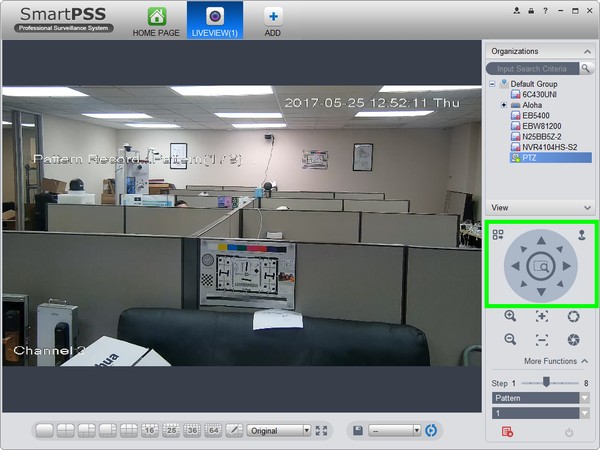

8. Use the arrow keys to move the PTZ in the desired pattern.

PTZ Pattern SmartPSS1.16 3.png

9. Click the icon on the lower left again, to stop recording.

PTZ Pattern SmartPSS1.16 4.png

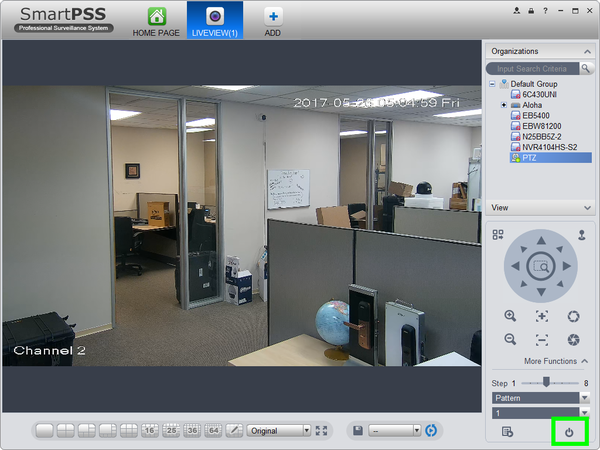

10. To activate the pattern, click on the, "Power" button.

PTZ Pattern SmartPSS1.16 5.png
