PTZ/SmartPSS 2.0/Pattern

How to Setup A Pattern in SmartPSS 2.0


The Pattern feature allows you to set a predetermined path to multiple locations, and adjust Zoom, Focus, and Iris as the camera moves between positions


  • Dahua Network PTZ
  • IP Address of Network PTZ
  • SmartPSS 2.0
  • PTZ added to SmartPSS Device List

Video Instructions

Step by Step Instructions

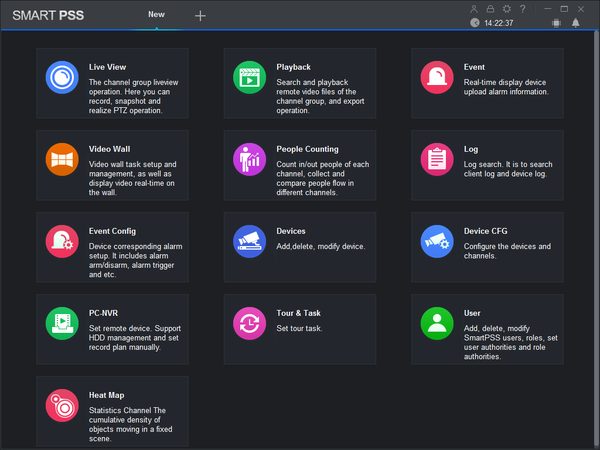

1. Launch SmartPSS.

PTZ Scan SmartPSS2.0 0.png

2. Click, "Liveview"

PTZ Scan SmartPSS2.0 1.png

3. Double click the PTZ on the device list on the left, and double click the video feed to bring the PTZ up full screen.

PTZ Scan SmartPSS2.0 2.png

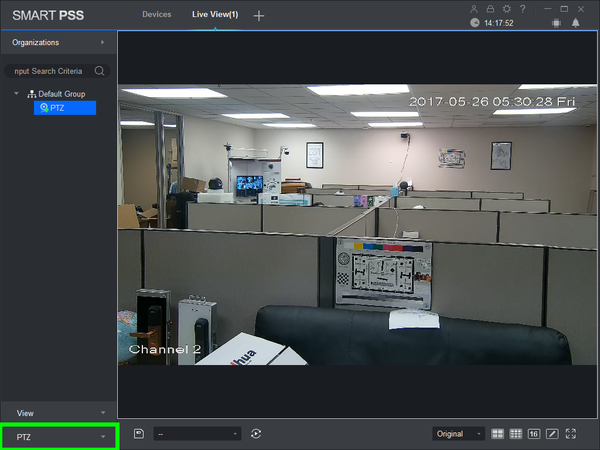

4. Click, "PTZ"

PTZ Scan SmartPSS2.0 3.png

5. Click, "More Functions" in the lower left.

PTZ Scan SmartPSS2.0 4.png

6. Click, "Pattern" in the lower left.

PTZ Scan SmartPSS2.0 5.png

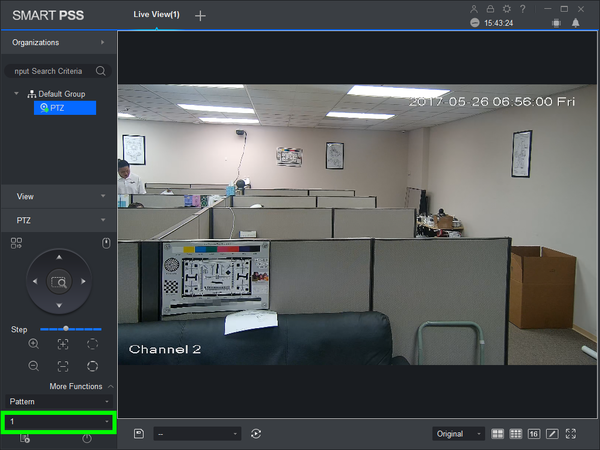

7. Input the pattern number you wish to establish.

PTZ Pattern SmartPSS2.0 1.png

8. Click the icon on the lower left to begin recording.

PTZ Pattern SmartPSS2.0 2.png

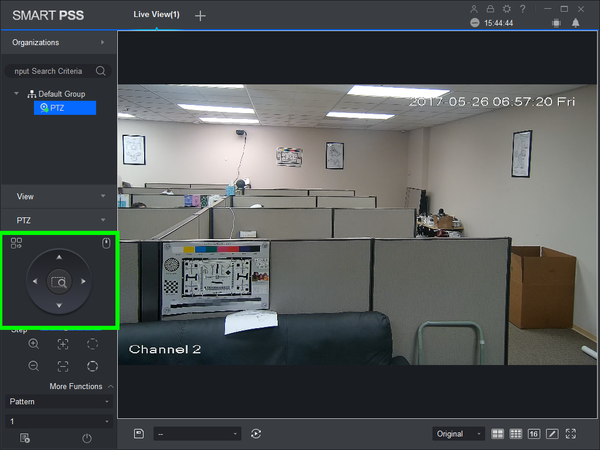

9. Use the arrow keys to move the PTZ in the desired pattern.

PTZ Pattern SmartPSS2.0 3.png

10. Click the icon on the lower left again, to stop recording.

PTZ Pattern SmartPSS2.0 4.png

11. To activate the pattern, click on the, "Power" button.

PTZ Pattern SmartPSS2.0 5.png
