Playback/SmartSearch/Face Detection

SmartSearch: Face Detection

Description

Prerequisites

Instructions

Icon for type SystemUI New.pngSystemUI New

Prerequisites

  • A Dahua NVR or XVR with Facial Detection

Video Instructions


Step by Step Instructions

1. From the main menu Select the AI option.

Face Detect NSUI-1.PNG


2. Under AI > Smart Search choose Facial Detection and set your channel, time frame, and search filters.

Face Detect NSUI-2.PNG

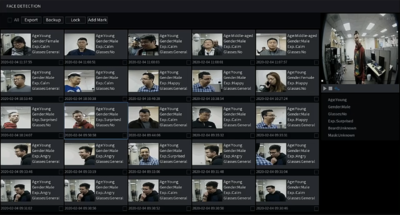

3. Once parameters have been set, hit Smart Search to see the results. Select any thumb nail to view the playback on the right side menu.

Face Detect NSUI-4.PNG

Icon for type WebUI New.pngWebUI New

Prerequisites

Video Instructions

Step by Step Instructions

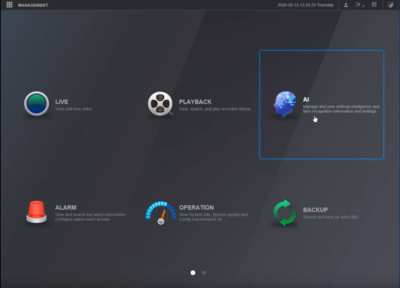

1. From the main menu Select the AI option.

Face Detect NWUI-1.PNG


2. Under AI > Smart Search choose Facial Detection and set your channel, time frame, and search filters.

Face Detect NWUI-2.PNG


3. Once parameters have been set, hit Smart Search to see the results. Select any thumb nail to view the playback on the right side menu.

Face Detect NWUI-3.PNG

Icon for type WebUI Old.pngWebUI Old

Prerequisites

  • Dahua device with Face Detection function
  • Computer

Video Instructions

Step by Step Instructions

1. Enter the IP of the device into a browser

At the Web Login

Enter the Username and Password

Click Login

Face Detection - WebUI Old - 1.jpg

2. Click AI Search

Face Detection - WebUI Old - 2.jpg

3. Click Face Detection

Face Detection - WebUI Old - 3.jpg

4. Use the dropdown box to select the Channel(s) to search

Face Detection - WebUI Old - 4.jpg

5. Use the interface to adjust the date range for the search

Face Detection - WebUI Old - 5.jpg

6. Click Search to begin the search

Face Detection - WebUI Old - 6.jpg

7. The search results will be displayed

Face Detection - WebUI Old - 7.jpg

8. Left click any of the events for playback/review

Face Detection - WebUI Old - 8.jpg

Icon for type SystemUI Old.pngSystemUI Old

Prerequisites

  • Dahua device with Face Detection function

Video Instructions

Step by Step Instructions

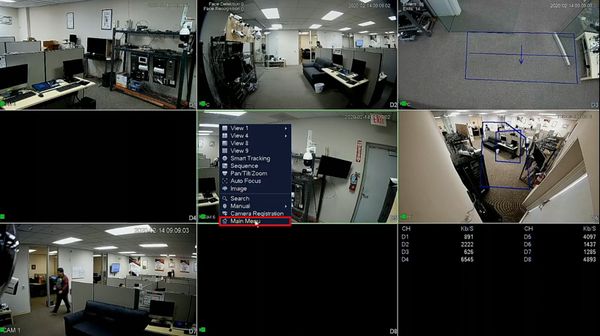

1. From Live View, right click

Select Main Menu

Face Detection - SystemUI Old - 1.jpg

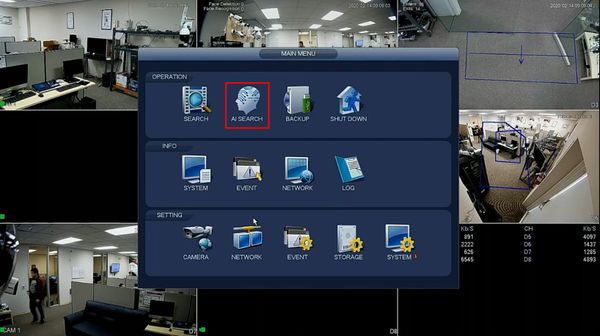

2. Click AI Search

Face Detection - SystemUI Old - 2.jpg

3. Click Face Detection

Face Detection - SystemUI Old - 3.jpg

4. Use the dropdown box to select the Channel(s) for search

Face Detection - SystemUI Old - 4.jpg

5. Use the interface to enter the date range for the search

Face Detection - SystemUI Old - 5.jpg

6. Click Smart Search to begin the search

Face Detection - SystemUI Old - 6.jpg

7. The search results will be displayed

Face Detection - SystemUI Old - 7.jpg

8. Left click any of the events for playback/review

Face Detection - SystemUI Old - 8.jpg
