SD-Card Recording
Description
This feature will allow you to trigger recording based on audio input from a powered microphone.
Prerequisites
Setup Instructions
WebUI Old
Prerequisites
Video Instructions
Step by Step Instructions
1. Enter the IP of the device into a browser
At the Web Login
Enter the Username and Password
Click Login
1. Click Setting
2. Click Storage
Click Schedule
3. Click Record tab
Click the Setting button
4. Use the Schedule Setting window to set the record schedule
Click Save
A prompt will appear to confirm
5. Click Snapshot
Click the Setting button
Use the Schedule Setting window to set the snapshot schedule
Click Save
A prompt will appear to confirm
Choose you options, Read only, Read & Write, Hot Swap.
Click on Destination and check the local choices.
You can also format the SD card.
SmartPSS
Prerequisites
Video Instructions
Step by Step Instructions
Login to SMART PSS and choose the camera.

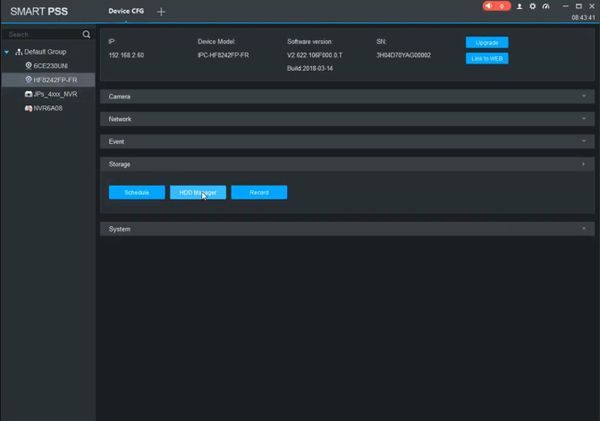

Click on "HDD Manager".

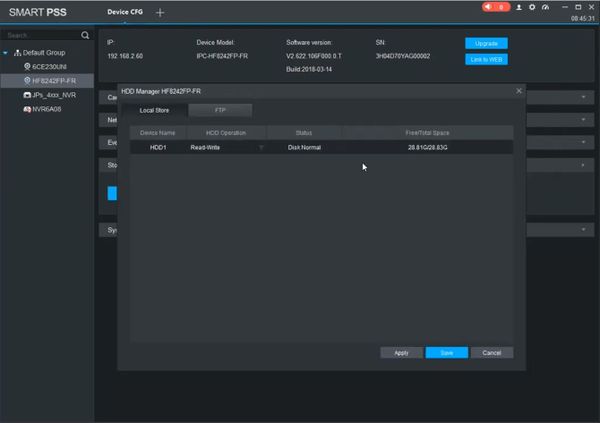

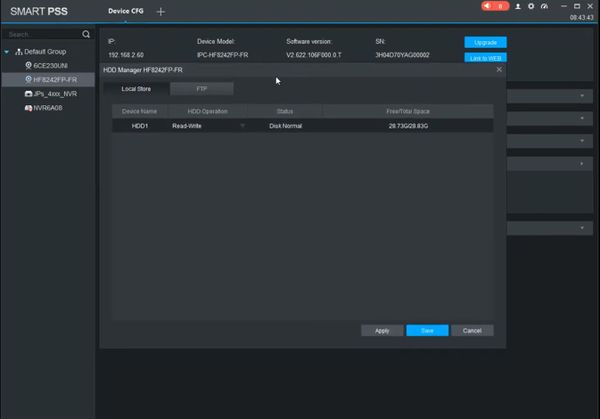

Click on "Local Store"

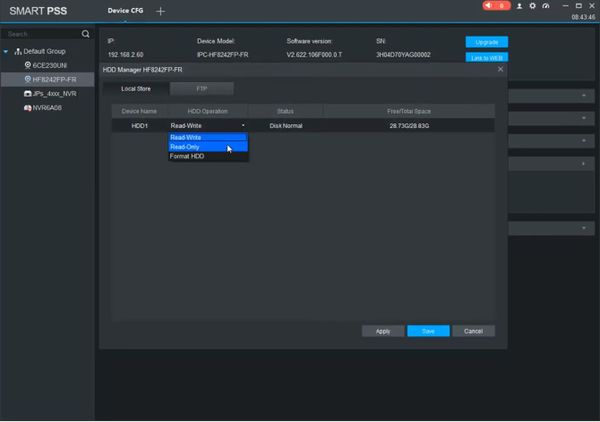

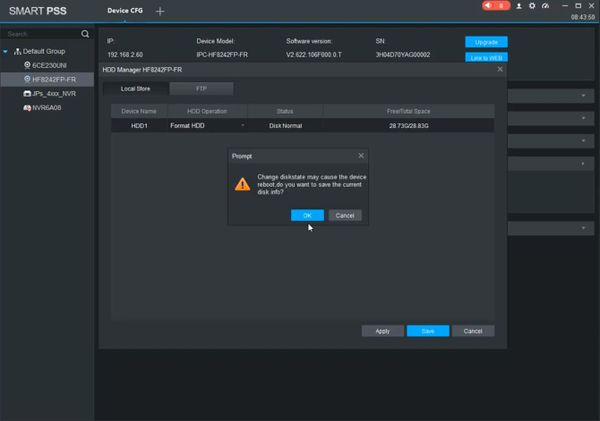

Click on "HDD Operation" and choose "Read-Write", "Read-Only" or "Format HDD"

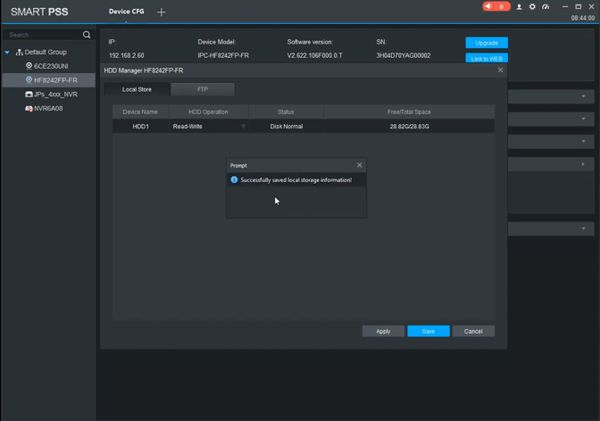

Click "OK"

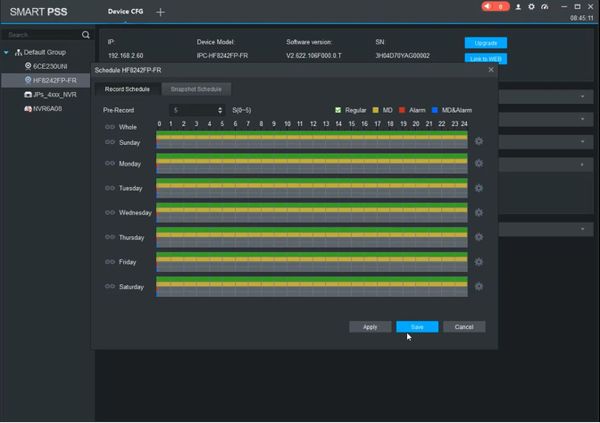

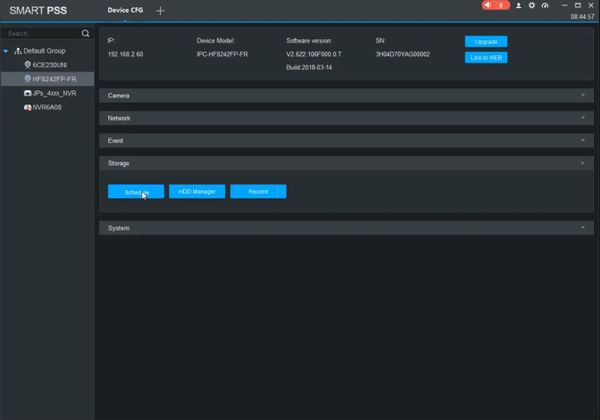

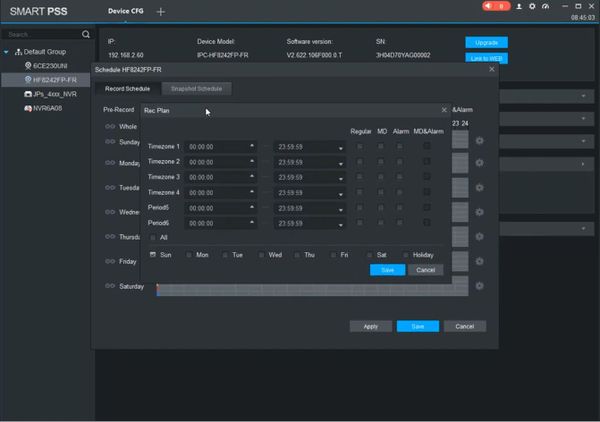

Click on "Schedule"
Chose the "Rec Plan"
Click on "Save"
Playback Instructions
WebUI Old
Prerequisites
Video Instructions
Step by Step Instructions
Click Login
Click on "Playback" and choose a date.
Click on the botton right corner and choose the time frame.
SmartPSS
Prerequisites
Video Instructions
Step by Step Instructions

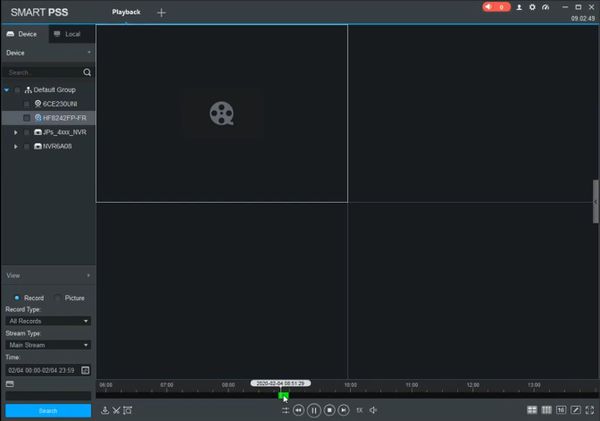

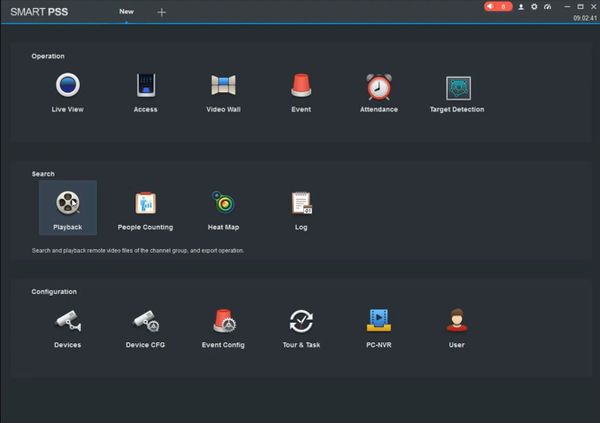

Login into the "SmartPSS"
Go to "Playback"
Select the camera
The time and date
