Schedule Record

Description

Prerequisites

Instructions

Icon for type SystemUI Old.pngSystemUI Old

Description

Dahua NVRs and DVRs offer a variety of recording options. You can configure recording schedules based on the following methods:

  • Regular
  • Motion Detection
  • Alarm Based
  • Motion Detection + Alarm
  • IVS if the feature is available depending on the model.

These schedules can be set individually for each camera or copied to all cameras.

Prerequisites

  • Dahua NVR or DVR
  • Internal HDD

Video Instructions

Step by Step Instructions

1. From the Main Menu click, "Storage" under, "Settings"


2. Click, "Schedule" on the left hand side.


3. Click the Gear icon to the right of any of the graphs.


4. Check the box for, "Regular" then click the, "All" box below, "Copy"


5. Click, "Save" This will return you to the previous screen which should look like this.


6. Click, "Apply" and then, "OK"

Icon for type SystemUI New.pngSystemUI New

Description

The tutorial shows how to schedule recordings via New GUI SystemUI.

Prerequisites

  • Dahua NVR or DVR
  • Internal HDD

Video Instructions

Step by Step Instructions

1. Click "STORAGE" to open the recording schedule option.
1. Storage - Schedule Record SystemUI New.PNG

2. Click "SCHEDULE" => select the first gear icon as highlighted.
Please note this setup is for one camera only. If there are multiple cameras installed, each channel will need to be selected appropriately under "Channel". Ex: D1 means this is the first camera and it is selected.
2. Schedule - Schedule Record SystemUI New.PNG

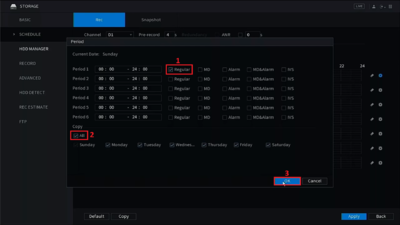

3. Check the option "Regular" for continuous recording => Select "All" to apply this setting to all dates => Click "OK" to apply the changes.
3. Period - Schedule Record SystemUI New.PNG

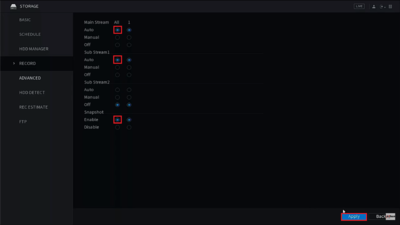

4. Click "RECORD" => Enable "Auto" on "Main Stream", "Sub Stream 1", and "Snapshot".

4. Record - Schedule Record SystemUI New.PNG

Icon for type WebUI Old.pngWebUI Old

Prerequisites

  • WEB access to IE (Internet Explorer)
  • User Name and Password of device.
  • Internal HDD

Video Instructions

Step By Step Instructions

1. Log into the device through the web service using Internet Explorer.


2. Select the "Setup" tab.


3. From the left hand side select Storage -> Schedule


4. Select the channel/camera recordings are to be scheduled for -> Select Setup .


5. You will have the options to set for Regular Recordings, MD (Motion Detection) , Alarm , MD & Alarm. For this tutorial we are using Regular Recordings.


  • Here you can see that you are able to set multiple periods. For this tutorial we will only be setting one period. Check off Regular -> Select the day or days to set scheduled recordings -> select ok to save


7. Depending on the days selected from the previous step you will see green colored bars which represents regular recording.


8. You can select the copy button to mirror the same schedule to another channel/camera -> Select OK -> Select OK to save all settings.


Icon for type WebUI New.pngWebUI New

Description

Dahua NVRs and DVRs offer a variety of recording options. You can configure recording schedules based on the following methods:

  • General
  • Motion Detection
  • Alarm Based
  • Motion Detection + Alarm
  • IVS if the feature is available depending on the model.

These schedules can be set individually for each camera or copied to all cameras.

Prerequisites

  • Dahua NVR or DVR with 2018 firmware
  • Internal HDD

Video Instructions

Step by Step Instructions

1. From the Main Menu select "Management".


2. Select the "Storage" option from the drop-down menu.


3. From the left hand side, select "Schedule".


4. Select the channel drop-down menu to choose the channel that you want to adjust the recording schedule for.


5. Select "Setting" next to any day of the week.


6. You will have options to set a schedule for General Recording, MD (Motion Detection), Alarm, MD & Alarm, Intel, and POS (Point of Sale). For this tutorial we are using General Recording.


7. Here you can see that you are able to set multiple periods. For this tutorial we will only be setting one period. Check the "General" box, then select the day or days you want to scheduled recordings for, and then select "Save".


8. Depending on the days selected from the previous step, you will see green colored bars which represents general recording.


9. You can select "Copy" to mirror the same schedule to another channel/camera. Select "Save" in the Copy menu.


10. Select "Save" at the bottom to save all settings. If your changes were successfully saved, a pop-up will appear at the top notifying you as such.

Icon for type SmartPSS.pngSmartPSS

Description

Set up regular recordings for SmartPSS 2.0

Prerequisites

  • Dahua NVR or DVR
  • Internal HDD

Video Instructions

Step By Step Instructions

1. From the Main Menu Select "Device CFG" (Device Configuration).

SPSS ScheduledRec 1.PNG


2. From the left hand side select the device the scheduled recording is to be set for.

SPSS ScheduledRec 2.PNG


3. Select "Storage" -> Select "Schedule".

SPSS ScheduledRec 3.PNG


4. From the channel drop down menu select the channel for recording.

SPSS ScheduledRec 4.PNG


5. Click on the settings icon. Here you will see a menu for the days and hours for the scheduled recordings.

SPSS ScheduledRec 5.PNG


6. By default Regular will be selected, for this tutorial Motion Detect (MD) will be added. Check MD -> Check mark the day or days recordings are to be set for -> select save.

SPSS ScheduledRec 6.PNG


7. Here you can see green across for the days you set schedule recordings for in the previous step. You can copy the configuration set in the previous step to other channels -> Select "Apply" and "Save" to save configuration.

SPSS ScheduledRec 7.PNG

Icon for type DSS Express S.pngDSS Express

Description

Setting up record schedule in DSS Express S


Prerequisites

  • Dahua NVR or DVR
  • Internal HDD
  • DSS Express Server and Client software


Step By Step Instructions

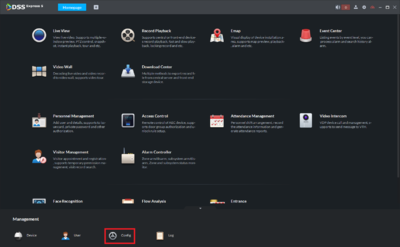

1. From the main menu select Config

DSS Express Sched Rec 1.PNG

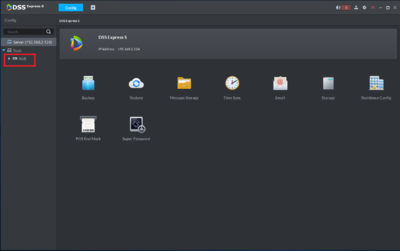

2. Under Config under the left-hand side menu expand the NVR to show all cameras.

DSS Express Sched Rec 2.PNG


3. Once the cameras are shown, left click to select one and choose Recording Configuration

DSS Express Sched Rec 3.PNG


4. From the highlighted drop down menu select Manage time template to open a new window

DSS Express Sched Rec 4.PNG


5. In the new window on the left side menu select Add time template to create a new template.

DSS Express Sched Rec 5.PNG

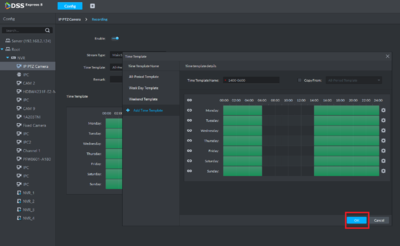

6. Left click with the mouse and hold to erase or add time to the schedule, once complete assign a name and hit Ok.

DSS Express Sched Rec 6.PNG


7. From the Schedule menu select the new Time Template from the Time Template drop down and click apply.

DSS Express Sched Rec 7.PNG


8. Once applied the schedule can now be copied to other devices.

DSS Express Sched Rec 8.PNG

IDMSS Plus Icon2.jpgMobile:iDMSS Plus & gDMSS Plus

Description

The tutorial shows how to schedule recordings via iDMSS or gDMSS.

Prerequisites

  • iDMSS or gDMSS Plus

Video Instructions

Step by Step Instructions

1. Select "Device" to go to the device list.
1. Device - Schedule Record DMSS.PNG

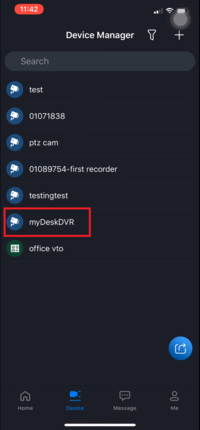

2. Select the recorder from the added device list.
2. Choose The Device - Schedule Record DMSS.PNG

3. Select "Remote Configuration".
3. Remote Configuration - Schedule Record DMSS.PNG

4. Expand "Storage Manager" => Select "Schedule".
4. Storage Manager - Schedule Record DMSS.PNG

5. Choose the cameras that are going to be configured for schedule recordings.
5. Choose Camera - Schedule Record DMSS.PNG

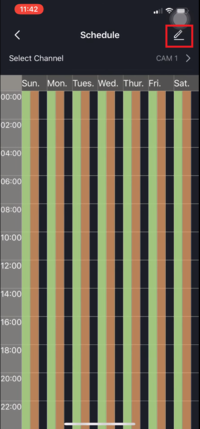

6. Select the "Pencil" to modify the recording options and date.
6. Edit Schedule - Schedule Record DMSS.PNG

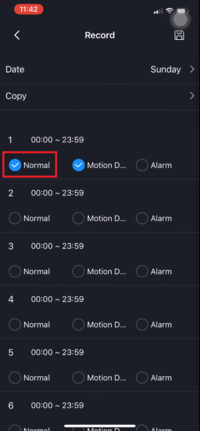

7. Enable "Normal" for continuous recordings. Select "Date" to configure which date to be recorded.
7. Enable Reocording - Schedule Record DMSS.PNG

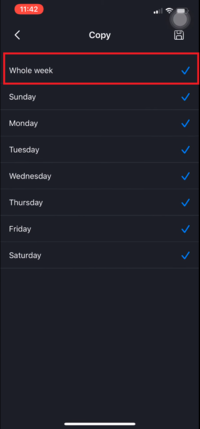

8. Select "Whole week" for 24/7 recordings. If not, choose the corresponding dates for recordings.

8. Choose Date For Recording - Schedule Record DMSS.PNG
