Record/Basic/Snapshot

Snapshot

Description

Prerequisites

Instructions

Icon for type SystemUI Old.pngSystemUI Old

How To Take Snapshots via Old SystemUI

Prerequisites

  • HDMI output or VGA output
  • Mouse

Video Instructions

Step by Step Instructions

1. Hover the mouse near the top of the camera's screen and a menu bar will appear. Press the camera icon to take snapshot and the snapshot will be stored on the computer used.
1. Snapshot Button on Specified Camera.PNG

2. Open the folder where the snapshot were stored to view them.
2. Open Snapshot Folder.PNG

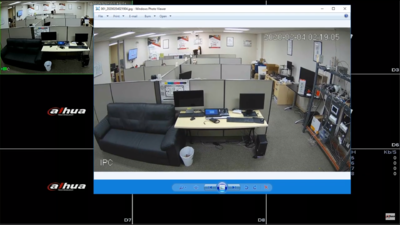

3. Viewing one of the snapshots take previously.

3. Viewing Snapshot.PNG

Icon for type SystemUI New.pngSystemUI New

How To Take Snapshots via New SystemUI

Prerequisites

  • HDMI or VGA output
  • Mouse

Video Instructions

Step by Step Instructions

1. Hover the mouse near the top of the camera's screen and a menu bar will appear. Press the camera icon to take snapshot and the snapshot will be stored on the computer used.
1. Snapshot Button on Specified Camera - Snapshot New SystemUI.PNG

2. Open the folder where the snapshot were stored to view them.
2. Open Snapshot Folder - Snapshot New SystemUI.PNG

3. Viewing one of the snapshots take previously.

3. Viewing Snapshot - Snapshot New SystemUI.PNG

Icon for type WebUI Old.pngWebUI Old

How To Take Snapshots via Old WebUI

Prerequisites

  • Internet Explorer

Video Instructions

Step by Step Instructions

1. Before taking the snapshots, make sure the folder path set on the computer is correct. By default, the path will be set to "C:\PictureDownload"
1. Check Folder Path - Snapshot Old WebUI.PNG

2. Select the camera to take snapshots and expand it into full screen. Press the camera icon located on the top right corner to take snapshots.
2. Select Camera to Take Snapshot - Snapshot Old WebUI.PNG

3. After snapshots have been taken, open the folder that contains them to view the snapshots again.

3. View Snapshot From Computer - Snapshot Old WebUI.PNG

Icon for type WebUI New.pngWebUI New

How to Take Snapshot via New WebUI

Prerequisites

  • Internet Explorer

Video Instructions

Step by Step Instructions

1. Expand "Management" and click on "Camera"
1. Camera - Snapshot New WebUI.png

2. Select "Encode" => "Path" => Default path is C:\PictureDownload
2. Snapshot Path - Snapshot New WebUI.png

3. Press the camera icon to take snapshot.
3. Press Snapshot Button - Snapshot New WebUI.png

4. Open folder on computer to view the snapshots.

4. Viewing Snapshots - Snapshot New WebUI.png

Icon for type SmartPSS.pngSmartPSS

How to Take Snapshot via SmartPSS

Prerequisites

  • SmartPSS

Video Instructions

Step by Step Instructions

1. Select the camera and expand it to full screen. Click the camera icon located on the top right corner.
1. Snapshot Button - Snapshot SmartPSS.png

2. Snapshot confirmation will be disaplyed for each snapshot and clicking on the folder icon will open the folder that contains them.
2. Snapshot Confirmation - Snapshot SmartPSS.png

3. Snapshots can be viewed once the folder has opened.

3. Viewing Snapshot - Snapshot SmartPSS.png
