SmartPSS EMap Setup

Description

This guide will show how to create an EMap using SmartPSS

Prerequisites

  • Floor Plan image in JPG format
  • SmartPSS Version 2.002.0000009
  • Several Devices Added to SmartPSS

Video Instructions

Step by Step Instructions

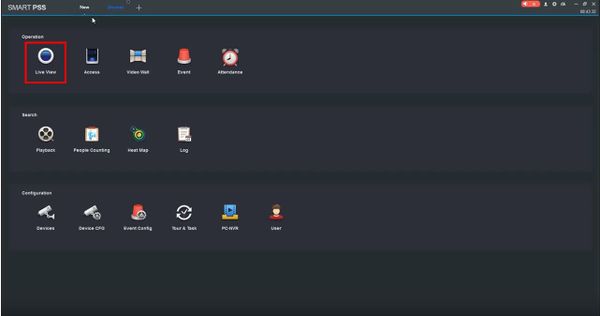

1. From the Main Page of SmartPSS click Live View

EMap Setup - SmartPSS - 1.jpg

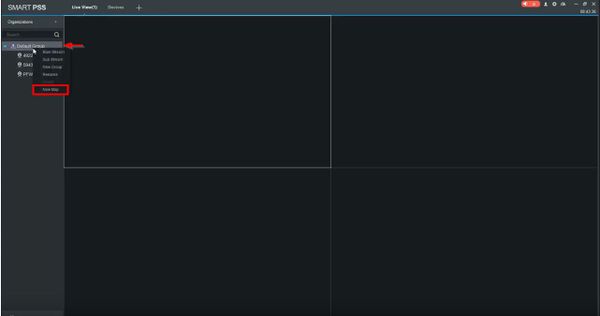

2. In the Device Tree on the left side of the screen, Right Click the Group (by default Default Group)

Select 'New Map"

EMap Setup - SmartPSS - 2.jpg

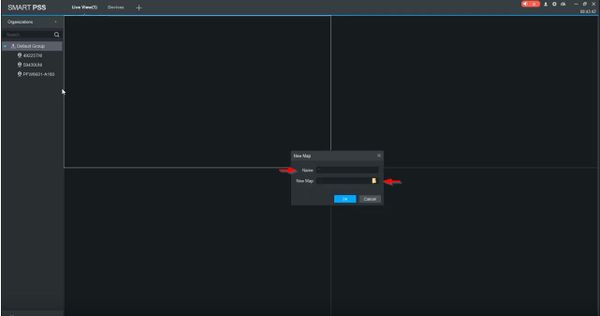

3. The New Map window will appear

Enter a name for the Map.

Click the folder icon to locate the floor plan image on the computer

EMap Setup - SmartPSS - 3.jpg

Click Open once the floor plan image has been selected

EMap Setup - SmartPSS - 4.jpg

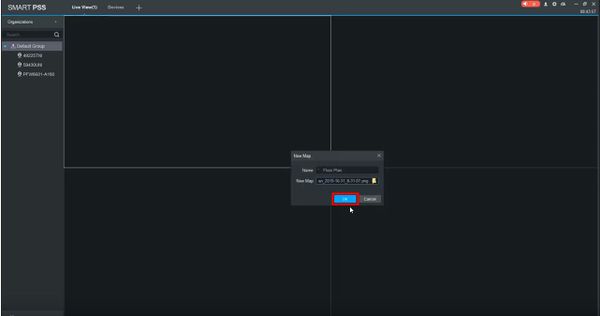

4. Click OK

EMap Setup - SmartPSS - 5.jpg

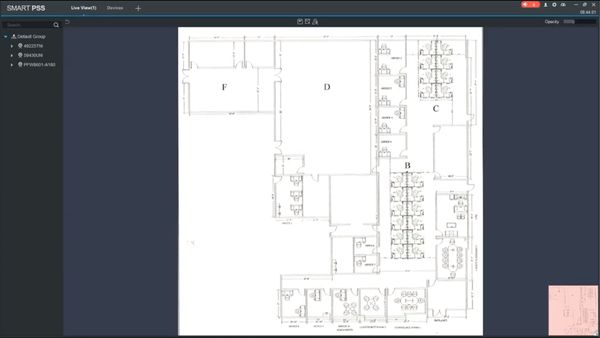

5. The floor plan image will appear once added

EMap Setup - SmartPSS - 6.jpg

6. Use the Device Tree on the left side of the screen to drag and drop devices on top of the EMap

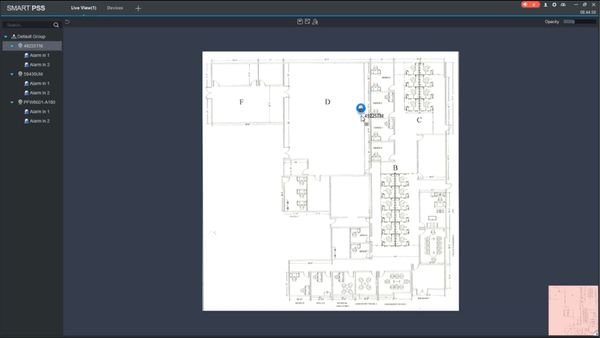

EMap Setup - SmartPSS - 7.jpg

EMap Setup - SmartPSS - 8.jpg

7. Once a camera has been added you can adjust the viewing angle and direction of the camera

EMap Setup - SmartPSS - 9.jpg

  • fov icon.jpg - Field of View
  • rotate camera icon.jpg - Rotate camera


8. Continue to add devices as desired

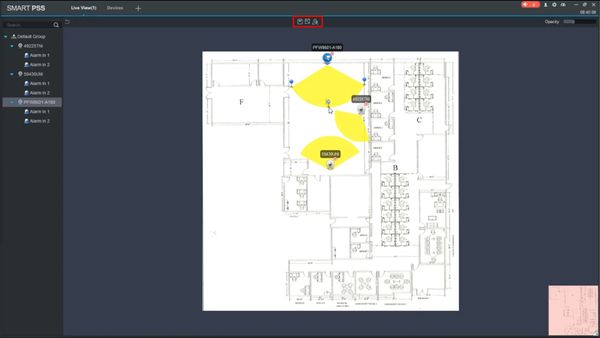

Click the Save icon save icon.jpg at the top of the screen to Save the EMap

EMap Setup - SmartPSS - 10.jpg

9. Click the Return arrow return icon.jpg in the top left of the screen to return to Live View

EMap Setup - SmartPSS - 11.jpg

10. The EMap will now appear in the Device List

EMap Setup - SmartPSS - 12.jpg

11. Double click or drag and drop the EMap to an open window to display

EMap Setup - SmartPSS - 13.jpg

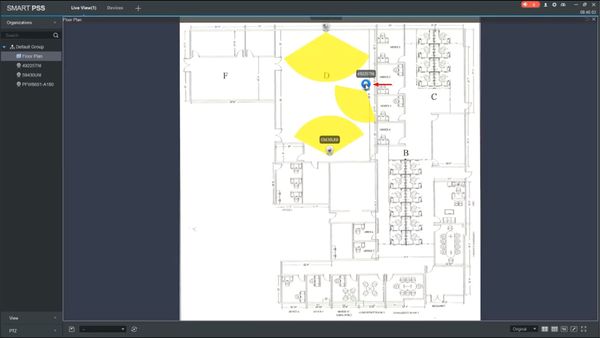

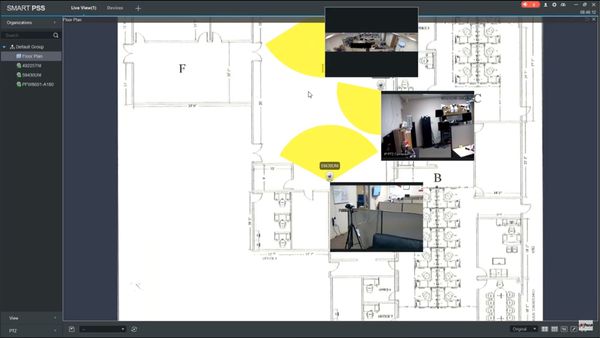

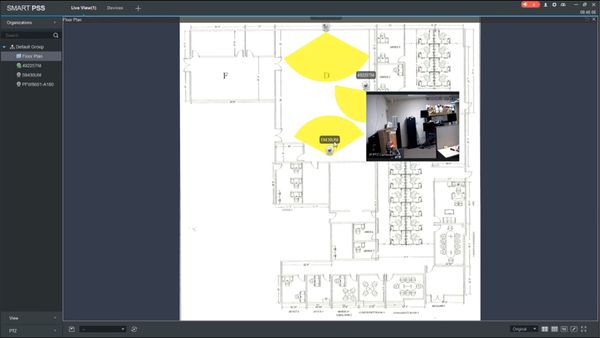

12. Click a Camera's icon to open the Video Stream for this device

EMap Setup - SmartPSS - 14.jpg

EMap Setup - SmartPSS - 15.jpg

EMap Setup - SmartPSS - 16.jpg
