How To Use PTZ Tour In SmartPSS

Description

This article will show you how to setup and use PTZ Tour in SmartPSS 2.0

Prerequisites

Video Instructions

Step by Step Instructions

1. Launch SmartPSS.

Preset SmartPSS 1.jpg

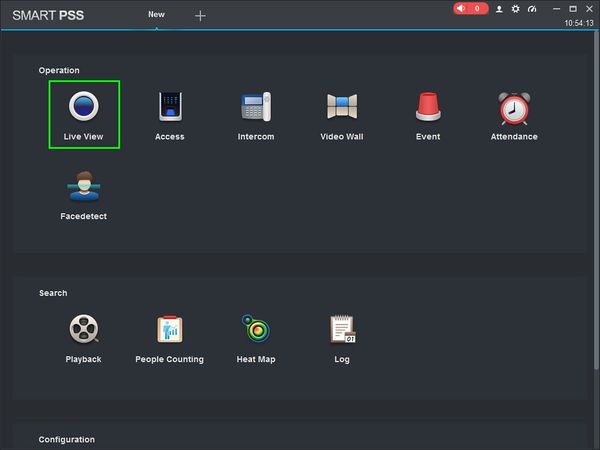

2. Click 'Live View'

Setup Tour SmartPSS - 2.jpg

3. Double Click the PTZ on the device list on the left side of the screen, then double click the video pane to bring the feed up in full screen

Setup Tour SmartPSS - 3.jpg

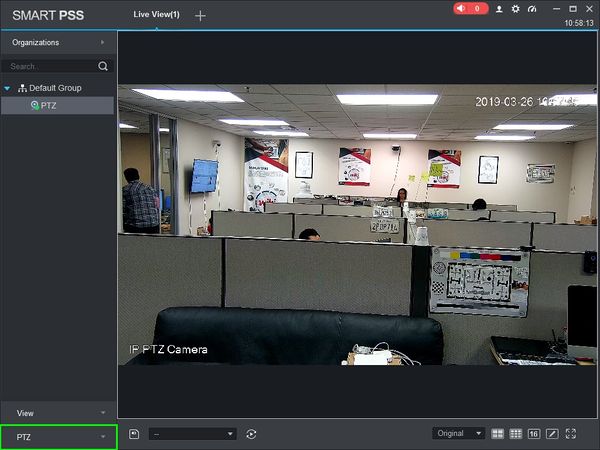

4. Click 'PTZ'

Setup Tour SmartPSS - 4.jpg

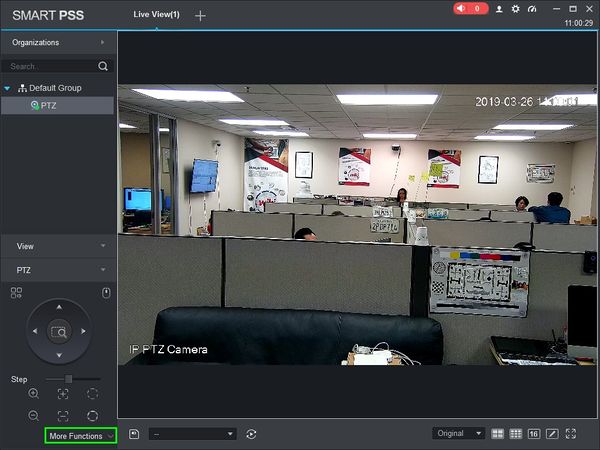

5. Click 'More Functions' in the lower portion of the screen

Setup Tour SmartPSS - 5.jpg

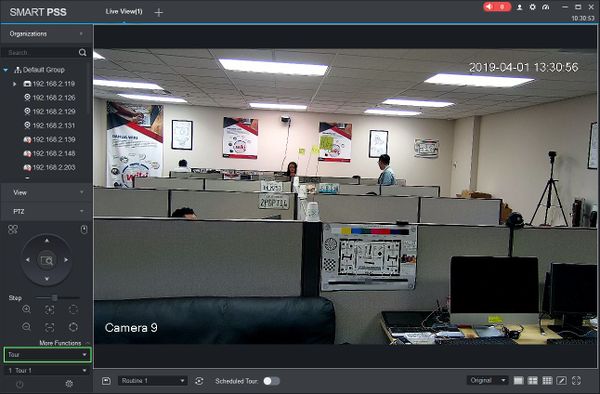

6. Use the drop-down menu to select 'Tour'

Setup Tour SmartPSS 13.jpg

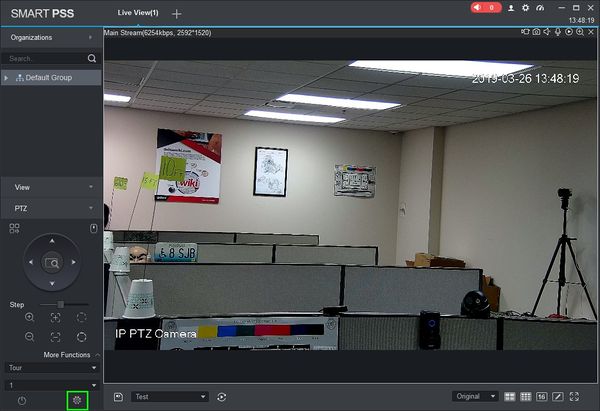

7. Click the Gear icon

Setup Tour SmartPSS - 7.jpg

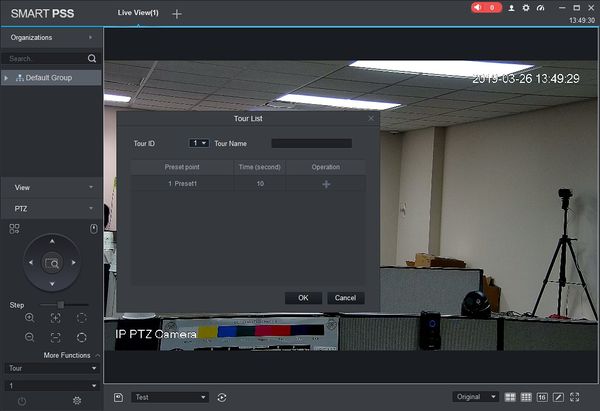

8. The Tour sub-menu will open. Select the Tour ID you wish to edit and enter a Tour Name

Setup Tour SmartPSS - 8.jpg

9. Use the Tour sub-menu to program the tour:

  • Preset point - Double click to select a preset point to add to the tour
  • Time (second) - Time (in seconds) for the camera to remain at the selected preset
  • Operation - Click the + / Plus icon to add a preset to the Tour. Click the - / Minus icon to remove a preset from the tour.

Setup Tour SmartPSS - 9.jpg

Setup Tour SmartPSS - 10.jpg

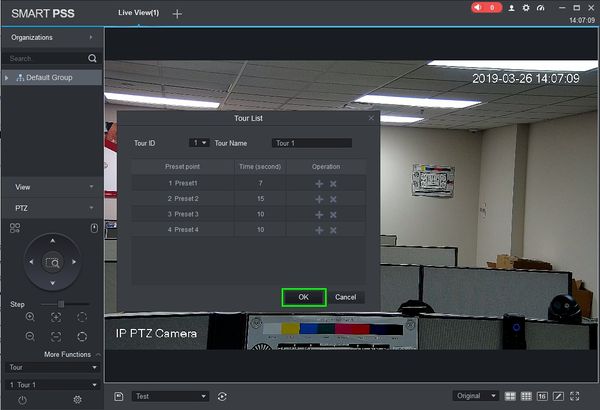

10. Once you have finished tour setup click OK to save.

Setup Tour SmartPSS - 11.jpg

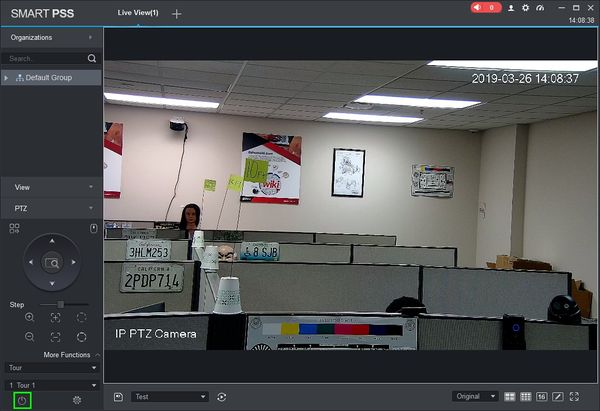

11. On the Live View window, click the Start icon to begin the tour

Setup Tour SmartPSS - 12.jpg
