How To Import/Export Devices In SmartPSS

Description

This article will show you how to import and export all devices in SmartPSS 2.0

Prerequisites

Video Instructions

Step by Step Instructions

Export Device List

1. Launch SmartPSS.

Preset SmartPSS 1.jpg

2. Click Devices

How To Export Device List SmartPSS - 1.jpg


3. Click Export to export all currently added devices

How To Export Device List SmartPSS - 2.jpg

4. The Device Export window will appear. Click the folder icon to set the local path on the computer to save the exported device list to

How To Export Device List SmartPSS - 3.jpg

5. Click Export to begin the device export.

How To Export Device List SmartPSS - 4.jpg


Import Device List

1. Launch SmartPSS.

Preset SmartPSS 1.jpg

2. Click Devices

How To Export Device List SmartPSS - 1.jpg

3. Click Import

How To Import Device List SmartPSS - 1.jpg

4. The Device Import window will appear. Click the folder icon.

How To Import Device List SmartPSS - 2.jpg

5. Use the file dialogue window to locate the the Device Export file on the computer

How To Import Device List SmartPSS - 3.jpg

6. Click Import

How To Import Device List SmartPSS - 4.jpg

7. A prompt will display confirming a successful device import

How To Import Device List SmartPSS - 5.jpg

SmartPSS 2.0: Import and Export a Device List

Description

This guide will present information about importing or exporting all of the devices in SmartPSS2.0. This device list is compatible with SmartPSS 1.16.1 as well.

Prerequisites

  • SmartPSS 2.0 (preferably)
  • Remote or local cameras for connection

Video Instructions

Step by Step Instructions

Import

1. Open SmartPSS 2.0 and select Devices.


2. Select Import, then select the folder icon to access file explorer.

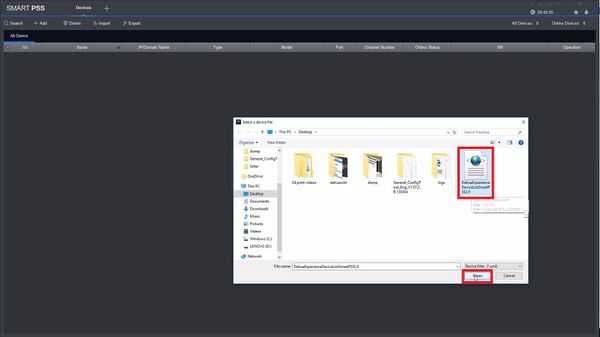

3. Select the XML file that contains your device list, or exported device list, then select open.

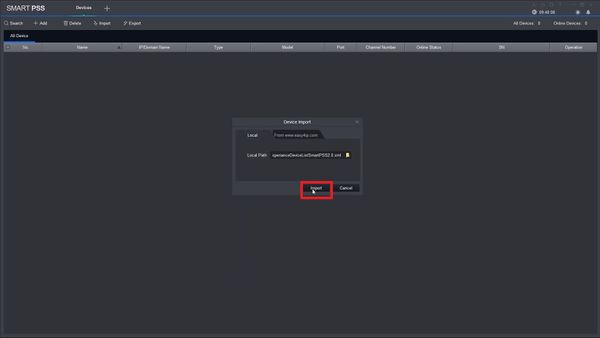

4. Select Import.

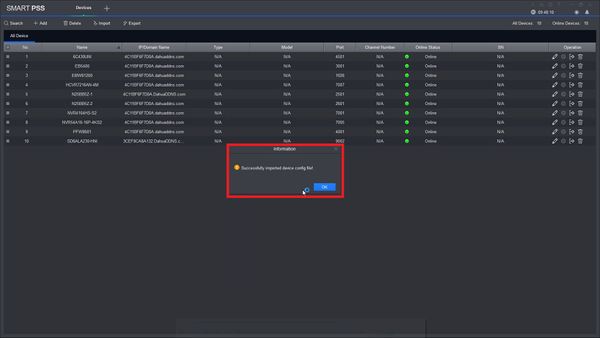

5. Select, OK and enjoy!


Export

1. Open SmartPSS 2.0 and select Devices.

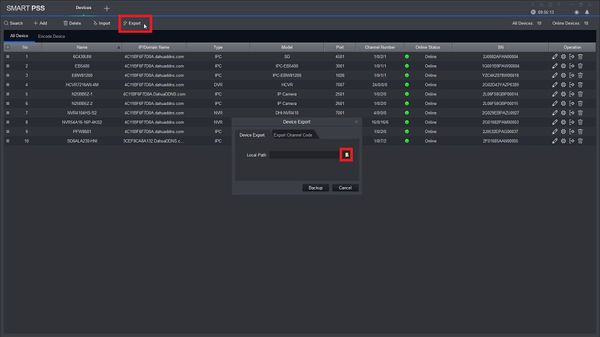

2. Select Export, then select the folder icon to open up file explorer.

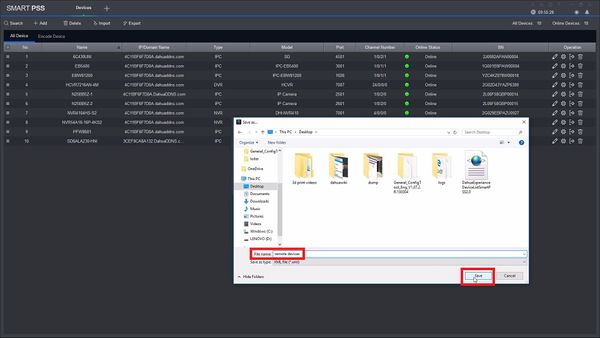

3. Select the directory that you want the file to be saved into, you may also name the file, then click save.

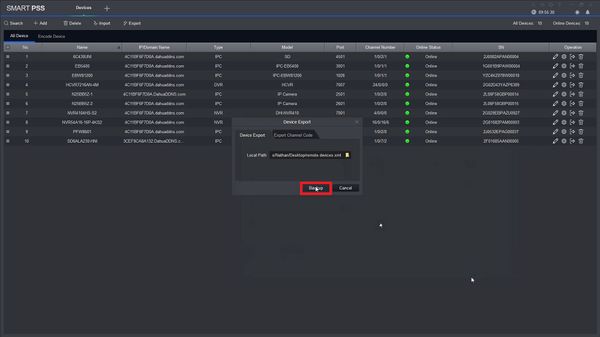

4. To complete the process select Backup.

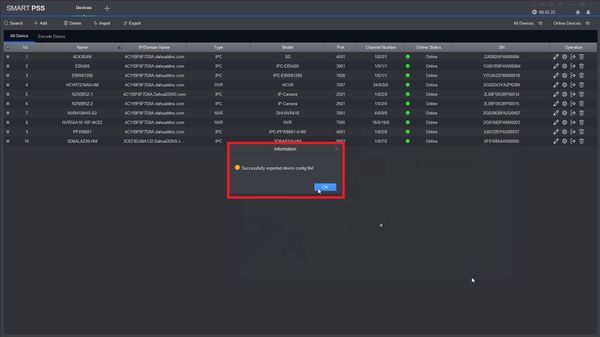

5. Select OK after getting a "Successfully exported device config file!" Information.
