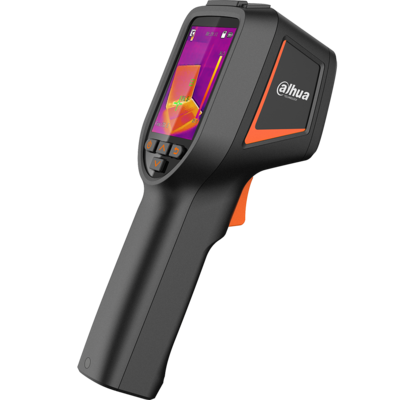

DH TPC HT2201 image web.png

Features

  • 256 x 192 Uncooled VOx Thermal Sensor Technology
  • 3.5 mm Fixed Athermalized Lens, Focus-free
  • ±0.5° C (±0.9° F) Temperature Accuracy
  • ≤ 50 mK Thermal Sensitivity
  • Contactless Temperature Measurement
  • Connect Handheld Device to a Computer and Monitor via USB
  • Rechargeable Lithium-Ion Battery
  • IP54 Ingress Protection
  • Three-year Warranty*

Interface

Front Panel

No. Component Description DH-TPC-HT2201 Front2020-09-15 102842.png
1. Display Screen Display screen Displays live interface and menu interface.
2. Power button
  • Press and hold the power button to power on or off the Camera.
  • On the live interface, press the power button, and the Camera goes to the standby state; under standby state, press any button to wake up the Camera.
  • On the menu interface, press the power button to go to the submenu interface.
3. Up/Down buttons
  • On the live interface, press the up button to go to the menu interface.
  • On the menu interface, press the up or down buttons to select parameters.
4. Back button

Exit or return to the previous menu.

Side Panel

No. Component Description DH-TPC-HT2201 Side2020-09-15 102842.png
1. Wrist rope hole Used for threading wrist rope.
2. Tripod port Used for installing a tripod.
3. Silicon plug
4. Charging indicator light

Charging: Red light on.

  • Full charging: Green light on. The battery can be recharged repeatedly, but it is a wearable product. If the standby time of the Camera has been greatly reduced, please contact the after-sales support to replace the battery.
5. USB port Used for connecting the USB cable.
6. SD card slot Used for installing a SD card.
7. Thermal lens Used for monitoring.
8. Trigger button

On the live interface, press the button twice to capture images.

  • On the live interface, press the button 3 times to start recording, and then press 3 times to stop recording.
  • On the menu interface, press the button to return to the live interface.
  • Under standby state, press the button to wake up the Camera.
