How to access DH-TPC-HT2201 from PC

Description

This article is to show user how to access DH-TPC-HT2201 live view and settings menu from PC.

1. DH-TPC-HT2201 powered on.

2. DH-Thermal Software. Click here to download.

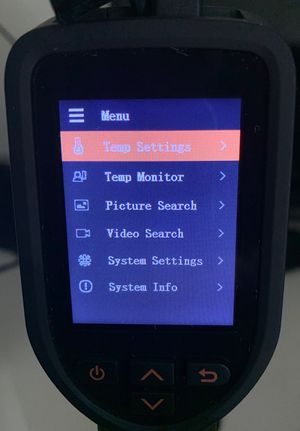

1. Go to Main Menu in handheld device by pressing arrow up button.

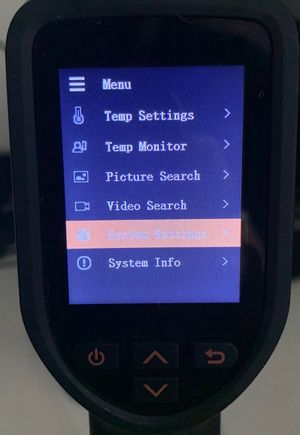

2. Go to System Settings, and then press the power button to enter the menu.

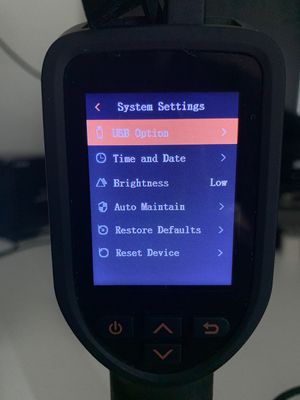

3. Press on the power button again to enter to USB Option.

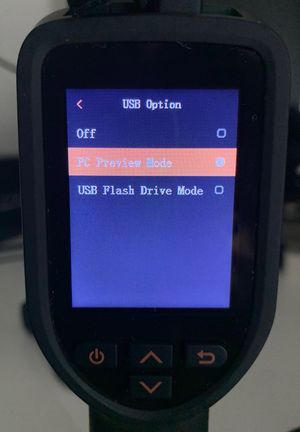

4. Select PC Preview Mode, and then press on power button again to set.

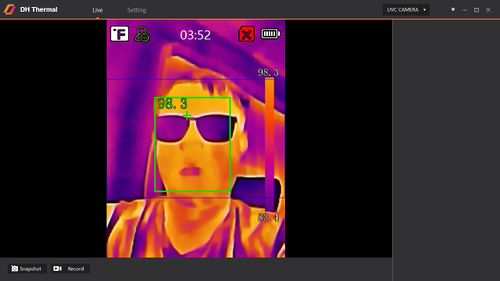

5. You will be able to see your camera live view display in DH-Thermal Software.

6. On the handheld device, keep pressing back button to return to live view.
