How to Setup Alarm Threshold

Description

This article covers how to adjust the Temperature Alarm Threshold on a DH-TPC-HT2201

Prerequisites

  • DH-TPC-HT2201

Video Instructions

Step by Step Instructions

1. Open the Main Menu by pressing the Up DH-TPC-HT2201 Up Button.jpg button

DH-TPC-HT2201 FormatSDCard4.PNG

2. Using the Up DH-TPC-HT2201 Up Button.jpg and Down DH-TPC-HT2201 Down Button.jpg buttons, highlight "Temp Monitor".
Then press the power DH-TPC-HT2201 Power Button.jpg button to enter that menu

DH-TPC-HT2201 TempMonitorMode2.PNG

3. Using the Up DH-TPC-HT2201 Up Button.jpg and Down DH-TPC-HT2201 Down Button.jpg buttons, highlight "Alarm Settings".
Then press the power DH-TPC-HT2201 Power Button.jpg button to enter that menu

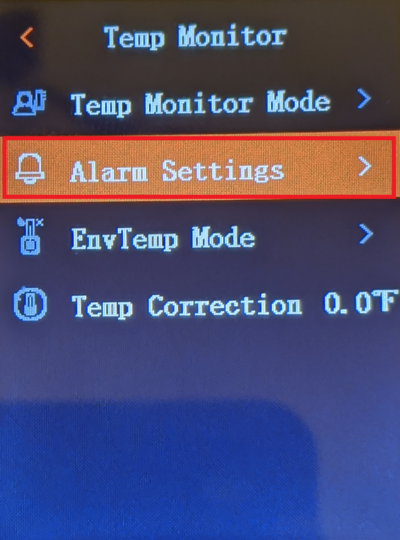

DH-TPC-HT2201 AlarmThreshold2.PNG

4. The "Alarm Threshold" option should already be highlighted.
Press the power DH-TPC-HT2201 Power Button.jpg button to enter the menu to modify that setting

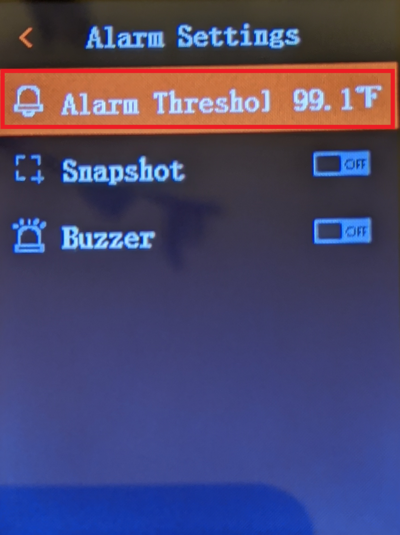

DH-TPC-HT2201 AlarmThreshold3.PNG

5. The first part of the temperature should already be highlighted on the left.
Press the power DH-TPC-HT2201 Power Button.jpg button to switch to editing mode for that part of the temperature setting

DH-TPC-HT2201 AlarmThreshold4.PNG

6. Using the Up DH-TPC-HT2201 Up Button.jpg and Down DH-TPC-HT2201 Down Button.jpg buttons, adjust the first part of the temperature setting to the desired value.
Press the power DH-TPC-HT2201 Power Button.jpg button to save that value and go to the next part of the temperature setting

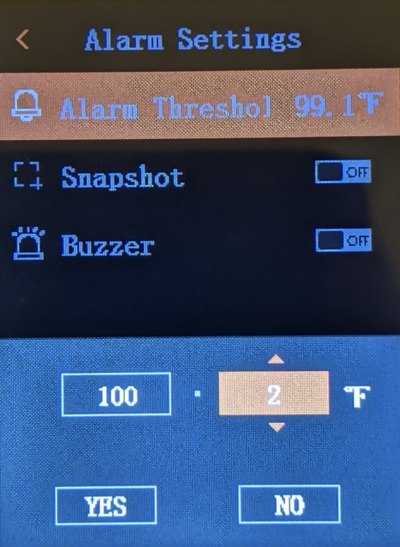

DH-TPC-HT2201 AlarmThreshold5.PNG

7. Using the Up DH-TPC-HT2201 Up Button.jpg and Down DH-TPC-HT2201 Down Button.jpg buttons, adjust the second part of the temperature setting to the desired value.
Press the power DH-TPC-HT2201 Power Button.jpg button to save that value

DH-TPC-HT2201 AlarmThreshold6.PNG

8. The "Yes" option should already be highlighted.
Press the power DH-TPC-HT2201 Power Button.jpg button to save the Alarm Threshold as the temperature above

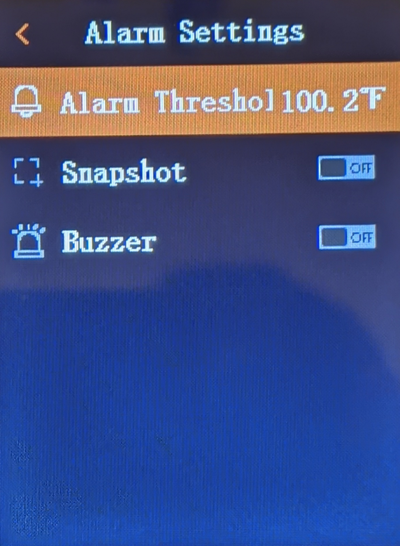

DH-TPC-HT2201 AlarmThreshold7.PNG DH-TPC-HT2201 AlarmThreshold8.PNG

9. Using the Up DH-TPC-HT2201 Up Button.jpg and Down DH-TPC-HT2201 Down Button.jpg buttons, highlight "Snapshot".
Then press the power DH-TPC-HT2201 Power Button.jpg button to enable the Handheld Thermal Device to automatically take a snapshot whenever a temperature is detected above the Alarm Threshold.
It will says "It would reduce time usage!" Press the power DH-TPC-HT2201 Power Button.jpg button to confirm the Snapshot setting

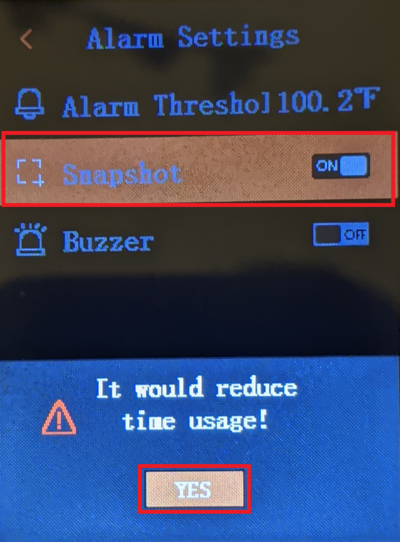

DH-TPC-HT2201 AlarmThreshold9.PNG

10. The Snaphshot setting should show "ON" to the right of it, if the setting was enabled successfully

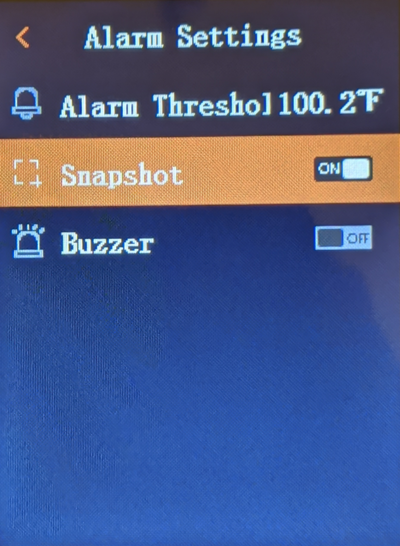

DH-TPC-HT2201 AlarmThreshold10.PNG

11. Using the Up DH-TPC-HT2201 Up Button.jpg and Down DH-TPC-HT2201 Down Button.jpg buttons, highlight "Buzzer".
Then press the power DH-TPC-HT2201 Power Button.jpg button to enable the device to make an audible beeping noise whenever a temperature is detected above the Alarm Threshold.
It will says "It would reduce time usage!" Press the power DH-TPC-HT2201 Power Button.jpg button to confirm the Snapshot setting

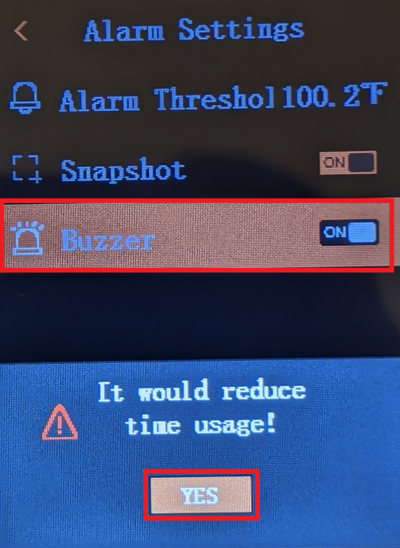

DH-TPC-HT2201 AlarmThreshold11.PNG

12. The Buzzer setting should show "ON" to the right of it, if the setting was enabled successfully

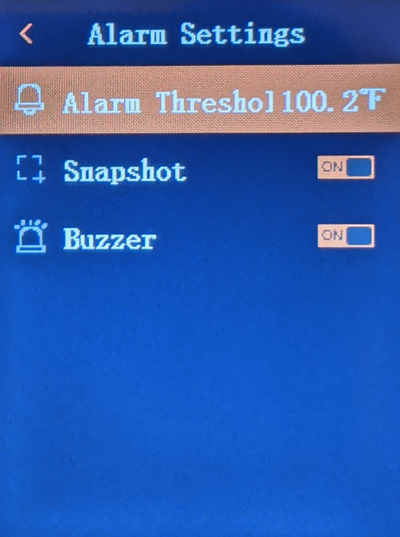

DH-TPC-HT2201 AlarmThreshold12.PNG
