How to Format the SD Card

Description

This article covers how to format an SD Card installed in a DH-TPC-HT2201

Prerequisites

  • DH-TPC-HT2201
  • A micro SD Card

PLEASE NOTE: Micro SD Card MUST be Micro SD HC. Micro SD XC is not compatible.

Video Instructions

Step by Step Instructions

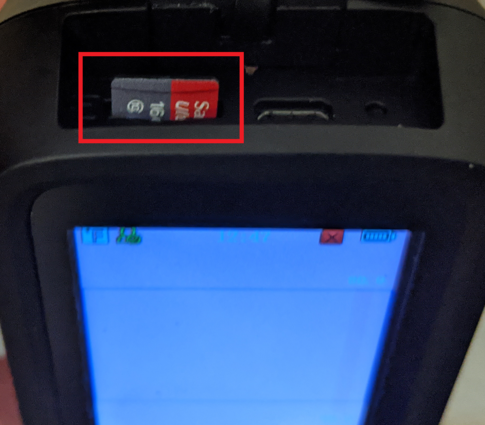

1 . Insert the Micro SD card into the Micro SD Card slot at the top of the Handheld Thermal Temperature Monitoring Device

DH-TPC-HT2201 FormatSDCard1.PNG DH-TPC-HT2201 FormatSDCard2.PNG

2. Check the monitor on the device to see that the Micro SD Card was inserted correctly.
If it was inserted correclty, you will see an SD Card icon at the top right

DH-TPC-HT2201 FormatSDCard3.PNG

3. Open the Main Menu by pressing the Up DH-TPC-HT2201 Up Button.jpg button

DH-TPC-HT2201 FormatSDCard4.PNG

4. Using the Up DH-TPC-HT2201 Up Button.jpg and Down DH-TPC-HT2201 Down Button.jpg buttons, highlight "System Info".
Then press the power DH-TPC-HT2201 Power Button.jpg button to enter that menu

DH-TPC-HT2201 FormatSDCard5.PNG

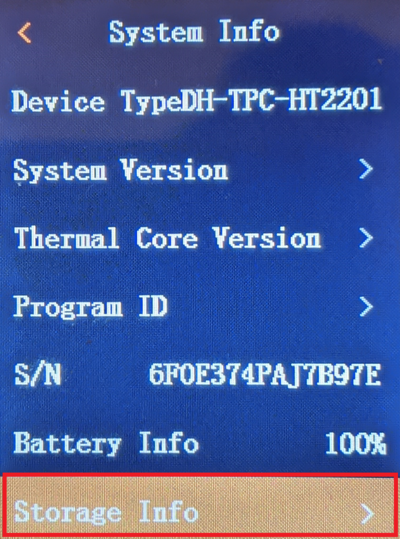

5. Using the Up DH-TPC-HT2201 Up Button.jpg and Down DH-TPC-HT2201 Down Button.jpg buttons, highlight "Storage Info".
Press the power DH-TPC-HT2201 Power Button.jpg button to enter that menu

DH-TPC-HT2201 FormatSDCard6.PNG

6. "Format SD Card" should already be selected.
Press the power DH-TPC-HT2201 Power Button.jpg button to format the Micro SD Card that is in the Thermal Device

DH-TPC-HT2201 FormatSDCard7.PNG

7. Using the Up DH-TPC-HT2201 Up Button.jpg and Down DH-TPC-HT2201 Down Button.jpg buttons, highlight "Yes".
Then press the power DH-TPC-HT2201 Power Button.jpg button to confirm formatting the Micro SD Card

DH-TPC-HT2201 FormatSDCard8.PNG

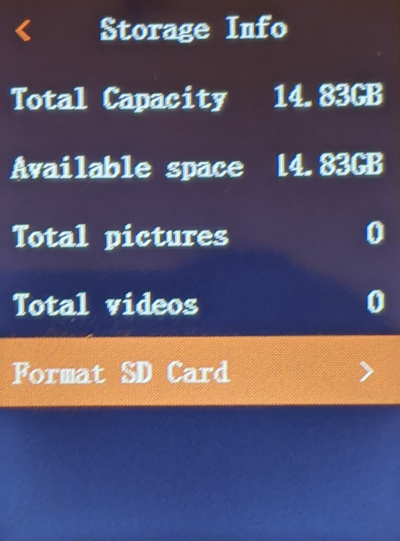

8. Once the formatting of the Micro SD Card is complete, you should see the Storage Info sceen with the same Total Capacity as Available Capacity

DH-TPC-HT2201 FormatSDCard9.PNG
