How to Adjust Temperature Correction

Description

This article will cover how to change the temperature correction settings on the DHI-TPC-HT2201. This feature should only be used in the event that readings are coming up irregular and the have been verified to be inaccurate with another means of testing.

Prerequisites

  • DH-TPC-HT2201

Video Instructions

Step by Step Instructions

1. From the home screen, press the DH-TPC-HT2201 Up Button.jpg button to enter the menu, select Temp Monitor by pressing DH-TPC-HT2201 Power Button.jpg

HT2201 TempC 1.jpg


2. In temp monitor select Temp Correction and press DH-TPC-HT2201 Power Button.jpg to open the settings configuration.

HT2201 TempC 2.jpg

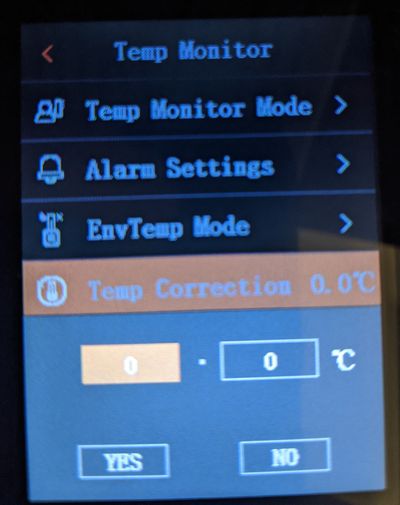

3. In this menu press DH-TPC-HT2201 Power Button.jpg while on a selected field and use DH-TPC-HT2201 Up Button.jpg & DH-TPC-HT2201 Down Button.jpg to add or remove temp value. Positive values add temperature to readings while negative will remove.

HT2201 TempC 3.jpg
