Add DHI-ASI7213X-T1 to DHI-NVR5216-16P-I
Description
These instructions will show how to add the DHI-ASI7213X-T1 to the DHI-NVR5216-16P-I and setup the device for Live Preview - AI Mode
Prerequisites
- DHI-ASI7213X-T1 set up and configured on network
- DHI-NVR5216-16P-I with latest firmware V4.000.10BE000.1.R.20200528
Video Instructions
Step by Step Instructions
Add DHI-ASI7213X-T1 to NVR
1. Enter the IP address of the NVR into Internet Explorer
Enter the username and password
Click Login
2. Click Management
3. Select Camera
4. Click Manual Add
5. Enter the IP Address of the device
Enter the admin password
Click OK

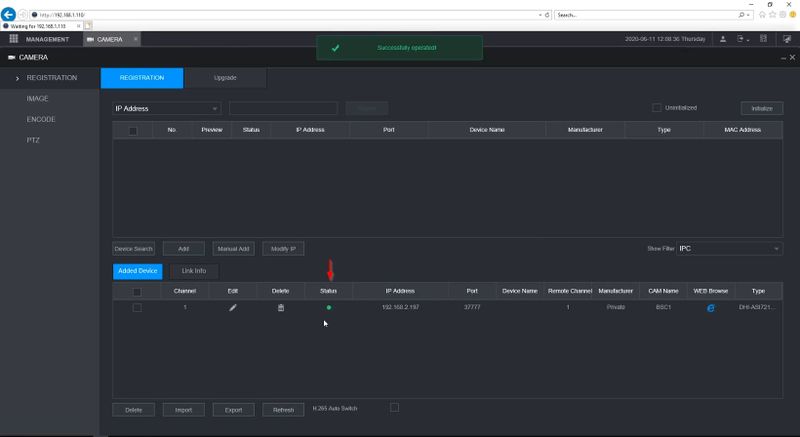

The device will appear in the list
Click Refresh until the Status shows Green / Connected
Configure Storage
The NVR Storage settings must be configured for the channel the DHI-ASI7213X-T1 is added as.
From the Main Menu click Management > Storage
Click Schedule
Use the dropdown box to select the channel the device is added to
Click Setting

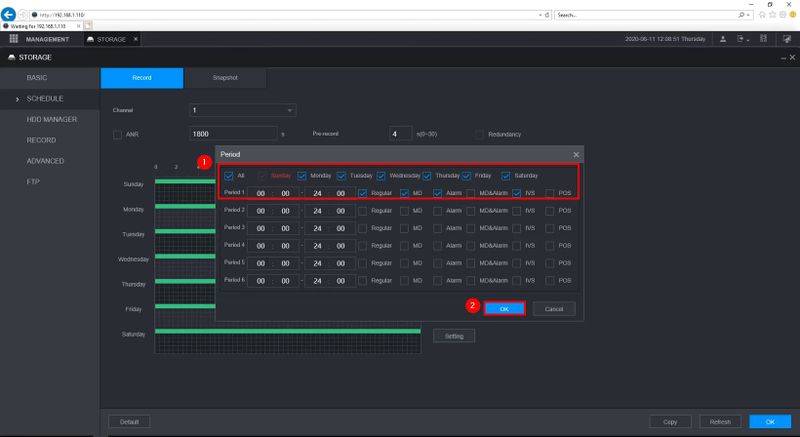

Check to enable all days
Select the event types shown
Click OK
Click OK to save

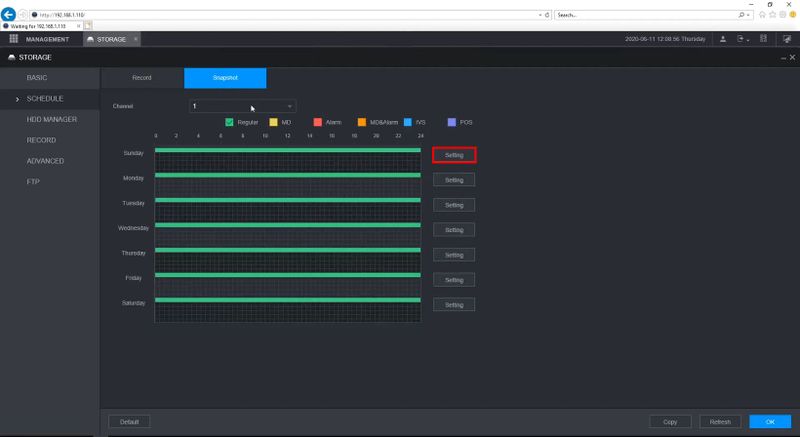

Click Snapshot tab
Click Setting
Check to enable all days
Select the event types shown
Click OK
Click OK to save

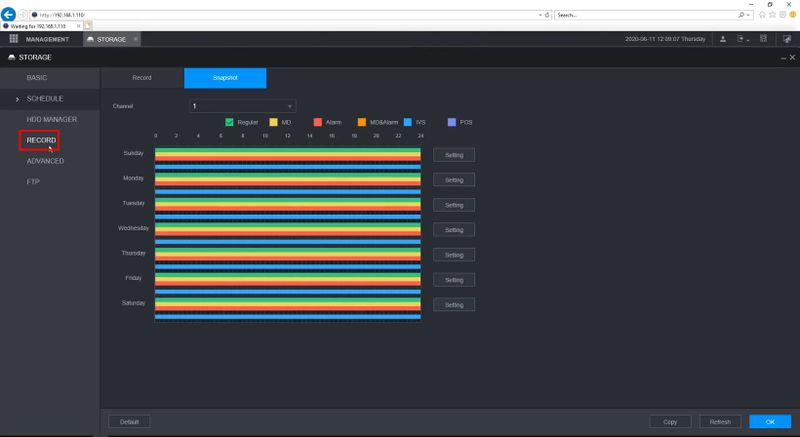

Click Record

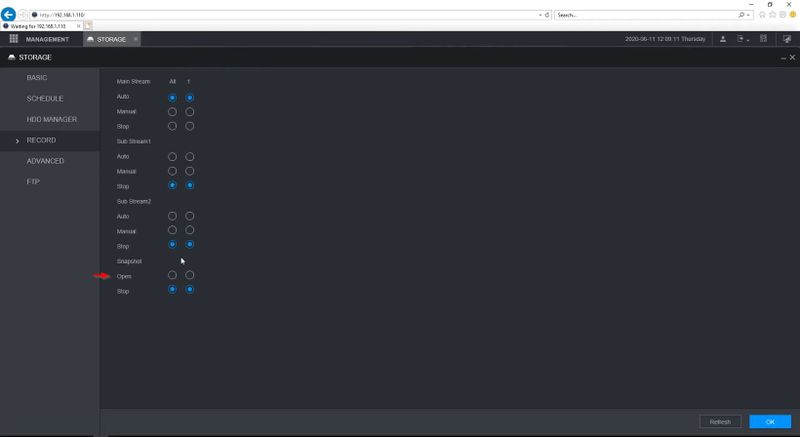

Under Snapshot
Make sure Open is selected
Click OK to save
Configure AI
1. From the Main Menu
Click AI
2. Click Parameters > Select the Highlighted Area
3. Check the box to enable
Click OK
4. Click Door AccessControl
This menu will display all options for configuring events from the DHI-ASI7213X-T1

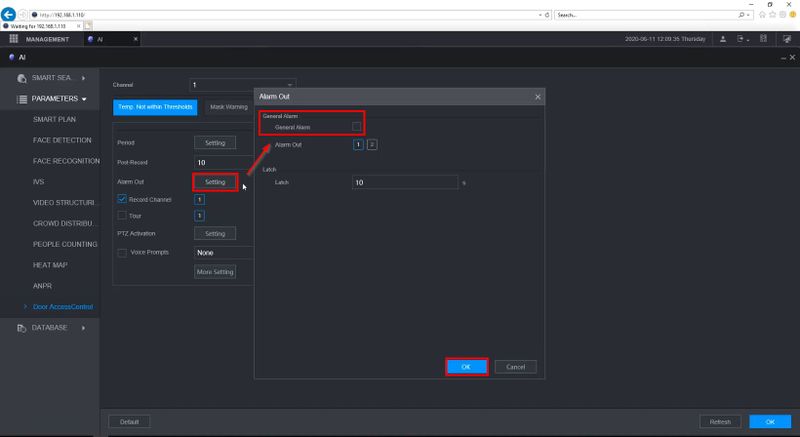

Click Setting
Enable General Alarm
Click More Setting
TO find options for Buzzer, Email Notifications, and Log
Click OK to save
