Thermal/DHI-ASI7213X-T1/Instructions/Check System Log

Check System Log

Description

Prerequisites

Video Instructions

Step by Step Instructions

1. Type the IP address of the device into a web browser

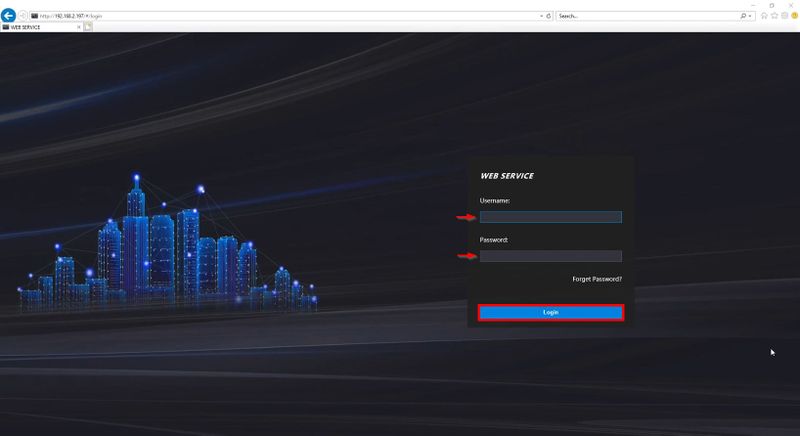

At the log in screen enter the username and password then click Login

Dahua Thermal Solution DHI ASI7213X T1 WebUI Check System Log.jpg

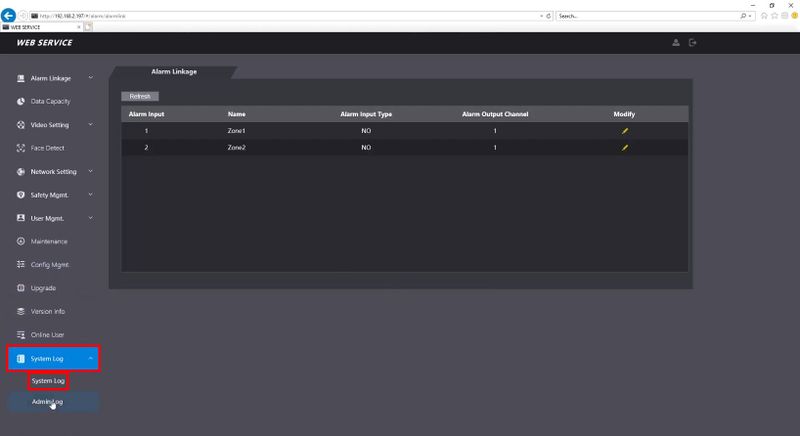

2. Click System Log

Dahua Thermal Solution DHI ASI7213X T1 WebUI Check System Log - 2.jpg

3. Click the Date Range field then use the interface to select the Time Range for the search. Click OK

Dahua Thermal Solution DHI ASI7213X T1 WebUI Check System Log - 3.jpg

4. Click the dropdown box next to Type and select the Log type to search for. Click Query

Dahua Thermal Solution DHI ASI7213X T1 WebUI Check System Log - 4.jpg

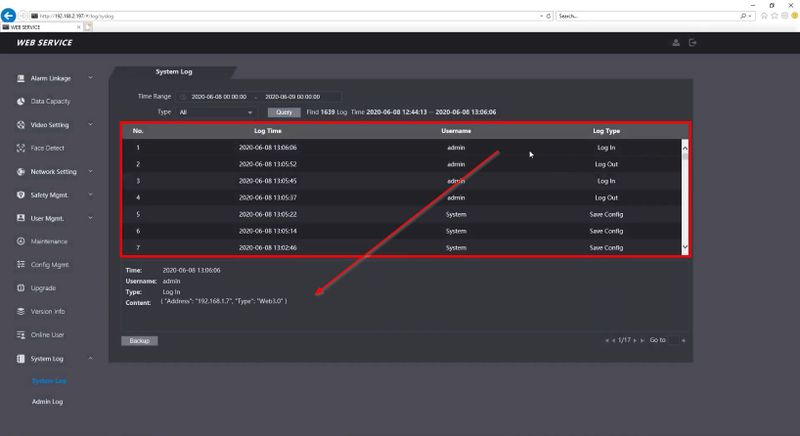

The results will be displayed

Click on an event for details

Dahua Thermal Solution DHI ASI7213X T1 WebUI Check System Log - 5.jpg
