Thermal/DHI-ASI7213X-T1/Instructions/Disable Local Coding

How to Disable Local Coding

Description

With the introduction of firmware version 1.000.10BE001.0.R.200722, the Kiosk now has Local Decoding enabled by default.
This will crop a portion of the live view and will output the cropped image as the live stream. Both Main Stream and Sub Stream are affected by the local coding.

This article will go over the process to disable local coding.

Video Instructions


Step by Step Instructions

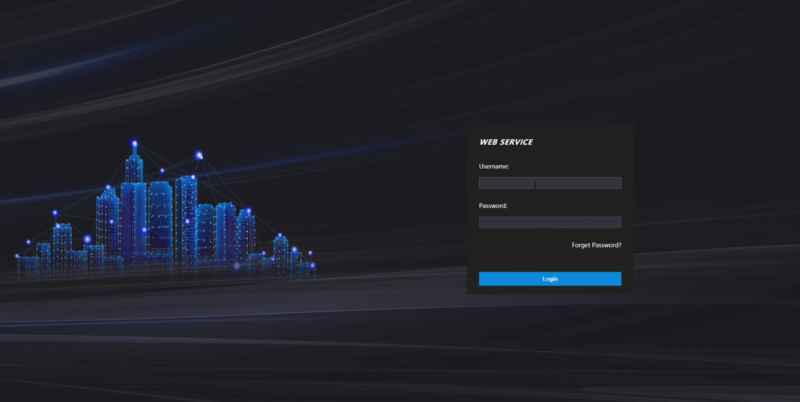

1. Login to the WEBUI of the Kiosk

Kiosk Disable Local Coding-1.png

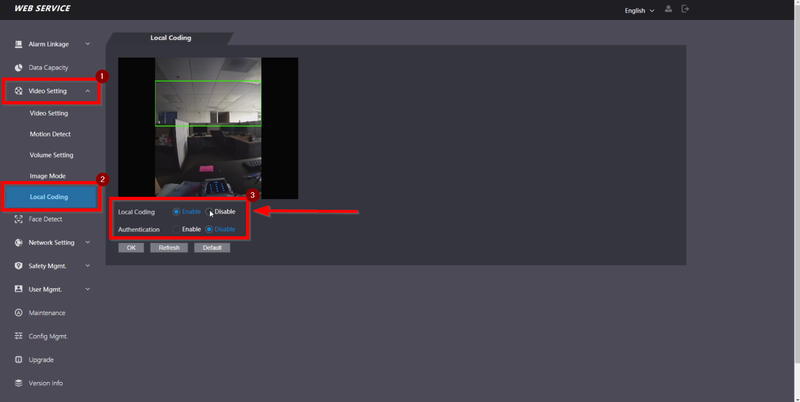

2. Navigate to:
Vide Settings -> Local Coding

Disable Local Coding and click okay to save

Kiosk Disable Local Coding-2.png

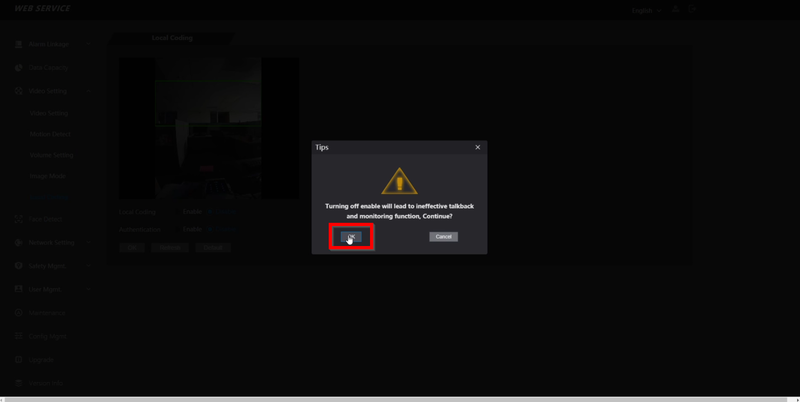

3. Confirm the alert by hitting okay

Kiosk Disable Local Coding-3.png

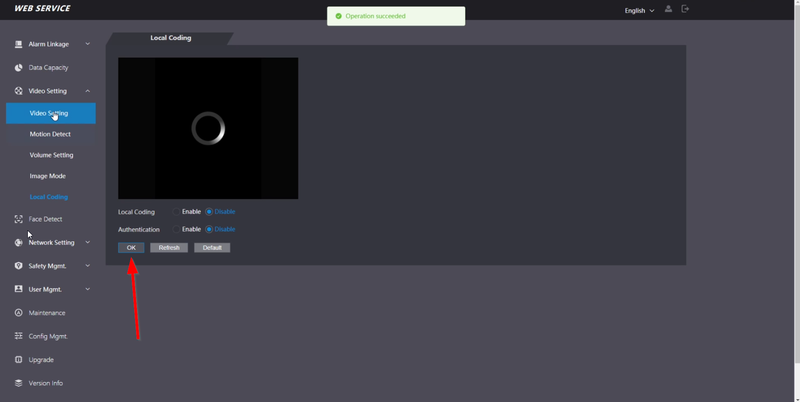

4. Click "OK" to save the settings

Kiosk Disable Local Coding-4.png

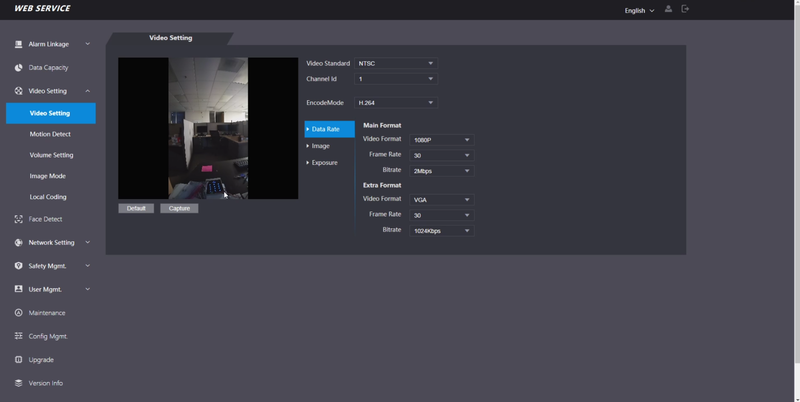

5. The stream will now now show it's original format

Kiosk Disable Local Coding-5.png
