DHI-ASI7213X-T1 Physical Installation

Description

This guide will cover the physical installation of the thermal monitoring station.

Prerequisites

Step by Step Instruction

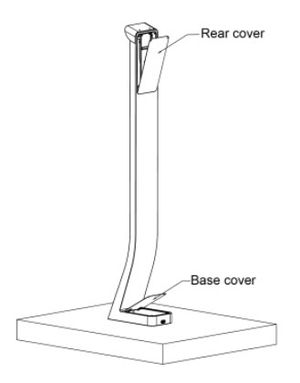

1. Remove the 2 screws on the rear cover, and then open it.

ASF072X-T1 Base Rear Cover.jpg

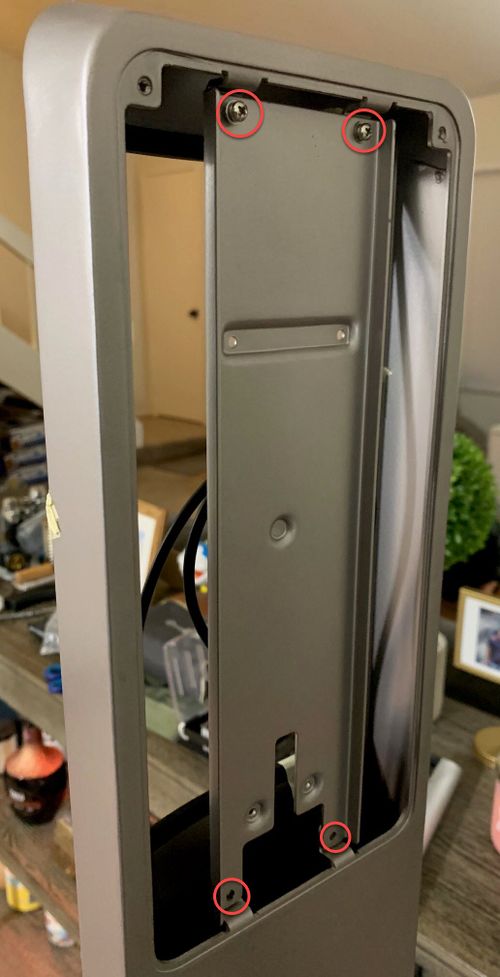

2. You will see 4 screws attached to the mounting plate. Remove all 4 screws.

DHI-ASI7213X-T1 Mounting Plate.jpg

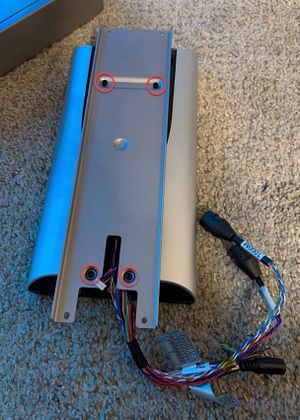

3. Attach the mounting plate to DHI-ASI7213X-T1 unit.

DHI-ASI7213X-T1 Mounting Plate Attached.jpg

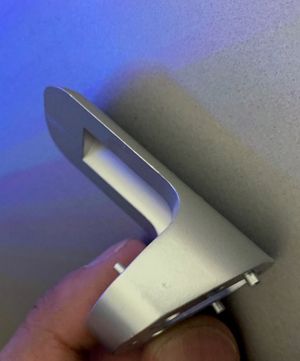

4. Using the adapter provided, secure the temperature monitoring unit using the 2 screws.

ASF072X-T1 Thermal Bracket.jpg

5. Attach the adapter on the top of the bracket with 3 screws.

ASF072X-T1 Thermal Bracket Installation.jpg

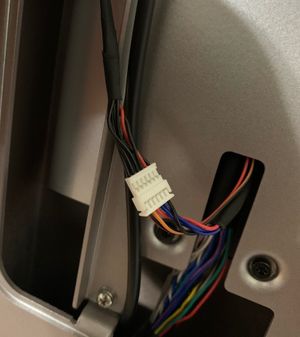

6. Connect temperature monitoring unit to DHI-ASI7213X-T1.

DHI-ASI7213X-T1 Thermal Unit Connector.jpg

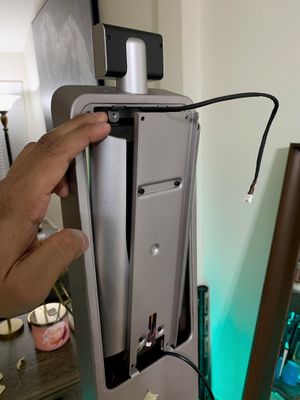

6. Place the mounting plate (with thermal station attached to it) to the bracket. Secure all 4 screws that removed on step 2. Ensure that thermal station is fitting right with the front rubber gasket.

ASF072X-T1 Mounting Plate Attached.jpg

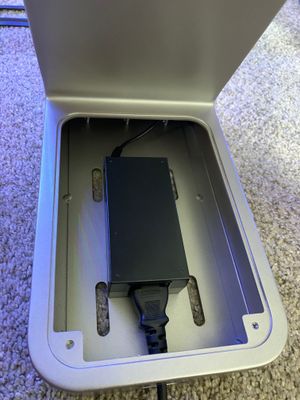

7. Connect cables for the thermal station device. Power adapter will be placed underneath the base cover, there is a power wire provided to connect power to Kiosk device.

 Note: The power adapter wire that comes with the DHI-ASI7213X-T1 is long enough to connect all the way up to thermal station.

ASF072X-T1 Power Adapter.jpg

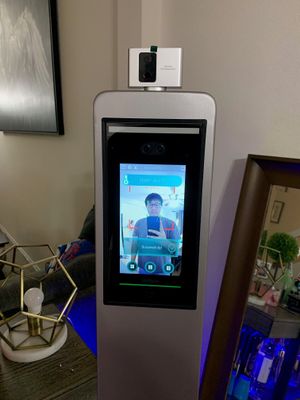

8. Install the rear cover and base cover. and then connect the power to turn on thermal station device.

ASF072X-T1 Installed.jpg
