DHI-ASI7213X-T1 Questionnaire Setup

Description

This guide will cover how to setup the Questionnaire feature for DHI-ASI7213X-T1

Firmware version 1220786_Customer_ASI72XXX_EngFrn_NP_V1.000.10BE002.0.R.200904 adds the Questionnaire Feature

The purpose is to display the questionnaire and have a customer to answer the following questions to the receptionist.


Prerequisites

  • DHI-ASI7213X-T1 (Firmware Version 1220786_Customer_ASI72XXX_EngFrn_NP_V1.000.10BE002.0.R.200904)
  • Device connected to network
  • Local computer to access webUI

Video Demo

Video Instruction

Step by Step Instruction

1. Login to the DHI-ASI7213X-T1 webUI by typing the IP address into a local browser and entering the username and password

Navigate to Config Mgmt > Features

DHI-ASI7213X-T1 Questionnaire Setup - WebUI - 1.png


Toggle to enable the Questionnaire

Type the questionnaire instruction and contents (you can add maximum 5 questions in the contents), that you would like to display.

The display interval time of each question by default is 4 seconds, you can set up it between 1-8 seconds.

External Button

There is an option for External Button enable.

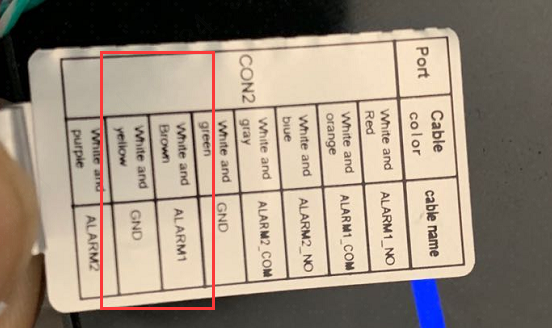

This can be used if you connect the kiosk to a door lock; when you have this enabled, after a customer has finished answering the questionnaire, the receptionist needs to push the button (connected to Alarm1 and GND) to unlock the door.

Once the external button is enabled, the device will display the questionnaire first, then go to temp measurement until the external button presses. Otherwise will stop at the last question for 15 seconds, if the button isn’t pressed within 15 seconds, the device will say “Access Denied” and then go back to beginning of questionnaire.

Once all settings have been set click OK to save

Questionnaire External Button Alarm Wiring.png
