Thermal/DHI-ASI7213X-T1/Instructions/SystemUI Breakdown

DHI-ASI7213X-T1: SystemUI

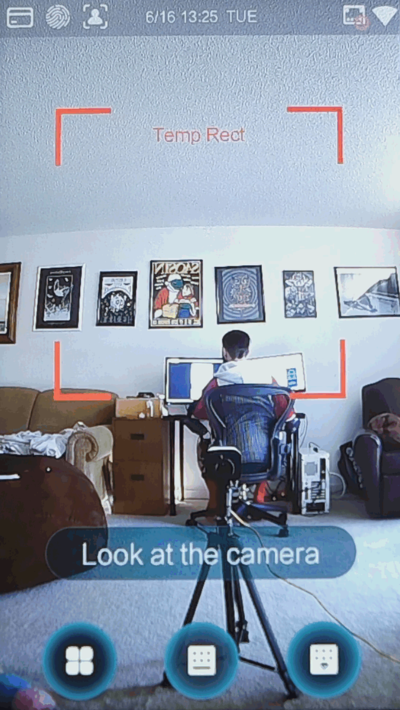

Main Screen

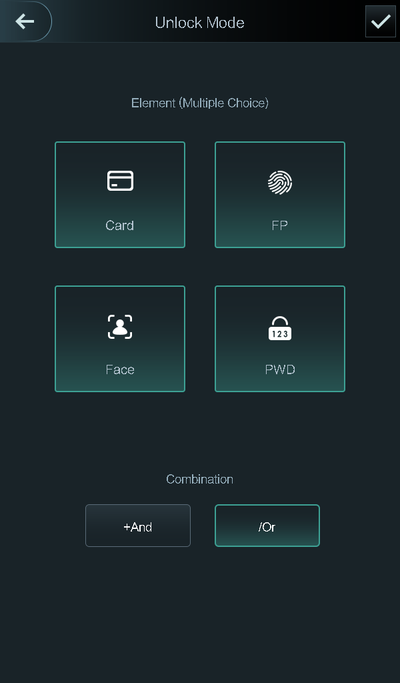

Unlock Mode

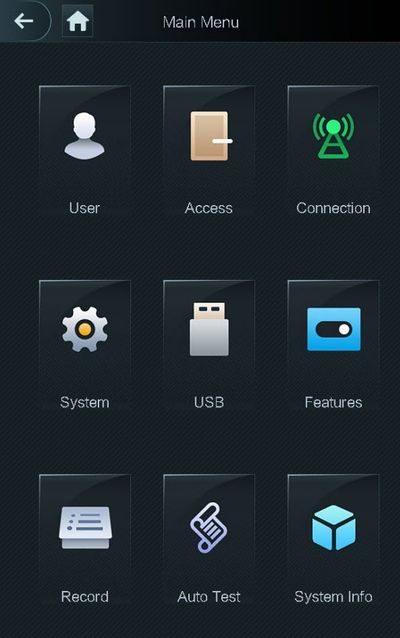

Main Menu

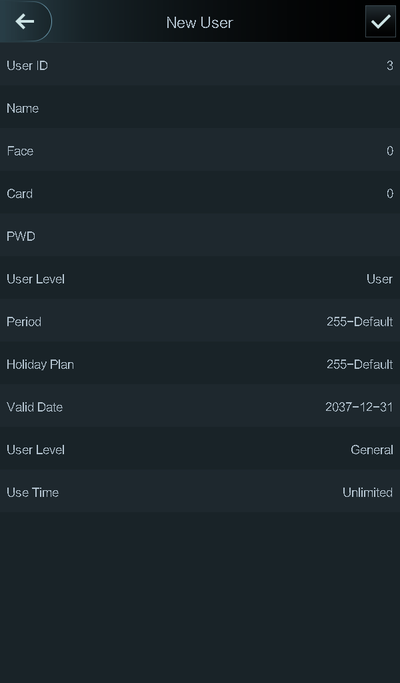

New User

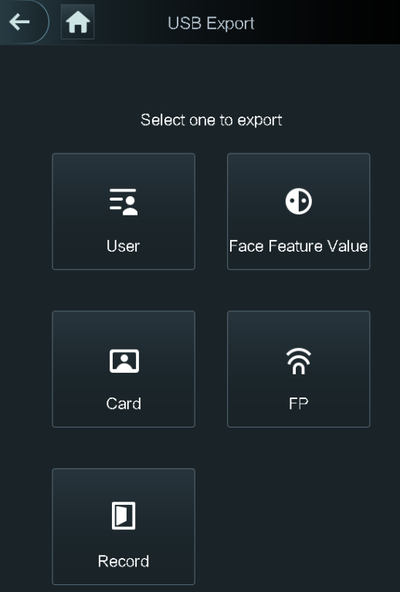

USB Export

Name	File Name	Description
User	User_Info.bak	Backup and transfer User Settings from one DHI-ASI7213X-T1 to another DHI-ASI7213X-T1
Face Feature Value	Face_Info.bak	Backup and transfer Face Feature Value from one DHI-ASI7213X-T1 to another DHI-ASI7213X-T1
Card	CardNo_Info.bak	Backup and transfer Card Info from one DHI-ASI7213X-T1 to another DHI-ASI7213X-T1
FP		Backup and transfer FP Data from one DHI-ASI7213X-T1 to another DHI-ASI7213X-T1
Record	Card_Punch_Records_0.xml	Backup records in XML format for viewing on a PC

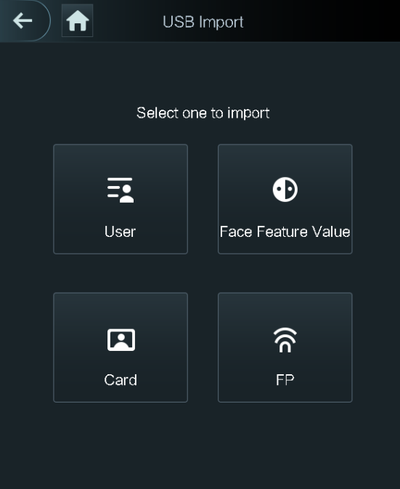

USB Import

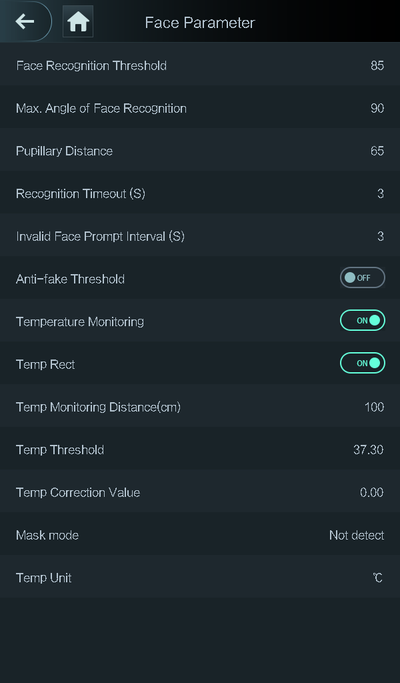

Face Parameter

Temp Rect: Set whether to enable the temperature monitoring box or not.

Name	Description
Face Recognition Threshold	Face recognition accuracy can be adjusted. The larger the value is, the higher the accuracy will be.
Max. Angle of Face Recognition	Set the control panel shooting angle of profiles. The larger the value is, the wider range of the profiles will be recognized.
Pupillary Distance	Pupillary distance is the pixel value of the image between the centers of the pupils in each eye. You need to set an appropriate value so that the access controller can recognize faces as needed. The value changes according to the face sizes and the distance between faces and the lens. The closer the face is to the lens, the greater the value should be. If an adult is 1.5 meters away from the lens, the pupillary distance value can be within 50 to 70.
Recognition Timeout	When a person who does not have the access permission stands in front of the access controller and gets the face recognized, the controller will prompt that face recognition failed. The prompt interval is called recognition timeout.
Recognition Interval	When a person who has the access permission stands in front of the access controller and gets the face recognized, the controller will prompt that face recognition succeeded. The prompt interval is the recognition interval.
Invalid Face Prompt Interval	When a face has no access permission stands in front of the access controller, the controller will prompt that the face is invalid. The prompt interval is invalid face prompt interval.
Anti-fake Threshold	This function prevents people from unlocking by human face images or face models. The larger the value is, the more difficult face images can unlock the door. The recommended value range is above 80.
Temperature Monitoring	Set whether to enable the body temperature monitoring. Temp Unit: Select a temperature unit. Temp Rect: Set whether to enable the temperature monitoring box or not. Temp Monitoring Distance (cm): The value is 0 by default. Set other values to enable temperature monitoring within a defined distance. 80 cm is recommended. Temp Threshold (°C): Set the temperature threshold. The monitored body temperature will be judged as high temperature if it is greater than or equal to the set value. Temp Correction Value: This parameter is for testing. The difference of the temperature monitoring environment might cause the temperature deviation between the monitored temperature and the actual temperature. You can select multiple monitored samples for testing, and then correct the temperature deviation by this parameter according to the comparison between the monitored temperature and the actual temperature. For example, if the monitored temperature is 0.5°C lower than the actual temperature, the correction value is set to 0.5°C; if the monitored temperature is 0.5°C higher than the actual temperature, the correction value is set to -0.5°C.
Mask Mode	No detect: Mask is not detected during face recognition. Mask reminder: Mask is detected during face recognition. If the person is detected without wearing a mask, the system will prompt mask reminder and passage is allowed. Mask intercept: Mask is detected during face recognition. If the person is detected without wearing a mask, the system will prompt mask reminder and passage is not allowed
