Thermal/TPC BF5421 T/Instructions/DSS Pro/Add TPC BF5421 T to DSS Pro

Description

These instructions will show how to add TPC-BF5421-T to DSS Pro

Prerequisites

  • TPC-BF5421-T - initialized, connected to network
  • DSS Pro - Thermal Version installed
  • Base License for DSS Pro - This allow user to have 16 channel of Body Temp Monitoring features.

Step by Step Instructions

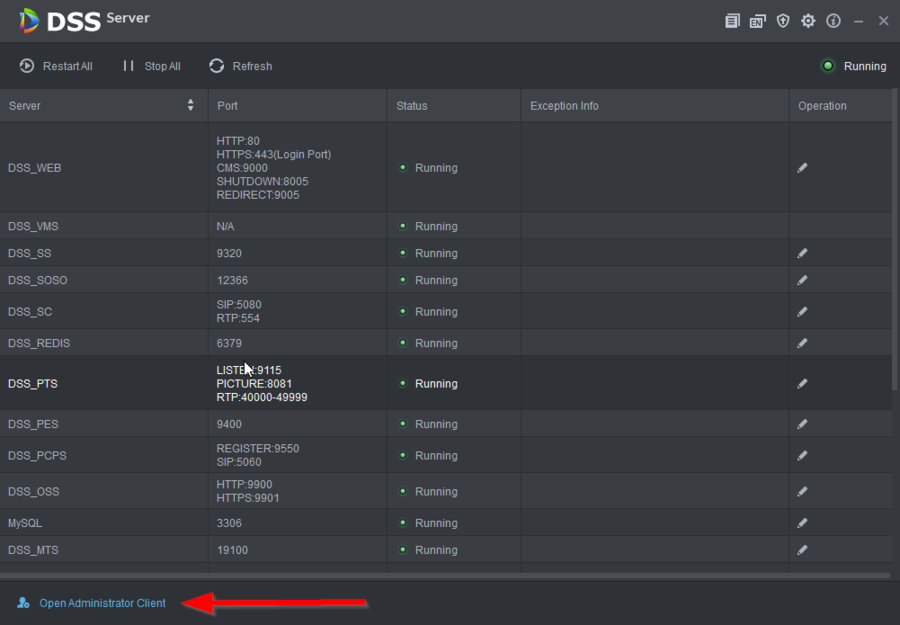

1. Login to the DSS Administrator Client by either clicking on the link provided by the server client

Add TPC BF5421 T to DSS Pro-1.png

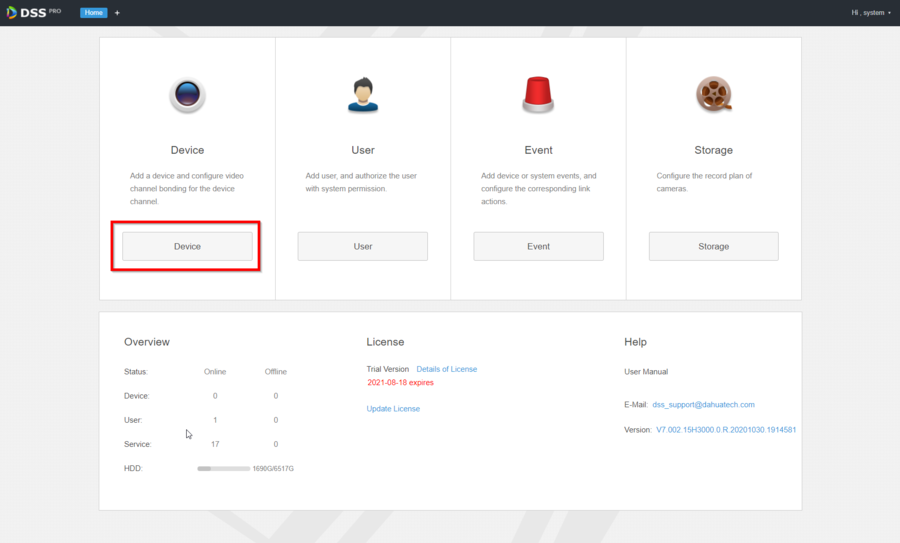

2. Go to Device

Add TPC BF5421 T to DSS Pro-2.png

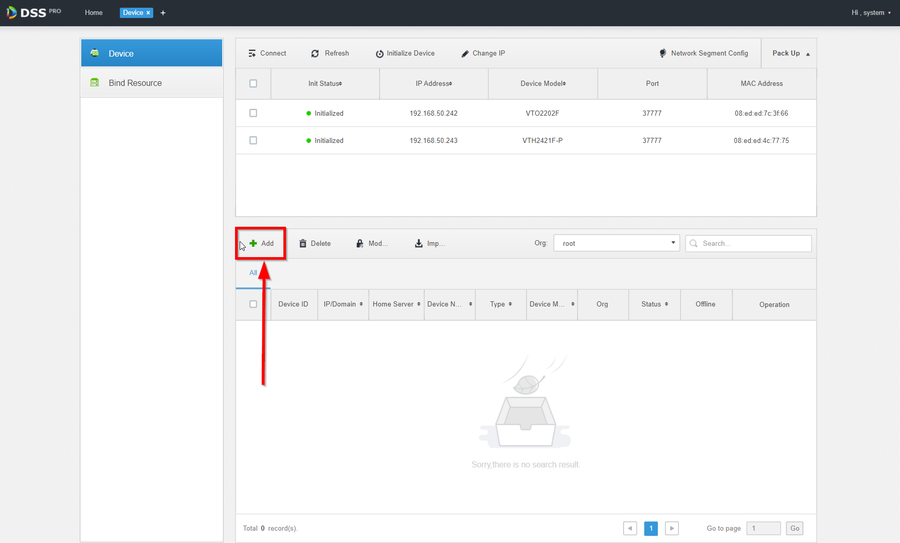

3. Click on Add

Add TPC BF5421 T to DSS Pro-3.png

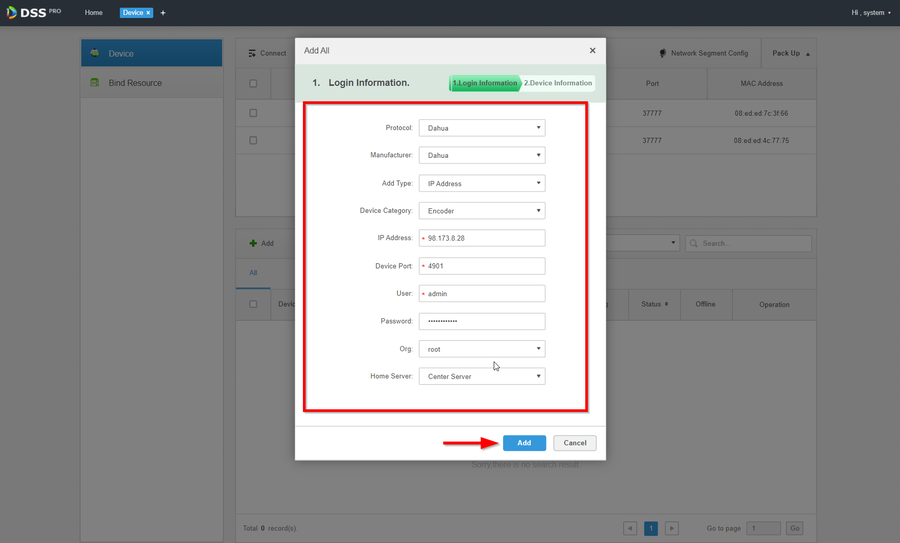

4. Enter the network information and login credentials of the TPC-BF5421-T and click on Add to continue

Add TPC BF5421 T to DSS Pro-4.png

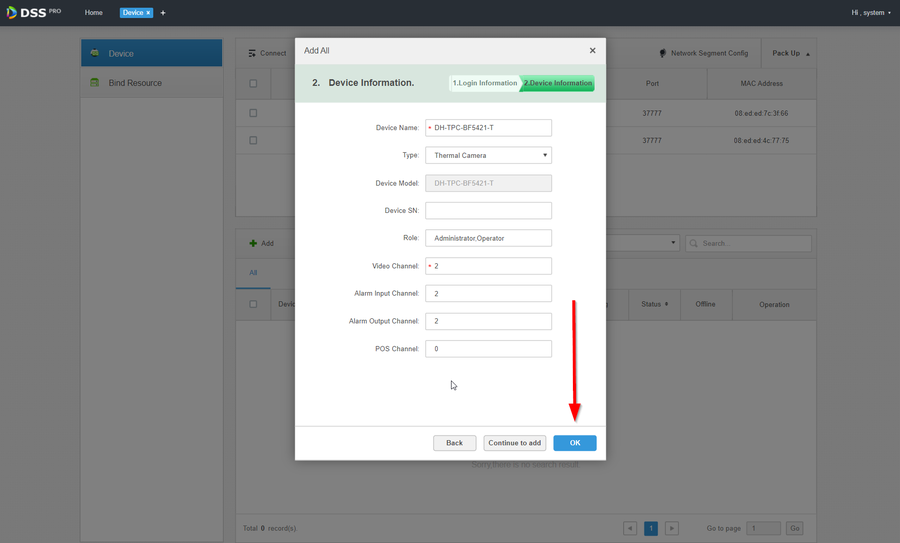

5. Give the camera a Name and confirm that it has 2 video channels, then click on OK to finish adding the camera

Add TPC BF5421 T to DSS Pro-5.png

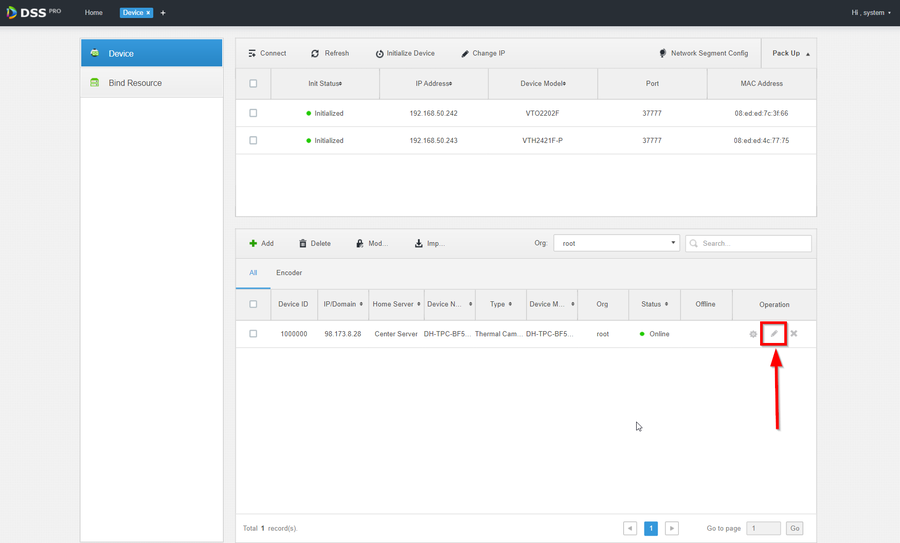

6. Go to the Edit icon for the camera entry

Add TPC BF5421 T to DSS Pro-6.png

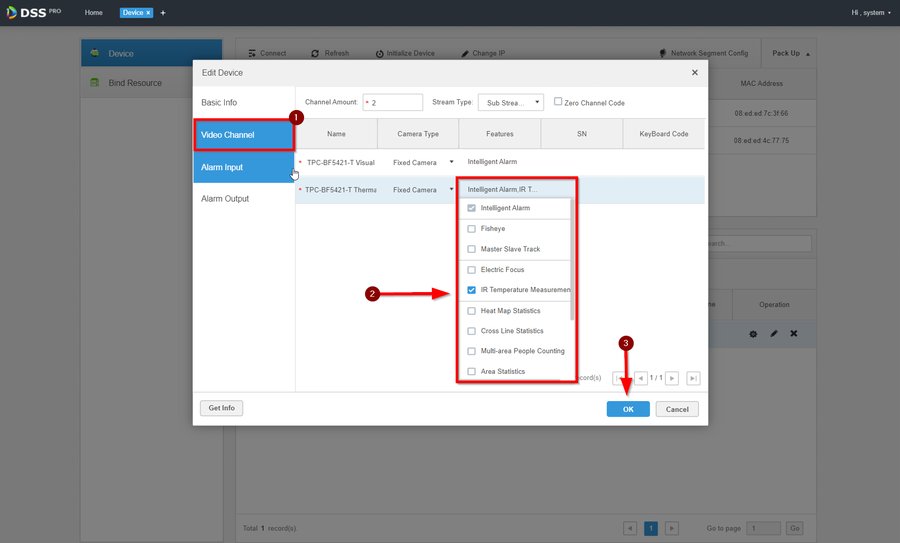

7. Navigate over to Video Channel, and make sure the second channel on the list has both Intelligent Alarm and IR Temperature Measurement Enabled. Then click on OK

Add TPC BF5421 T to DSS Pro-7.png

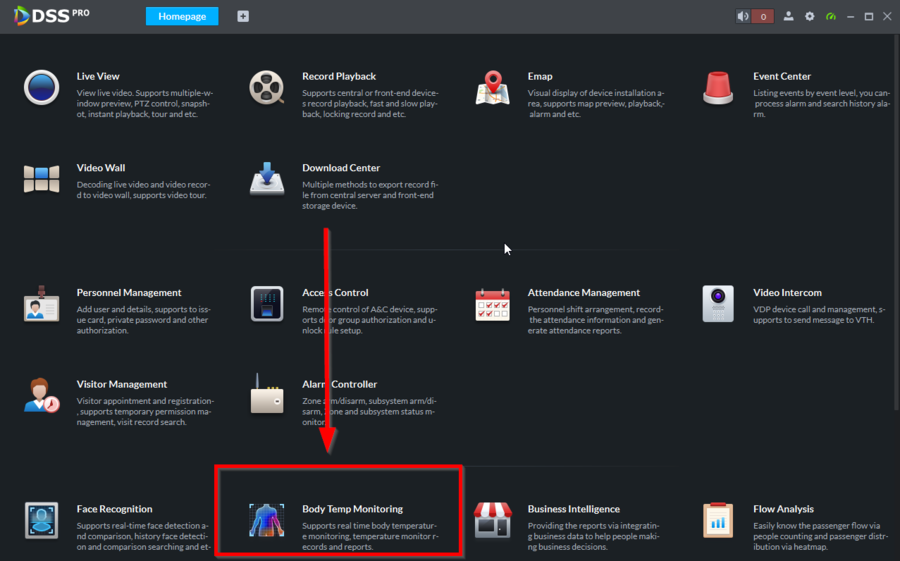

8. Open the DSS Pro Client and go to Body Temp Monitoring

Add TPC BF5421 T to DSS Pro-8.png

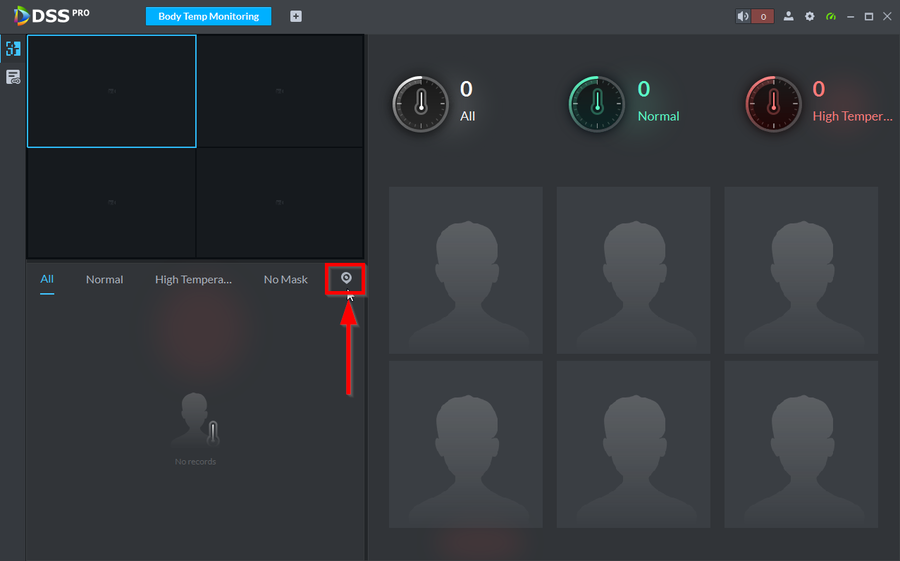

9. Select the view icon

Add TPC BF5421 T to DSS Pro-9.png

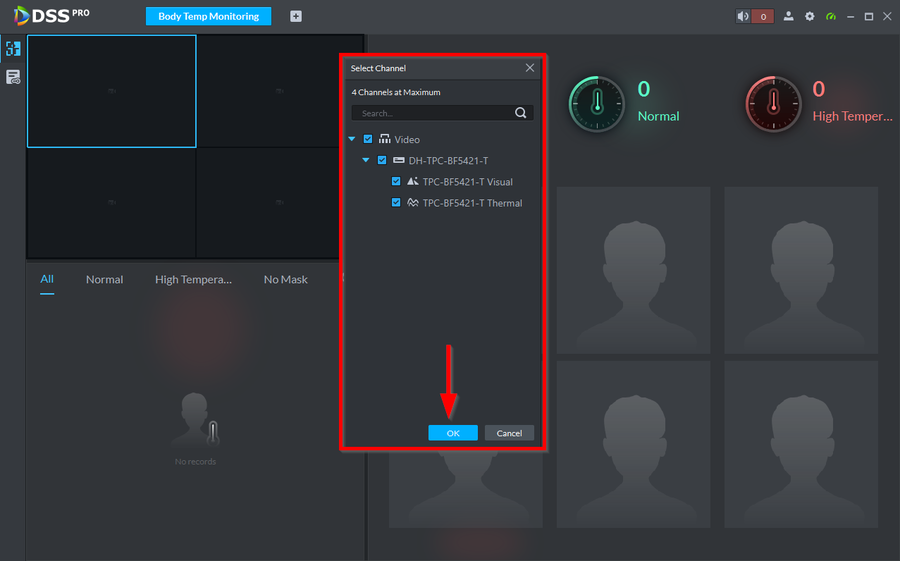

10. Check the channels you would like to monitor

Add TPC BF5421 T to DSS Pro-10.png

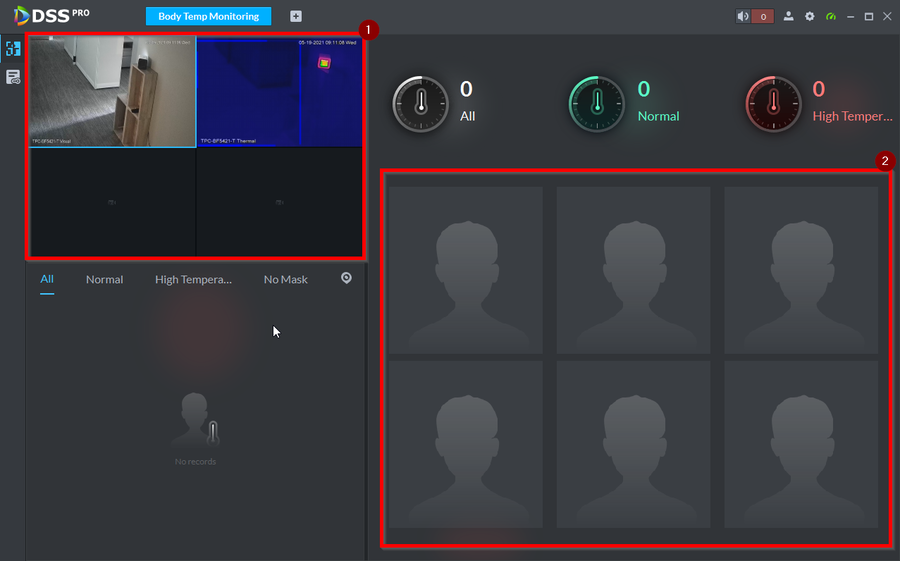

11. You can now Monitor the live view of the channels selected on Box 1 and monitor the readings on Box 2

Add TPC BF5421 T to DSS Pro-11.png
