Description

The Dahua Temperature Monitoring solution offers the latest hybrid thermal network camera that combines a Vanadium Oxide (VOx) sensor with a 2 MP visible-light sensor. The solution also provides a blackbody calibration device that maintains a constant temperature as a reference point for the thermal camera. The thermal camera coupled with the blackbody calibration device and a feature-rich 4 TB Network Video Recorder delivers a contactless solution for continuous, contactless, and non-invasive temperature monitoring.

The Dahua Thermal Temperature Monitoring Solution is not a medical device and is not designed or intended for diagnosis, prevention, or treatment of any disease or condition. The solution is a screening tool that businesses and households can use to identify individuals with elevated skin temperature compared to a customizable reference temperature on or entering their premises.

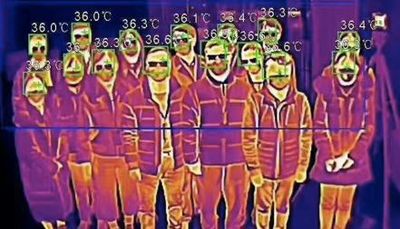

Human Body Temperature Measurement.jpg

Video Example

Coming Soon

Required Devices

Recommended Accesories

  • VCT-999 Tripod (x2)
  • RQW026-00 Connector (x2)

A set of temperature measuring equipment requires two tripods and two transfer parts, one for the camera and one for the Blackbody device

Installation Requirements

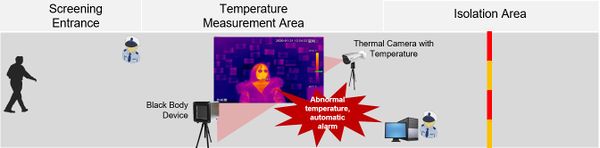

Human Body Temperature Measurement Diagram.jpg

Distance between camera and blackbody Distance between the human forehead and the camera Channel Width
9.8 ft (3m) 9.8 ft (3m) 4.3 ft (1.3m)
