Add DHI-ASI7213X-T1 To Milestone
These instructions will show you how to add a DHI-ASI7213X-T1 To Milestone XProtect Corporate 2020 R1.
PLEASE NOTE The DHI-ASI7213X-T1 solution is not currently compatible with any of the Dahua Milestone Plugins including the "Dahua Thermal Plugin"

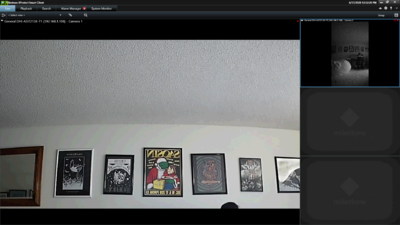

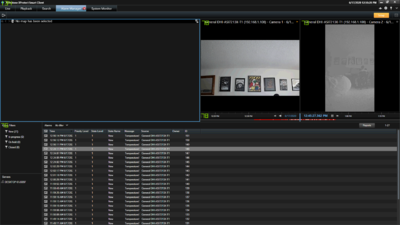

You will be able to view the video feeds, and see the alarm messages in XProtect Smart client.
You will not be able to aggregate snapshots of people's faces in the Dahua Thermal Plugin.
There is specific software and firmware to support the DHI-ASI7213X-T1
|Milestone XProtect DHI-ASI7213X-T1 Firmware|
Step by Step Instructions
1. Click Recording Servers
Find the server in the list
Select Add Hardware
2. Select Manual
3. Click Next on this screen
4. Select ONVIF drivers as shown
5. Left click in the field under IP Address
Enter the IP address of the DHI-ASI7213X-T1 and click Next
After a moment it will connect
6. Check the box to enable all Hardware features
The device will now appear in the list
