Thermal/Temperature Monitoring/Physical Setup
Contents
Temperature Monitoring Solution Physical Setup
Description
This guide will show the proper physical arrangement/setup of the devices for the Temperature Monitoring Solution
Video Instructions
Step by Step Instructions
Mounting Adapter Plates
The mounting brackets/plates must be installed to both the camera and black body device
RQW026-00 Brackets
Black body bracket installation
Thermal camera bracket installation
To attach the tripod:
Use the center hole to screw into tripod
Tripod installed
Suggested Physical Layout

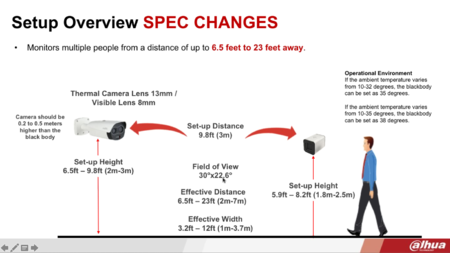

Side view diagram
Top view diagram
Camera height: 2m (6.56 ft)
Black body height: 1.8m (5.9 ft)
Minimum distance between both: 3m (9 ft)
Side view diagram
Top view diagram
JQ-D70Z Black body Setup
Plug in the power and turn on
Allow the device to warm up to 35.0 C
Next Step
Physical setup is now complete you can continue with setup and programming:
If the camera is plugged into an NVR, follow the steps to set up Thermal Monitoring solution with camera connected to NVR
If the camera is connected to the LAN, follow the steps to set up Thermal Monitoring solution with stand alone camera
