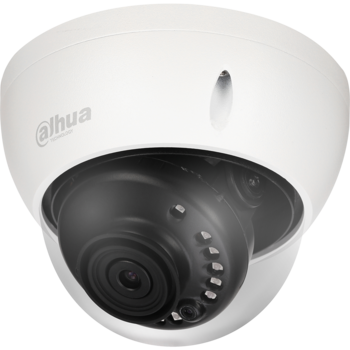

A21CL02

A21CL02


float

Features

  • 1/2.8-in. 2 MP Progressive-scan CMOS Sensor
  • 1080p at 30 fps Maximum Resolution
  • 2.8 mm Fixed Lens
  • Multi-format Output (HDCVI, CVBS, AHD, and TVI)
  • HD and SD Output, Switchable
  • Starlight Technology for Low-light Applications
  • Maximum IR Length 30 m (98 ft), Smart IR
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

Specification

Camera
Image Sensor 1/2.8-in. CMOS
Effective Pixels 1920(H) x 1080(V), 2 MP
Scanning System Progressive
Electronic Shutter Speed 1/30 to 1/100,000 s
Minimum Illumination Color: 0.005 lux at F1.8 (30 IRE) 0 lux with IR on
S/N Ratio More than 65 dB
IR Distance Up to 30.0 m (98.43 ft)
IR On/Off Control Auto, Manual
IR LEDs 12
Lens
Lens Type Fixed lens, Fixed iris
Mount Type Board-in
Focal Length 2.8 mm
Max Aperture F1.6
Horizontal Angle of View 106.0°
Close Focus Distance 600.0 mm (23.60 in.)
Installation Angle
Range Pan: 0° to 355°

Tilt: 0° to 65°

Rotation: 0° to 355°

DORI Distances²
Detect

(8 ppf)

Observe

(19 ppf)

Recognize

(38 ppf)

Identify

(76 ppf)

39 m (127 ft) 15 m (51 ft) 8 m (25 ft) 4 m (13 ft)
Video
Resolution 1080p (1920 x 1080)
Frame Rate 1080p at 30 fps

720p at 30/60 fps

Video Output One (1) BNC HDCVI High-definition Channel or

One (1) BNC CVBS, AHD or TVI Channel, switchable

Video Transmission³ RG-59/U Coax 720p: 800 m (2624.67 ft)

1080p: 500 m (1640.42 ft)

RG-6/U Coax 720p: 1200 m (3937.01 ft)

1080p: 800 m (2624.67 ft)

CAT 6 UTP

(balun required)

720p: 450 m (1476.38 ft)

1080p: 300 m (984.25 ft)

Day/Night Auto (ICR), Manual
On-screen Display Menu Multi-language (Chinese, English, French, German, Italian, Japanese,Korean, Polish, Portuguese, Russian, and Spanish)
BLC Mode BLC, HLC, DWDR
WDR Digital WDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto, Manual
Smart IR Auto, Manual
Certifications
Safety UL60950-1+CAN/CSA C22.2 No.60950-1
Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 Subpart B

ANSI C63.4-2014

EN55032, EN55024, EN50130-4

Electrical
Power Supply 12 VDC ±30%
Power Consumption 3.1 W Maximum (12 VDC, IR on)
Environmental
Operating Conditions –40° C to +60° C (–40° F to +140° F),

Less than 90% RH

Initiate startup above –40° C (–40° F)

Storage Conditions –40° C to +60° C (–40° F to +140° F),

Less than 90% RH

Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Aluminium
Dimensions ø109.90 mm x 81.0 mm

(ø4.33 in. x 3.19 in.)

Net Weight 0.31 kg (0.68 lb)
Gross Weight 0.45 kg (0.99 lb)
