DH-HAC-HUM1220GN

DH-HAC-HUM1220GN
Specifications Manual

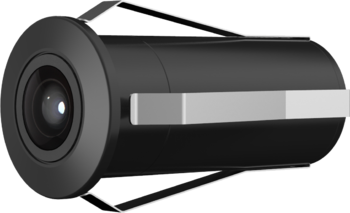

DH-HAC-HUM1220GN HAC-HUM1220GN.png
Series: Lite
Body: Bullet
Image Sensor: 1/2.9-in. CMOS Sensor
Resolution: 2 MP, 1920(H) x 1080(V)
Angle of View: Horizontal: 109.4°
Lens Type: Fixed lens, Fixed iris
Focal Length: 2.8 mm
Min. Illumination: Color: 0.02 lux at F2.0
B/W: 0.002 lux at F.20
Day/Night: Auto (electronic), Manual
Max. IR Range: -
WDR: Digital WDR
Video Output: One (1) BNC HDCVI High-definition Channel, or
One (1) BNC CVBS Channel, switchable
Frame Rate: 1080p at 30 fps
720p at 60 fps
Audio In: 0
Audio Out: 0
Alarm In: 0
Alarm Out: 0
IP Rating: -
IK Rating: -
Operating Temp: –40° C to +60° C (–40° F to +140° F)
Less than 95% RH
Power: 12 VDC ± 25%
< 0.6 W

Features

  • 1/2.9-in. Progressive-scan CMOS Sensor
  • 1080p at 30 fps Maximum Resolution
  • HD and SD Output, Switchable
  • Supports Multiple Video Formats: HDCVI and Analog Formats
  • 2.1 mm Fixed Lens
  • IP67 Ingress Protection
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)
