Specifications Manual

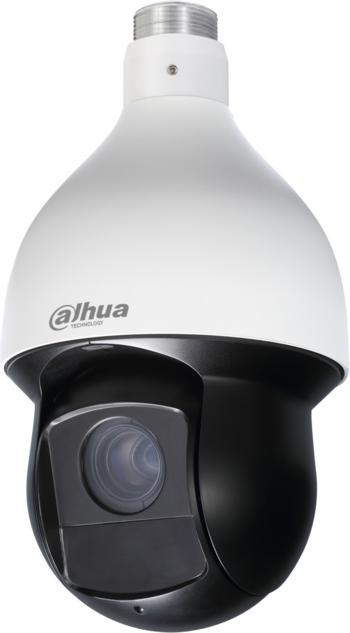

59230IC 59430IC.png
Series: Pro
Body: PTZ
Image Sensor: 1/2.8-in. STARVIS™ CMOS Sensor
Resolution: 2 MP, 1920(H) x 1080(V)
Angle of View: Horizontal: 2.4° to 67.8°
Lens Type: Varifocal
Focal Length: 4.5 mm to 135 mm
Optical Zoom: 30x
Min. Illumination: Color: 0.005 lux at F1.6;
0 lux at F1.6 with IR on
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 150.0 m (492.13 ft)
WDR: 120 dB
Video Output: One (1) Channel, BNC
High-definition Video Output (HDCVI, AHD, TVI) or
CVBS Standard Definition Video Output (switchable)
Frame Rate: 1080p at 30 fps or 720p at 30/60 fps
Pan/Tilt Range: Pan: 0° to 360° Endless
Tilt: -15° to 90°, Auto Flip 180°
Preset Speed: 300 Presets
Pan: 400° /s
Tilt: 200° /s
Audio In: One (1) Channel
Audio Out: 0
Alarm In: Two (2) Channels
Alarm Out: One (1) Channel
IP Rating: 66
IK Rating: -
Operating Temp: –40° C to +60° C (–40° F to +140° F)
Less than 90% RH
Power: 24 VAC, 3 A (±10%)
< 23 W


  • 1/2.8-in. 2 MP STARVIS™ Progressive-scan CMOS Sensor
  • Powerful 30x Optical Zoom
  • Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
  • Starlight Technology for Ultra-low Light Sensitivity
  • 1080p at 30 fps or 720p at 30/60 fps, Maximum Resolution
  • True Wide Dynamic Range (120 dB), 3D DNR
  • Maximum IR Distance up to 150 m (492 ft)
  • IP66 Ingress Protection
  • Designed for Extreme Temperature Environments
  • Five-year Warranty (for products sold through an authorized Dahua Dealer.)


- To avoid any issues with performance do not use baluns when connecting a PTZ camera.
