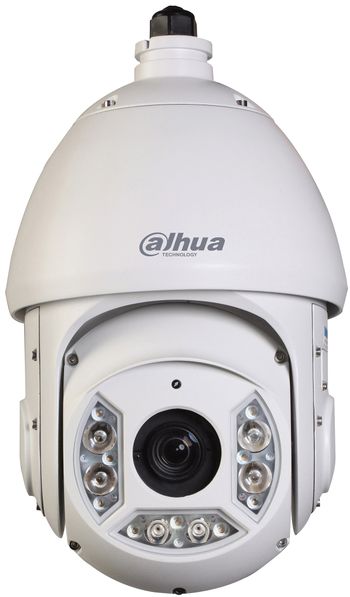

  • 1/2.8-in. 2 MP STARVIS™ Progressive-scan CMOS Sensor
  • Powerful 30x Optical Zoom
  • Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
  • Starlight Technology for Ultra-low Light Sensitivity
  • 1080p at 30 fps or 720p at 30/60 fps, Maximum Resolution
  • True Wide Dynamic Range (120 dB), 3D DNR
  • Maximum IR Distance up to 150 m (492 ft)
  • IP66 Ingress Protection
  • Designed for Extreme Temperature Environments
  • Five-year Warranty (for products sold through an authorized Dahua Dealer.)


Image Sensor 1/2.8 in. STARVIS™ CMOS
Effective Pixels 1920(H) x 1080(V), 2 MP
Scanning System Progressive
Electronic Shutter Speed 1/3 s to 1/300,000 s
Minimum Illumination Color: 0.005 lx at F1.6
  0 lux at F1.6 with IR on
S/N Ratio More than 55dB
IR Distance Distance up to 150 m (492.13 ft)
IR On/Off Control Auto/Manual
IR LEDs Six (6)
Focal Length 4.5 mm to 135 mm
Maximum Aperture F1.6 to F5.0
Horizontal Angle of View Horizontal: 2.4° to 67.8°
Optical Zoom 30x
Focus Control Auto, Manual
Close Focus Distance 100 mm to 1000 mm (3.94 in. to 39.37 in.)
DORI Distance1
  Detect (8 ppf): 1862 m (6109 ft)
  Observe (19 ppf): 744 m (2441 ft)
  Recognize (38 ppf): 372 m (1220 ft)
  Identify (76 ppf): 186 m (610 ft)
Pan/Tilt Range Pan: 0° to 360° endless
  Tilt: -15° to 90°
  Auto Flip 180°
Manual Control Speed Pan: 0.1° to 160° /s;
  Tilt: 0.1° to 120° /s
Preset Speed Pan: 240° /s
  Tilt: 200° /s
Presets 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented Focal Length and Speed Adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset, Scan, Tour, Pattern if there is no command in the specified period
Protocol DH-SD, Pelco-P/D (Auto recognition)
Resolution 1080p (1920 × 1080)
  720p (1280 × 720)
Frame Rate 1080p at 30 fps or 720p at 30/60 fps
Video Output One (1) Channel, BNC
High-definition Video Output (HDCVI, AHD, TVI) or
CVBS Standard Definition Video Output (switchable)
Video Transmission2
RG-59/U Coax 720p: 500 m  (1640.42 ft)
1080p: 400 m  (1312.34 ft)
RG-6/U Coax 720p: 800 m  (2624.67 ft)
1080p: 600 m  (1968.50 ft)
CAT 6 UTP (balun required) 720p: 380 m  (1246.72 ft)
1080p: 380 m  (1246.72 ft)
Day/Night Auto (ICR), Color, B/W
OSD Menu English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish
Advanced Features BLC, HLC, WDR (120 dB)
Backlight Compensation Auto, ATW, Indoor, Outdoor, Manual
White Balance Auto, Manual
Gain Control Ultra DNR (2D/3D)
Noise Reduction Defog
Digital Zoom 16x
Flip 180°
Privacy Masking Up to 24 areas
CE EN 55032
  EN 55024
  EN 50130-4
UL UL60950-1 + CAN/CSA C22.2, No.60950-1
Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B
  ANSI C63.4-2014
Video Output Output: One (1) BNC
Audio Input Input: One (1) Channel
RS485 One (1) Port
Alarm Input: Two (2) Channels
  Output: One (1) Channel
Power Supply 24 VAC, 3 A (±10%)
Power Consumption 13 W, 23 W with IR on
Operating Conditions -40° C to 60° C (-40° F to +140° F),
  with built-in heater, Less than 90% RH
Ingress Protection  IP66
Casing Metal
Dimensions 204.70 mm x 359.90 mm (8.06 in. x 14.17 in.)
Net Weight 7.80 kg (17.20 lb)
Gross Weight 8.30 kg (18.30 lb)
1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications.
2. Transmission distance results verified by real-scene testing in Dahua's test laboratory. Actual transmission distances may vary due to external influences, cable quality, and wiring structures.
