DH-SD6CA220IN-HC
| Series: | Pro |
| Image Sensor: | 1/2.8” 2MP Exmor R CMOS |
| Lens: | 4.7~94.0mm (20x Optical zoom) |
| Resolution: | 1080P |
| H Field of View: | 54.1° ~ 3.2° |
| Day/Night: | ICR |
| Min. Illumination: | 0.05Lux/F1.4(Color), 0Lux/F1.4(IR on) |
| Max. IR Range: | 100m |
| OSD Menu: | Support |
| WDR: | DWDR |
| Noise Reduction: | 2D/3D |
| FPS: | 30fps@1080P 30/60fps@720P |
| Video Output: | HD/SD Switchable |
| Pan/Tilt/Zoom: | 300 Presets, Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, Auto flip 180° |
| Preset Speed: | Pan: 240° /s; Tilt: 200° /s |
| Audio In: | 1 |
| Audio Out: | - |
| Built In Microphone: | - |
| Memory Slot: | - |
| Alarm In: | 2 |
| Alarm Out: | 1 |
| IP Rating: | 66 |
| IK Rating: | - |
| Working Temp: | -40°C~+60°C |
| Power: | AC24V |
| Firmware: | URL |
Features
- 20x optical zoom
- Max. 25/30fps @1080P(1920x1080) & 50/60fps @720P resolution
- DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
- Control over coaxial cable, long distance real-time transmission
- HD and SD switchable
- Max 240°/s pan speed, 360° endless pan rotation
- Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
- Built-in 2/1 alarm in/out
- Support intelligent 3D positioning with DH-SD protocol
- IR Distance up to 100m
- IP66, OSD
EOL: End of Life
EOL Date: 3/31/2017
Suggested Replacement
CAD Images
FOV
Camera Height: 10m
Focal Length: 4.7mm
Target Horizontal Dist: 83.8m
Camera Height: 10m
Focal Length: 94mm
Target Horizontal Dist: 1688.2m
Compatible Accessories
Accessories Combo 1
PFB303W
PFA114
Accessories Combo 2
PFB300C
PFA114
Accessories Combo 3
PFA120
PFB303W
PFA114
Accessories Combo 4
PFA140
PFB303W
PFA114
Accessories Combo 5
PFA150
PFB303W
PFA114
Accessories Combo 6
PFA150
PFB300C
PFA114
Accessories Combo 7
PFA150
PFA120
PFB303W
PFA114
Accessories Combo 8
PFA150
PFA140
PFB303W
PFA114
Accessories Combo 9
PFA151
PFB303W
PFA114
Accessories Combo 10
PFA151
PFB300C
PFA114
Accessories Combo 11
PFA151
PFA120
PFB303W
PFA114
Accessories Combo 12
PFA151
PFA140
PFB303W
PFA114
Accessories Combo 13
PFA114
PFB303S
Optional Accessories
PFA112
PFA113

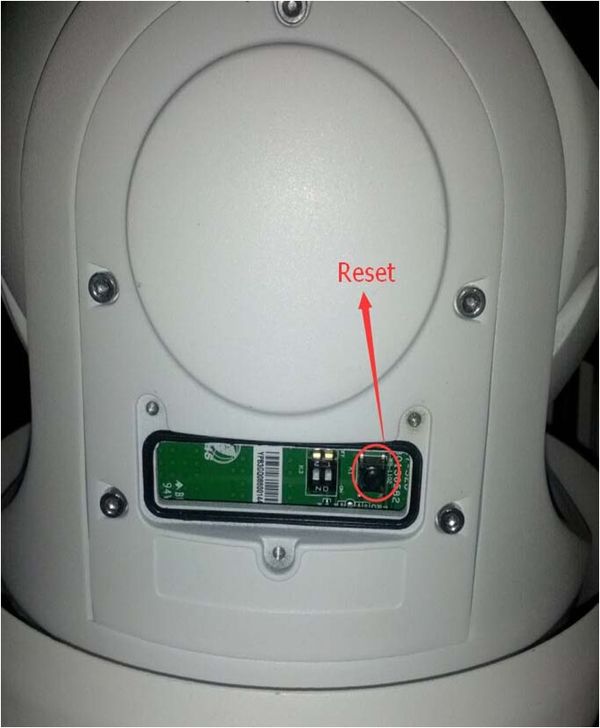

Reset Button
Specifications
| Model | DH-SD6CA220IN-HC |
| Camera | |
| Image Sensor | 1/2.8” Exmor CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2Megapixels |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1 ~ 1/30,000s |
| Min. Illumination | Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4; 0Lux (IR on) |
| S/N Ratio | More than 50dB |
| Resolution | 25/30fps@1080P, 25/30/50/60fps@720P |
| Video Output | 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
| Camera Features | |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / DWDR (Digital WDR) |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D/3D |
| Privacy Masking | Up to 24 areas |
| Digital Zoom | 16x |
| Lens | |
| Focal Length | 4.7mm~94mm (20x Optical zoom) |
| Max Aperture | F1.4 ~ F2.6 |
| Focus Control | Auto / Manual |
| Angle of View | H: 54.1° ~ 3.2° |
| Close Focus Distance | 100mm~ 1000mm |
| PTZ | |
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s |
| Preset Speed | Pan: 240° /s; Tilt: 200° /s |
| Preset | 300 |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Speed Setup | Human-oriented focal length/ speed adaptation |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) |
| IR Distance | 100m (2 near IR LED+ 4 far IR LED) |
| Audio | |
| Interface | 1 channel In |
| Auxiliary Interface | |
| RS485 | 1 |
| Alarm | 2/1 channel In/Out |
| General | |
| Power Supply | AC 24V/3A (±10%) |
| Power Consumption | 10.5W, 26W (IR on, Heater on) |
| Working Environment | -40ºC ~ 60ºC / Less than 90% RH |
| Ingress Protection | IP66 |
| Vandal Resistance | N/A |
| Dimensions | Φ204.7(mm) x 359.9(mm) |
| Weight | 7.5kg |
