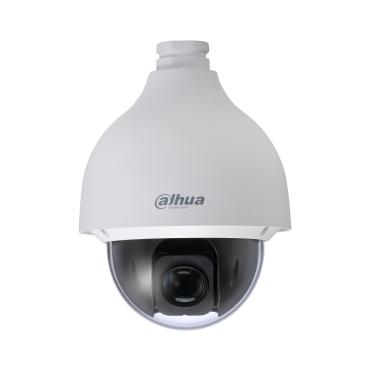

SD50A230IN-HC-S2


float

EOL

  • Currently EOL

Suggested Replacement

  • 50230IC (available November 2017)

Features

  • Max 60 fps at 720p and 30 fps at 1080p
  • Powerful 30x optical zoom
  • True WDR
  • Built-in 2/1 Alarm in/out
  • HD and SD Switchable
  • Outdoor Rated IP67, Vandal Resistant IK10
  • On-screen Display

CAD Images

FOV

Specifications

Camera

Image Sensor

1/2.8-in. Exmor CMOS

Effective Pixels

1920(H) x 1080(V)

Scanning System

Progressive

Electronic Shutter Speed

1/1 s to 1/30,000 s

'Minimum' Illumination

Color: 0.005 Lux at F1.6

B/W: 0.0005 Luxat F1.6

S/N Ratio

More than 55 dB

Lens

Lens Type

Motorized/ Auto Iris

Mount Type

Board-in

Focal Length

4.5 mm to 135 mm(30x Optical Zoom)

Max Aperture

F1.6 to F5.0

Angle of View

Horizontal: 67.8° to 2.7°

Focus Control

Auto, Manual

Close Focus Distance

100 mm to 1000 mm

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless;

Tilt: 0° to 90°,
Auto flip 180°

Manual Control Speed

Pan: 0.1° to 350° /s;

Tilt: 0.1° to 250° /s

Preset Speed

Pan: 500° /s;

Tilt: 500° /s

Presets

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan, Auto Scan

Speed Setup

Human-oriented focal length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Time Task

Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time

Protocol

DH-SD, Pelco-P/D (Auto recognition)

Video

Resolution

1080p at 30 fps, 720p at 30/60 fps

Video Output

One (1) Channel BNC HDCVI High Definition Video Output,
CVBS Standard Definition Video Output(switchable)

Day/Night

Auto (ICR), Color, B/W

BLC Mode

BLC, HLC, WDR (120dB)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto, Manual

Noise Reduction

Ultra DNR (2D/3D)

Digital Zoom

16x

Flip

0°/180°

Privacy Masking

Up to 24 areas

Interface

Audio Interface

One (1) Input

RS485

One (1)

Alarm

Input: Two (2) Channels

Output: One (1) Channel

Certifications

Safety

UL (E234884-A71-UL)

Electromagnetic Compatibility (EMC)

FCC (SEFD1602154-B)

El'e'ctrical

Power Supply

24 VAC, 1.5 A

Power Consumption

Maximum 23 W

Environmental

Operating Conditions

-40°C to +60°C (-40°F to +140°F),
Less than 90% RH

  • Start up should be done at above -35°C (-31°F)

Storage Conditions

-30°C to +60°C (-22°F ~ +140°F),
Less than 90% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

ø186.0 mm x 309.0 mm (ø 7.32 in. x12.17 in.)

Net Weight

2.50 kg (5.51 lbs)

Gross Weight

4.50 kg (9.92 lbs)
