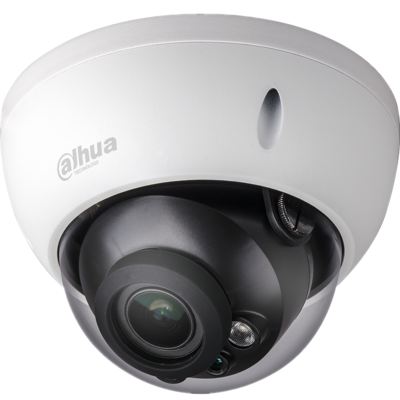

A22CMAZ

A22CMAZ


float


Features

  • 1/2.8-in. 2 MP Progressive-scan CMOS Sensor
  • 2 MP (1920 x 1080) at 30 fps Maximum Resolution
  • 2.8 mm Fixed Lens
  • Starlight Technology for Low-light Applications
  • True Wide Dynamic Range (120 dB) and 2D/3D Noise Reduction
  • Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
  • HD or SD Output, Switchable
  • Maximum IR Length 30 m (98 ft), Smart IR
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Five-year Warranty (for products sold through an authorized Dahua dealer)

Images

FOV

Specifications

Camera
Image Sensor 1/2.8-in. CMOS Sensor
Effective Pixels 1920 (H) x 1080 (V), 2 MP
Scanning System Progressive
Electronic Shutter Speed 1/3 s to 1/100,000 s
Minimum Illumination Color: 0.004 lux at F1.6, 30 IRE

0 lux at F1.6 with IR On

S/N Ratio More than 65 dB
IR Distance Up to 30.0 m (98.43 ft)
IR Control Auto, Manual
IR LEDs Two (2)
Lens
Lens Type Motorized Lens, Fixed Iris
Mount Type Board-in
Focal Length 2.7 mm to 13.5 mm
Maximum Aperture F1.6
Angle of View Horizontal: 108.7° to 28.7°
Close Focus Distance 200.0 mm (7.87 in.)
Installation Angle
Range Pan: 0° to 355°

Tilt: 0° to 75°

Rotation: 0° to 355°

DORI Distances¹
Detect

(8 ppf)

Observe

(19 ppf)

Recognize

(38 ppf)

Identify

(76 ppf)

Wide 44 m

(144 ft)

18 m

(59 ft)

9 m

(30 ft)

5 m

(16 ft)

Tele 153 m

(502 ft)

61 m

(200 ft)

31 m

(102 ft)

15 m

(49 ft)

Video
Maximum Resolution 1080p (1920 x 1080)
Frame Rate 1080p at 30 fps or 720p at 60 fps
Video Output One (1) BNC, Transmits HDCVI High-definition signal or CVBS,

AHD or TVI Channel, switchable

Video Transmission² RG-59/U Coax 720p: 800 m (2624.67 ft)

1080p: 500 m (1640.42 ft)

RG-6/U Coax 720p: 1200 m (3937.01 ft)

1080p: 800 m (2624.67 ft)

CAT 6 UTP

(balun required)

720p: 450 m (1476.38 ft)

1080p: 300 m (984.25 ft)

Day/Night Auto (ICR), Manual
OSD Menu Multi-language
BLC Mode BLC, HLC, True WDR
WDR 120 dB
Gain Control AGC
Noise Reduction 2D, 3D
White Balance Auto, Manual
Smart IR Auto, Manual
Certifications
CE EN55032

EN55024

EN50130-4

Safety UL60950-1

CAN/CSA C22.2 No.60950-1

Electromagnetic Compatibility

(EMC)

FCC CFR 47 Part 15 subpart B,

ANSI C63.4-2014

Interface
Audio Input: One (1) Channel, RCA Jack
Electrical
Power Supply 24 VAC ± 30% or 12 VDC ± 30%
Power Consumption Maximum 5.9 W (12 VDC, IR On)
Environmental
Operating Conditions –40° C to +60° C (–40° F to +140° F)

Less than 90% RH

  • Initiate start up above –40° C (–40° F)
Storage Conditions –40° C to +60° C (–40° F to +140° F)

Less than 90% RH

Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Aluminium
Dimensions ø122.0 mm x 88.90 mm

(ø4.80 in. x 3.50 in.)

Net Weight 0.43 kg (0.95 lb)
Gross Weight 0.53 kg (1.17 lb)
