A52AL42

A52AL42
Specifications Manual

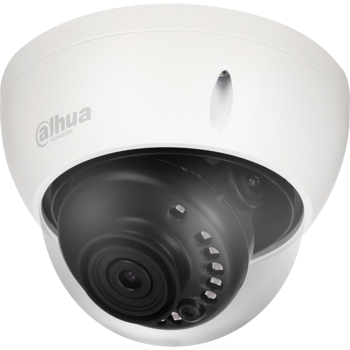

A52AL42 A52AL42.png
Series: Pro
Body: Dome
Image Sensor: 1/2.8-in. STARVIS™ CMOS Sensor
Resolution: 5 MP, 2592 (H) x 1944 (V)
Angle of View: Horizontal: 98°
Lens Type: Fixed lens, Fixed iris
Focal Length: 2.8 mm
Min. Illumination: Color: 0.005 lux at F1.6, 30 IRE
0 lux with IR on
Day/Night: Auto (ICR), Manual
Max. IR Range: Up to 30.0 m (98.43 ft)
WDR: 120 dB
Video Output: One (1) BNC HDCVI High-definition Channel or,
One (1) BNC CVBS Channel, switchable
Frame Rate: 5 MP at 20 fps, 4 MP at 30 fps, 1080p at 30 fps
Audio In: One (1) Channel, RCA Jack
Audio Out: 0
Alarm In: 0
Alarm Out: 0
IP Rating: 67
IK Rating: 10
Operating Temp: –40° C to +60° C (–40° F to +140° F)
Less than 90% RH
Power: 12 VDC ±30%
< 5.3 W


Features

  • 1/2.8-in. 5 MP Progressive-scan STARVIS™ CMOS Sensor
  • 5 MP (2592 x 1944) at 20 fps Maximum Resolution
  • 2.8 mm Fixed Lens
  • Starlight Technology for Low-light Applications
  • True Wide Dynamic Range (120 dB) and 2D/3D Noise Reduction
  • HD or SD Output, Switchable
  • Maximum IR Length 30 m (98 ft), Smart IR
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Five-year Warranty (for products sold through an authorized Dahua dealer)

Product Images

Product Box Box Contents Wire Harness
Product Box Box Contents Wire Harness
