A82AG52

A82AG52
Specifications Manual

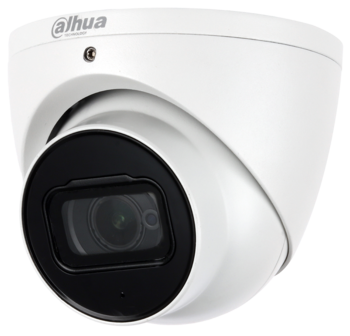

A82AG52 A82AG52.png
Series: Pro
Body: Eyeball
Image Sensor: 1/2-in. CMOS Sensor
Resolution: 8 MP, 3840 (H) x 2160 (V)
Angle of View: Horizontal: 87°
Lens Type: Fixed lens, Fixed iris
Focal Length: 2.8 mm
Min. Illumination: Color: 0.005 lux at F1.6 (30 IRE)
0 lux with IR on
Day/Night: Auto (ICR), Manual
Max. IR Range: Up to 50.0 m (164.04 ft)
WDR: 120 dB
Video Output: One (1) BNC HDCVI 4K Ultra High-definition Channel or,
One (1) BNC CVBS Channel, switchable
Frame Rate: 8 MP at 15 fps,
6 MP at 20 fps, or
4 MP at 30 fps
Audio In: One (1) Channel, RCA Jack, and
Built-in Microphone
Audio Out: 0
Alarm In: 0
Alarm Out: 0
IP Rating: 67
IK Rating: -
Operating Temp: –30° C to +60° C (–22° F to +140° F)
Less than 90% RH
Power: 12 VDC ±30%
< 8 W

Features

  • 1/2-in. 8 MP Progressive Scan CMOS Sensor
  • 4K (3840 x 2160) at 15 fps Maximum Resolution
  • 2.8 mm Fixed Lens
  • Starlight Technology for Ultra Low-light Applications
  • True Wide Dynamic Range (120 dB) and 2D/3D Noise Reduction
  • HD or SD Output, Switchable
  • Built-in Microphone
  • Maximum IR Length 50 m (164 ft), Smart IR
  • IP67 Ingress Protection
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)


Product Images

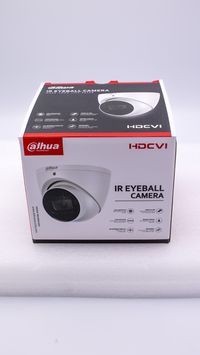

Product Box Box Contents Wire Harness
Product Box Box Contents Wire Harness
