DHI-HCVR51A16HE-S3

DHI-HCVR51A16HE-S3
Specifications Quick Start Guide Manual Firmware

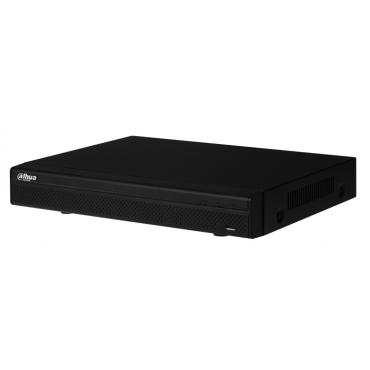

DHI-HCVR51A16HE-S3 HCVR51A04HES3.jpg
Series: Lite
Compatible Video: HDCVI/CVBS (Auto-detect)
HD-CVI/Analog Channels: 16
IP Channels: 24
Video Compression: H.264+ / H.264
HD-CVI/Analog Recording
Resolutions:
5 MP, 4 MP, 3 MP, 1080p, 1080N, 720p
IP Recording Resolutions: 5 MP, 4 MP, 3 MP, 1080p, 1080N, 720p
Input Bandwidth: 96Mbps
Video Output: 1 HDMI, 1 VGA
HDD: 1 HDD, 6 TB
eSATA: 0
Audio In: 4 BNC, 1 RCA
Audio Out: 1 BNC, 1 RCA
Alarm In: 16
Alarm Out: 3
Network: 1 Gigabit Port
USB: 1 USB 3.0 Port, 1 USB 2.0 Port
Power: 12 VDC, 2 A, 50/60 Hz
<10W (No HDD)
IVS: Yes (1 IP Channel)
POS: No
Spot Out/ Video Matrix: Yes

System Specific Features

  • The Face Detect feature can only be enabled on channel 1 with a HDCVI camera, no other channels can use this feature.


Features

  • Support HDCVI/Analog/IP Video input
  • H.264 dual-stream video compression
  • HCVR5104/5108/5116HE-S3: All channel 1080N/720P realtime or 1080P non-realtime recording
  • HDMI/VGA simultaneous video output
  • 4/8/16 channel synchronous realtime playback, GRID interface & smart search
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
  • ONVIF Version 2.4 conformance
  • Support 1 SATA HDD up to 6TB, 2 USB2.0(16CH 1 USB3.0)
  • 3D intelligent positioning with Dahua PTZ dome camera
  • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)

Compression

Intelligent Features

Interfaces

SystemUI Old WebUI Old SmartPSS DSS Express S
SystemUI Old WebUI Old SmartPSS DSS Express S

Front Panel

Front Panel

HCVR42XXA-S2HCVR4216AN-S2 HCVR52XXA-S2 Front Panel.jpg

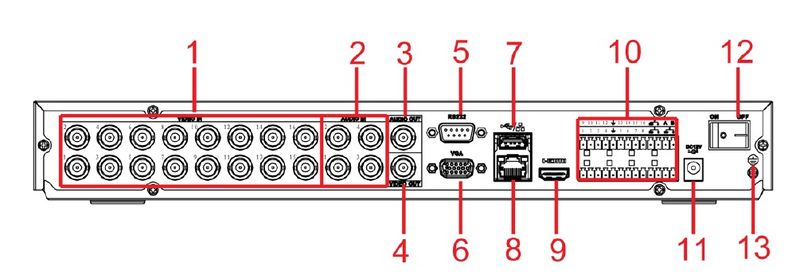

Back Panel

HCVR5216A/HCVR7208A Series

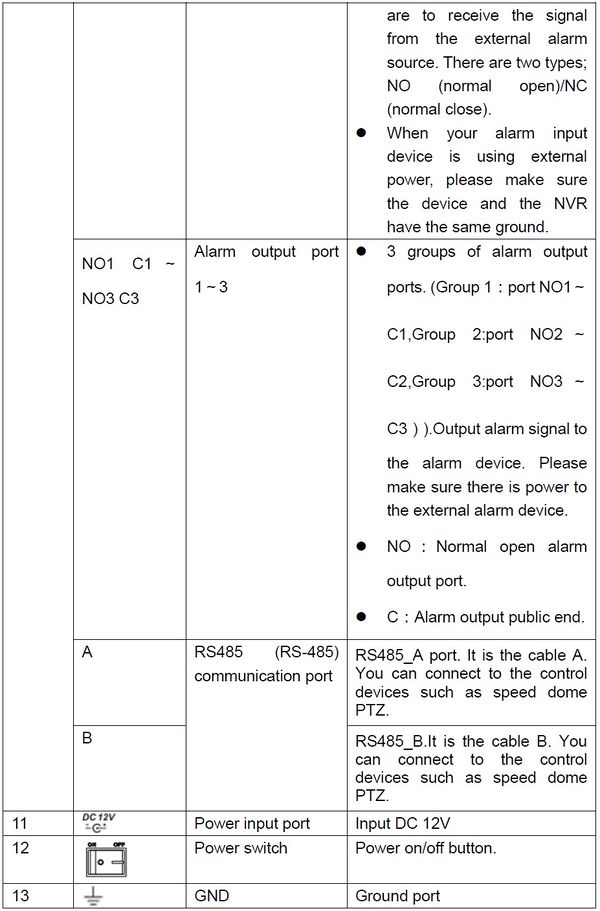

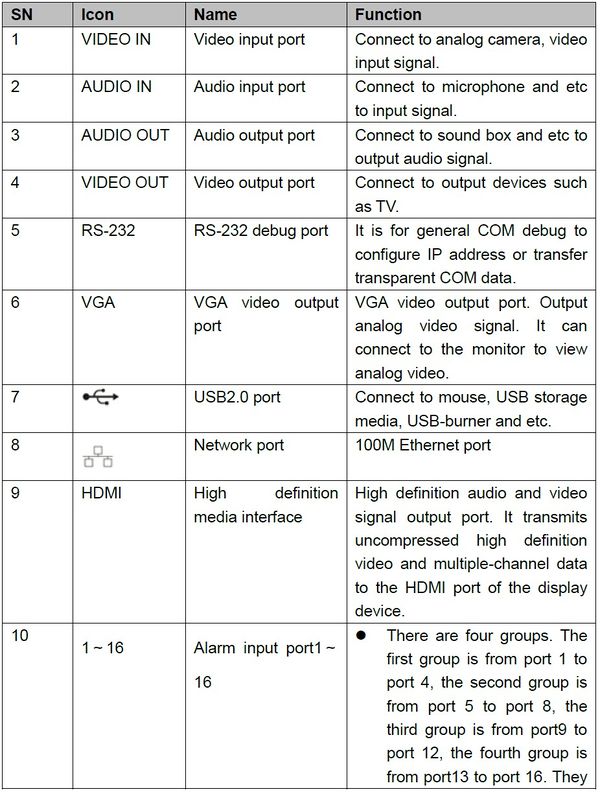

HCVR5216A HCVR7208A Series Back Panel.jpg HCVR5216A Specs1.jpg HCVR5216A Specs2.jpg


Specifications
