DHI-MCVR5104

Model
Specifications Quick Start Guide Manual Firmware
Coming Soon

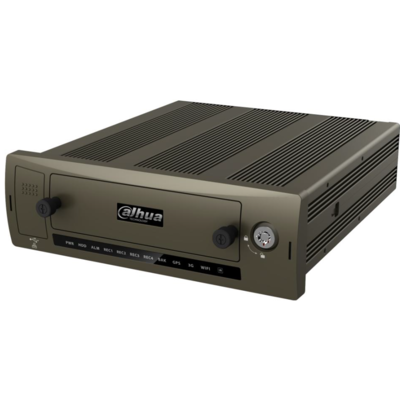

DHI-MCVR5104 DHI-MCVR5104.png
Series: Mobile
Compatible Video: HDCVI/CVBS
HD-CVI/Analog Channels: 4
IP Channels: 0
Video Compression: H.264, MJPEG
HD-CVI/Analog Recording
Resolutions:
Two (2) Channels : 1080p at 30 fps, plus
Two (2) Channels: 720p at 30 fps
IP Recording Resolutions: -
Input Bandwidth: -
Video Output: One (1) VGA and
Two (2) TV
HDD: One (1) SATA Port
One (1) Micro SD Card
eSATA: 0
Audio In: 4
Audio Out: 1
Alarm In: 7
Alarm Out: 2
Network: 1 Port (10/100 Mbps)
USB: 2 USB 2.0 Ports
Power: 6 V to 36 V
<15W (No HDD)
IVS: No
POS: No
Spot Out/ Video Matrix: No

Features

  • Supports HDCVI/Analog Video Input
  • Dual-stream Recording
  • H.264 Video Compression
  • Two-channel 1080p and Two-channel 720p Real-time Recording
  • Simultaneous VGA and TV Video Output Channels
  • Aviation Connectors for Increased Signal Stability
  • Optional WiFi and GPS Modules Available
  • Multiple Network Monitoring Applications: Web Views, CMS, DSS
  • 5-year Warranty (for products sold through an authorized Dahua dealer)
